B245/B276/B277/B268/B269 Service Manual 18-Jan-06
88
By-Pass Paper Size Switch

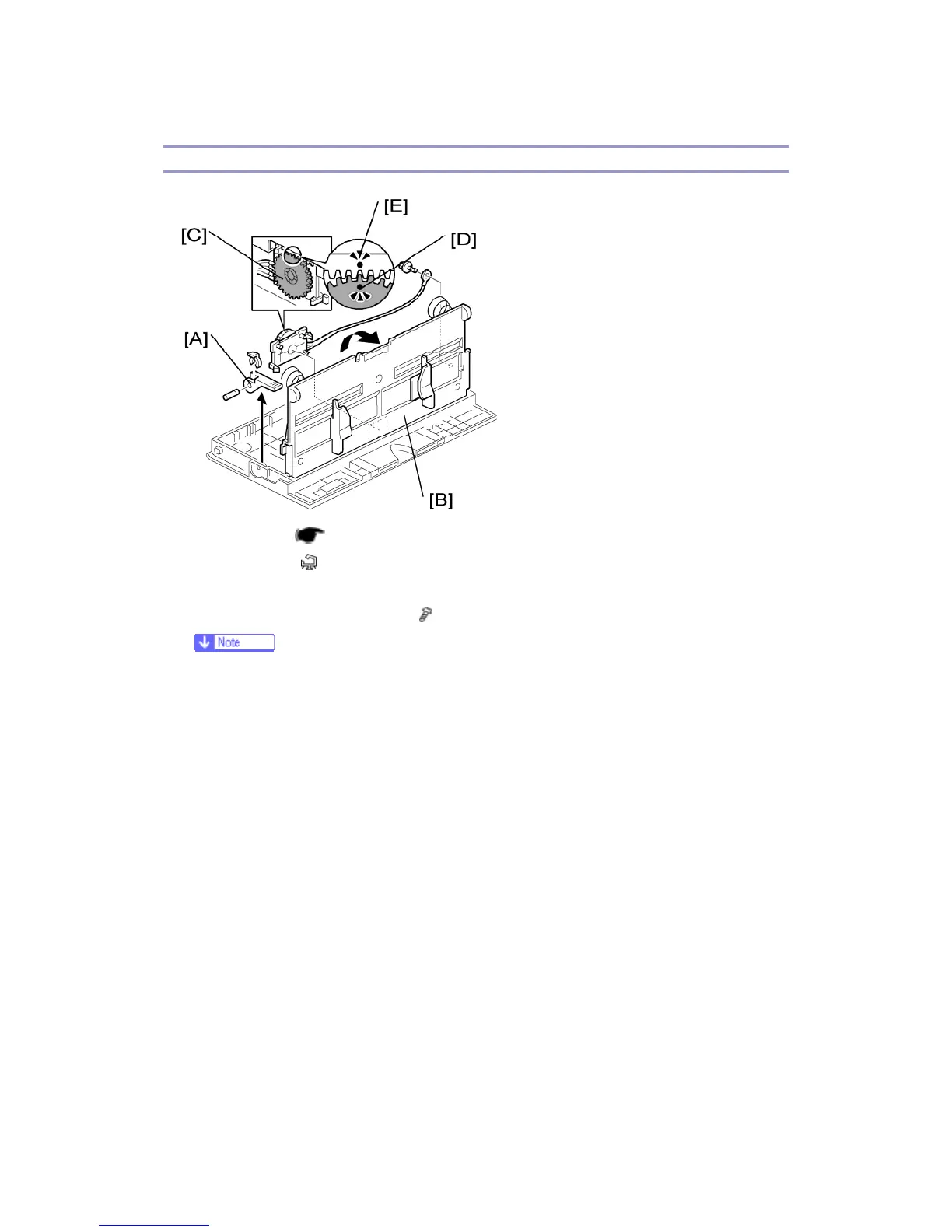

1. By-pass tray (
p.58)
2. Tray lever [A] (
x 1, 1 pin)
3. Lift the upper tray [B]
4. By-pass paper size switch [C] (
x 1)
When reinstalling the switch: Move the paper guides to their middle position
(about halfway between fully open and fully closed), and install the round gear
so that the hole in the gear [D] aligns with the peg [E] on the sliding gear.
