Ricoh K-C3 - Lower Tray Heater (Two-Tray Model Only)

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
35
Lower Tray Heater (Two-tray Model Only)

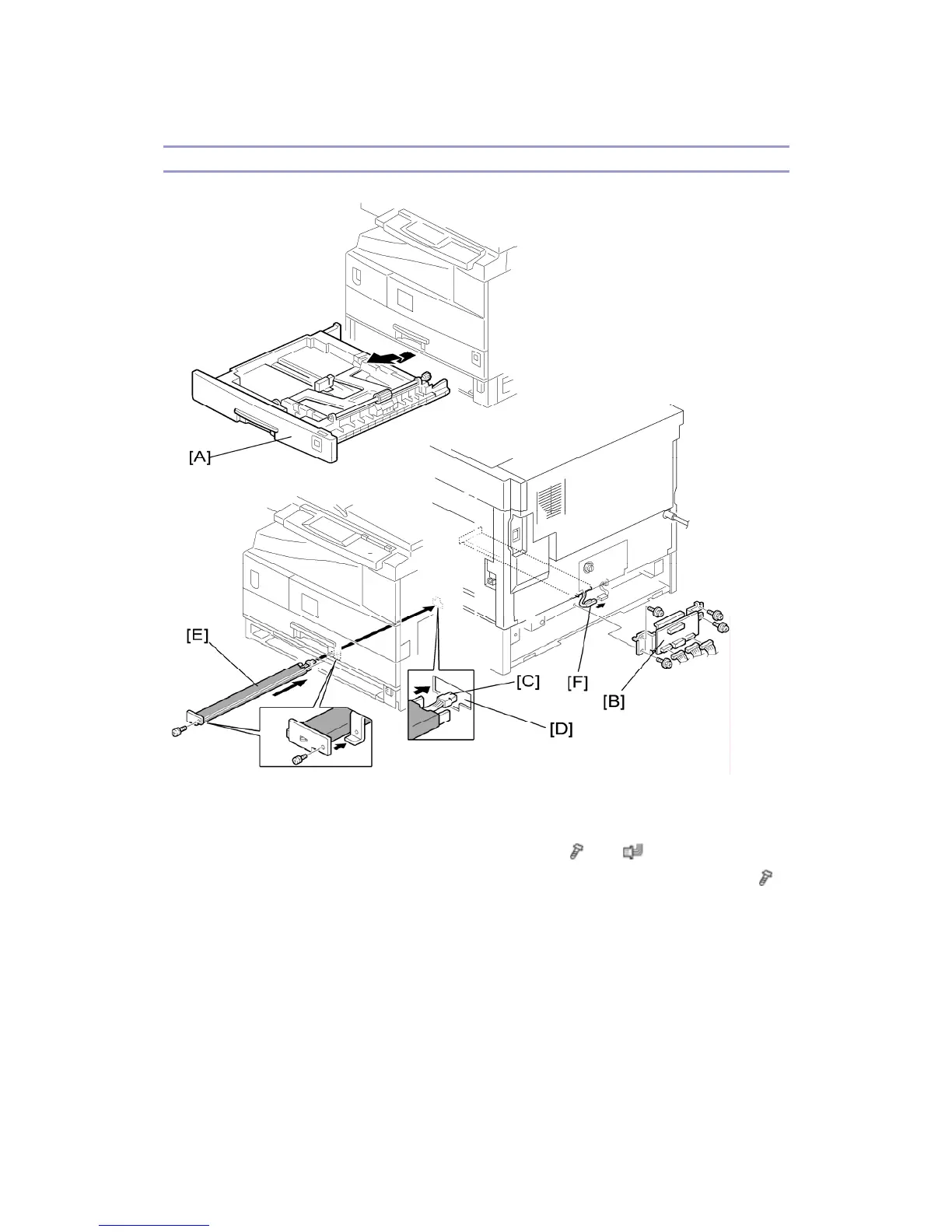

1. Remove the 2nd tray cassette [A].
2. Remove the rear lower cover.
3. B277/B269 only: Remove the DCB [B] with bracket (
x 4, x 3).
4. Pass the connector [C] through the opening [D] and install the tray heater [E] (
x
1).
5. Join the connectors [F].
6. Reinstall the 2nd tray cassette, DCB, and rear lower cover.
