Toner Recycling

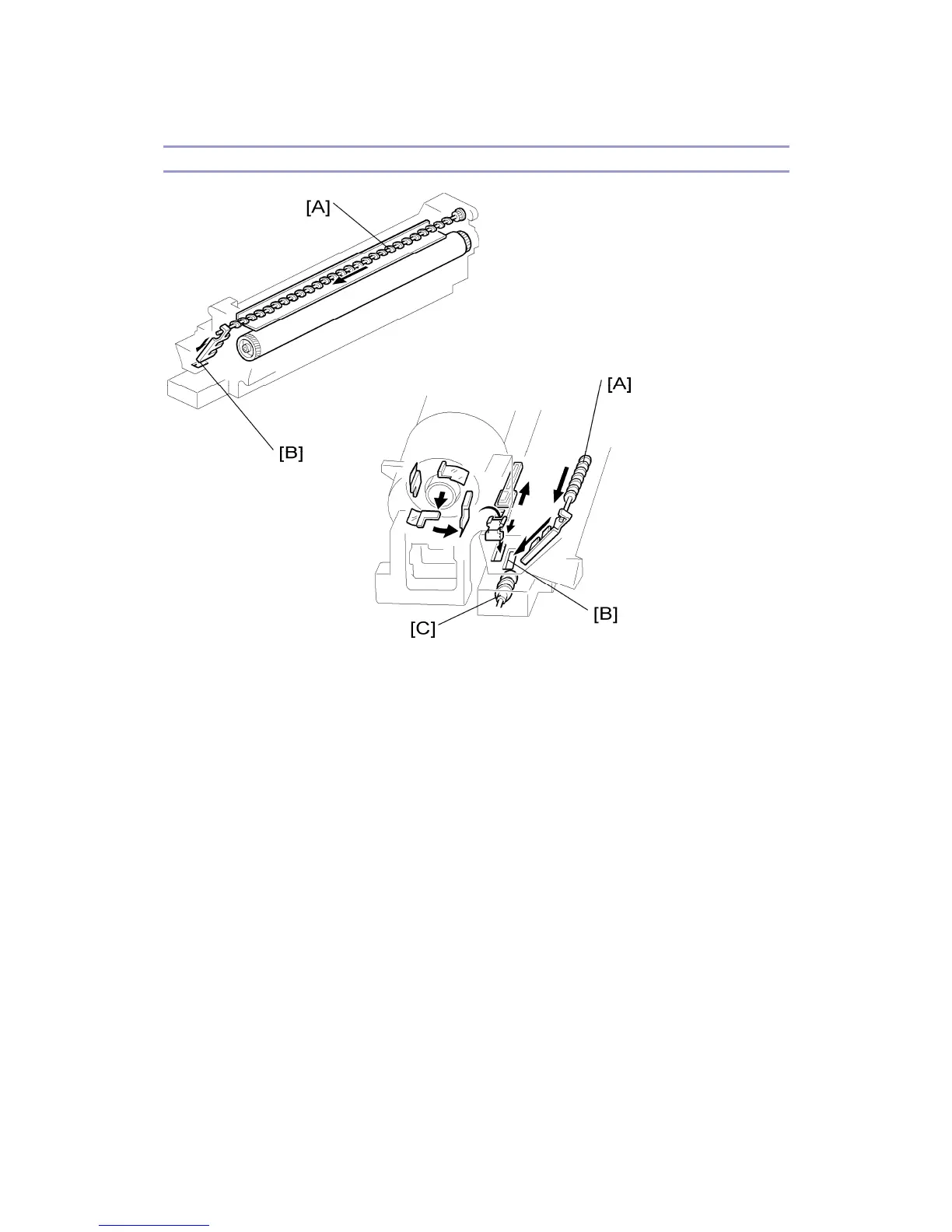

Toner picked up by the toner collection coil [A], is transported to the opening [B] in the side of
the PCU. Then, this toner falls into the development unit with new toner coming from the
toner bottle and it is all mixed together by mixing auger 1 [C] and used again.
