B245/B276/B277/B268/B269 Service Manual 18-Jan-06
79

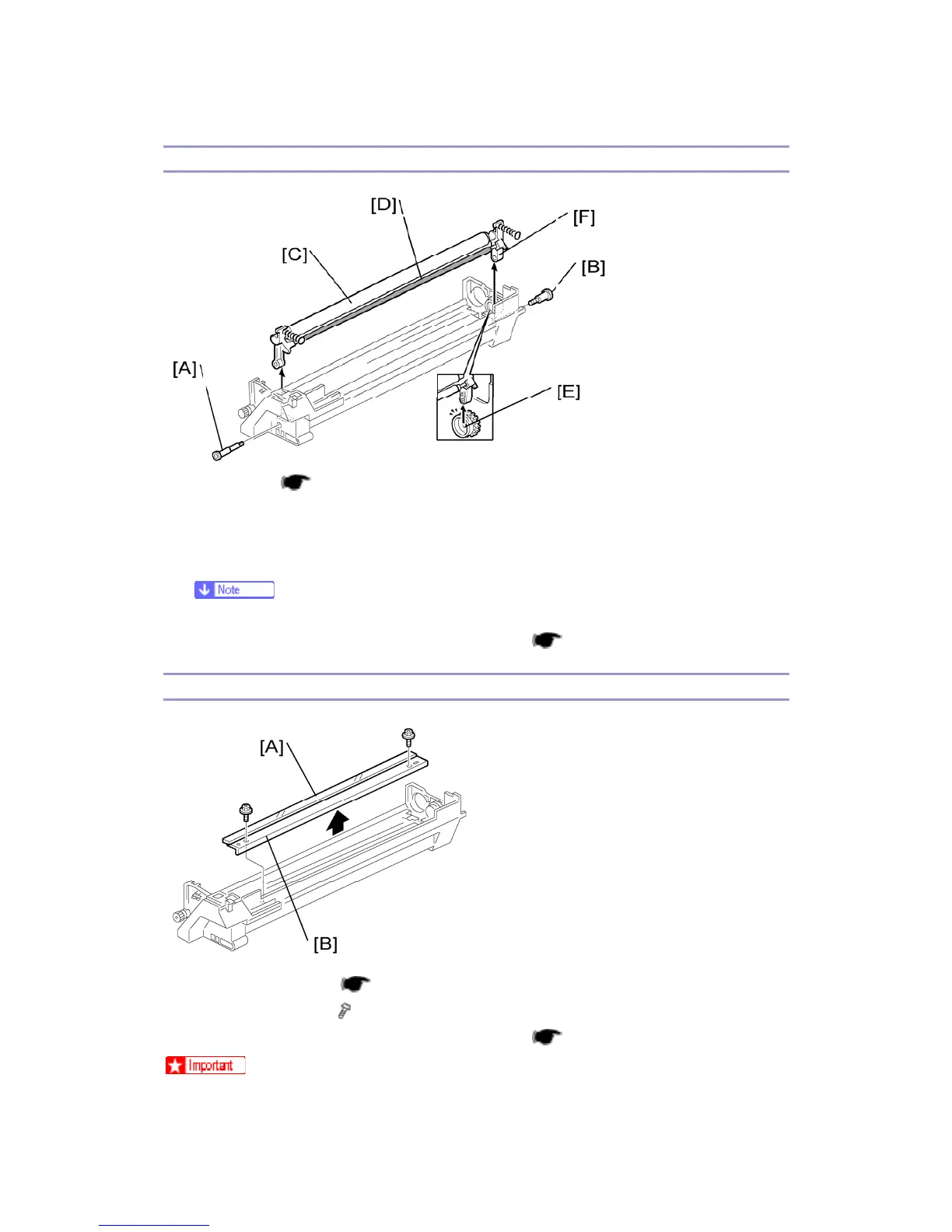

Charge Roller and Cleaning Brush
1. OPC Drum (
Previous procedure)
2. Holding pin [A]
3. Stepped screw [B]
4. Charge roller [C] and cleaning brush [D] (with the holders and springs)
Turn the gear [E] (as necessary) so that the rear holder [F] comes out.
5. When reassembling, adjust the image quality (
p.81).
Cleaning Blade
1. Drum charge roller (
Previous procedure)
2. Cleaning blade [B] (
x 2)
3. When reassembling, adjust the image quality (
p.81).
Reassembling
To Next Page
