Ricoh K-C3 - Duplex Unit (Duplex Models B269;B277 Only); Duplex Exit Sensor; Duplex Entrance Sensor

B245/B276/B277/B268/B269 Service Manual 18-Jan-06
101

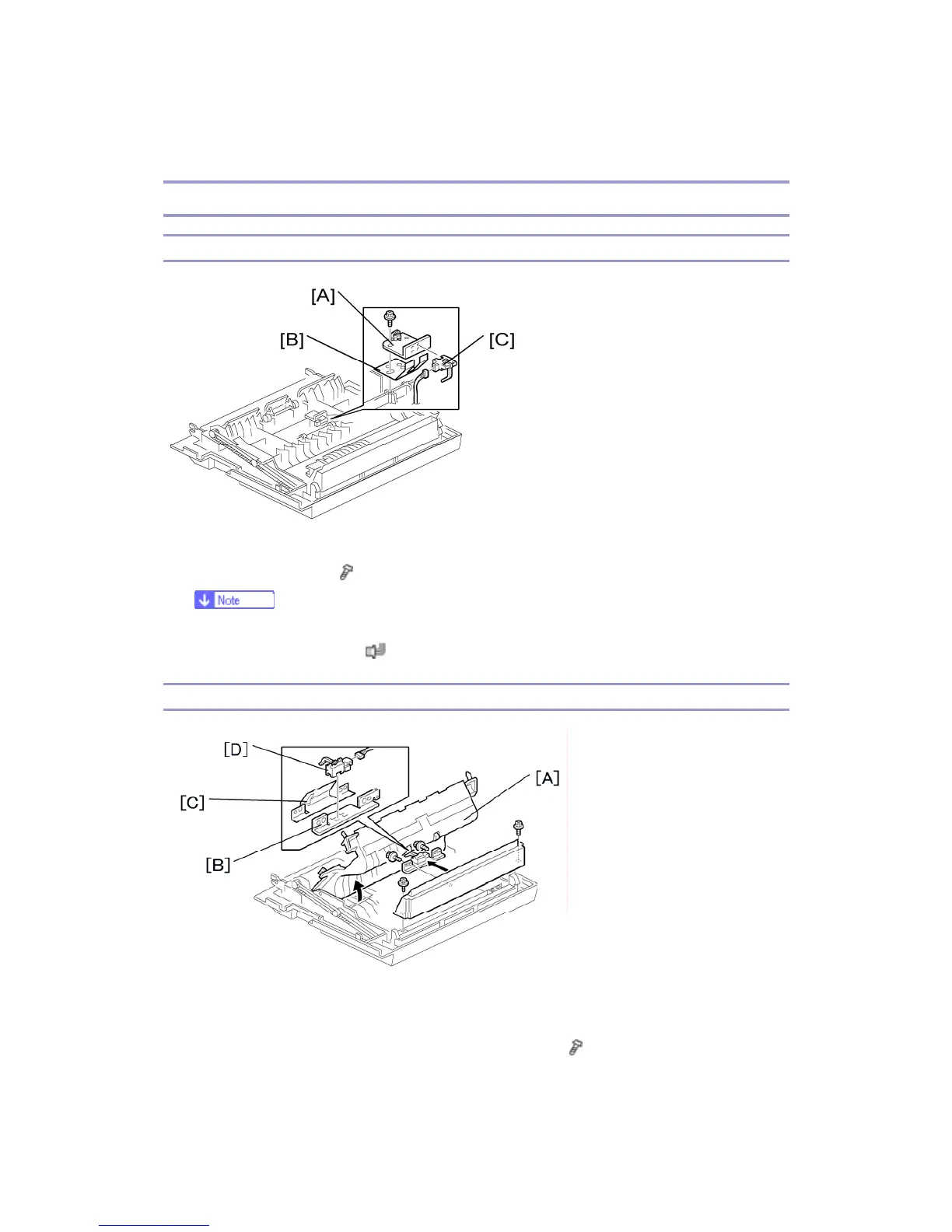

Duplex Unit (Duplex Models B269/B277 Only)
Duplex Exit Sensor
1. Open the right door.
2. Sensor bracket [A] (
x 1)
 Another bracket [B] comes off with the sensor bracket.
3. Duplex exit sensor [C] (
x 1)
Duplex Entrance Sensor
1. Open the right door.
2. Lift the duplex guide [A].
3. Entrance sensor bracket [B] and bracket cover [C] (
x 2)
4. Duplex entrance sensor [D]
