Feed In and Exit Mechanism

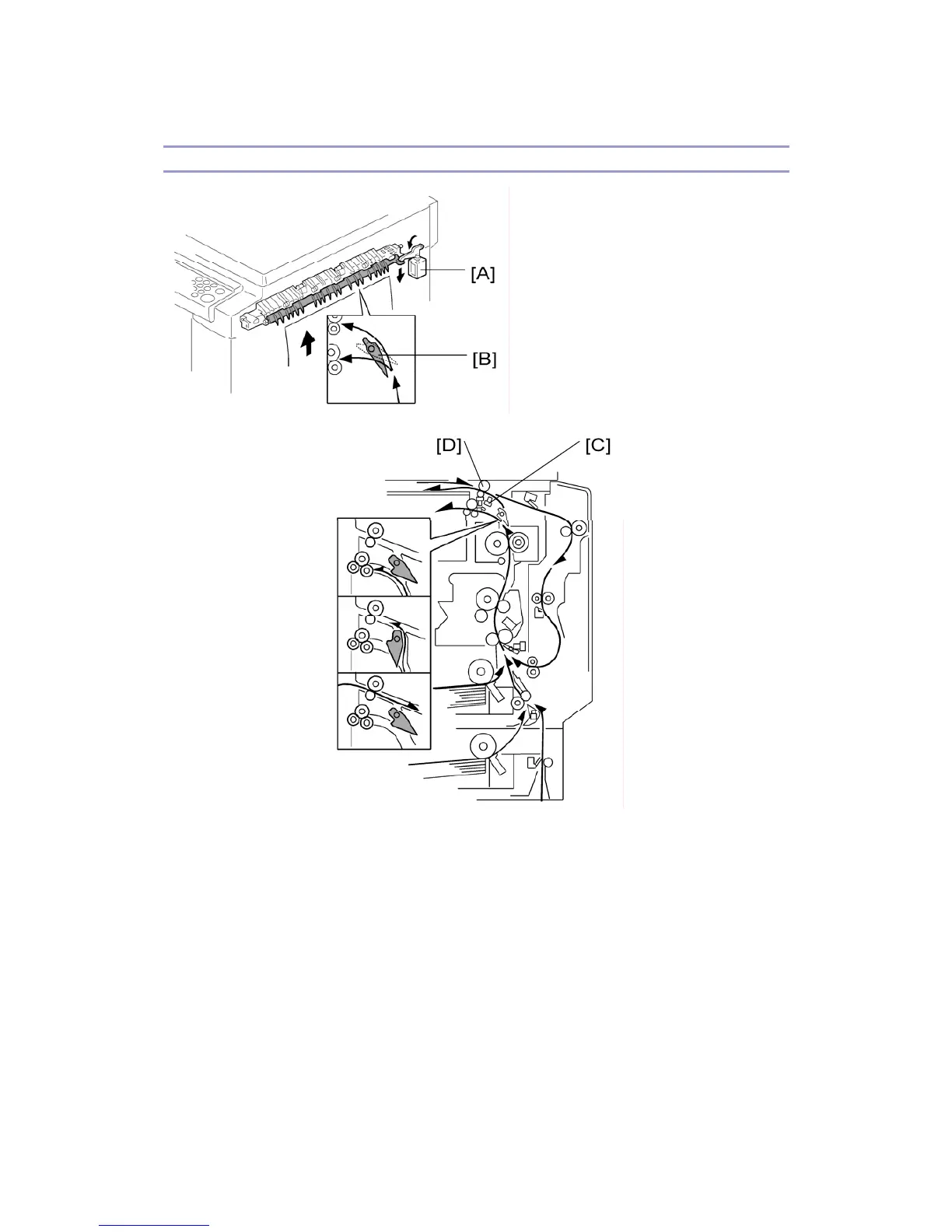

During duplex copying, the inverter gate solenoid [A] switches on and the junction gate [B]
switches over to direct the paper to the inverter. When the paper trailing edge reaches the
duplex inverter sensor [C], the inverter roller [D] reverses its rotation direction and the paper
goes to the duplex unit. The paper is then sent to the mainframe registration rollers to print
the reverse side.
If there are two or more copies being made with A4/8
1
/
2
" x 11" SEF (or smaller), the next
sheet waits at the registration sensor for the current sheet to exit the inverter.
