Drum Charge
Overview

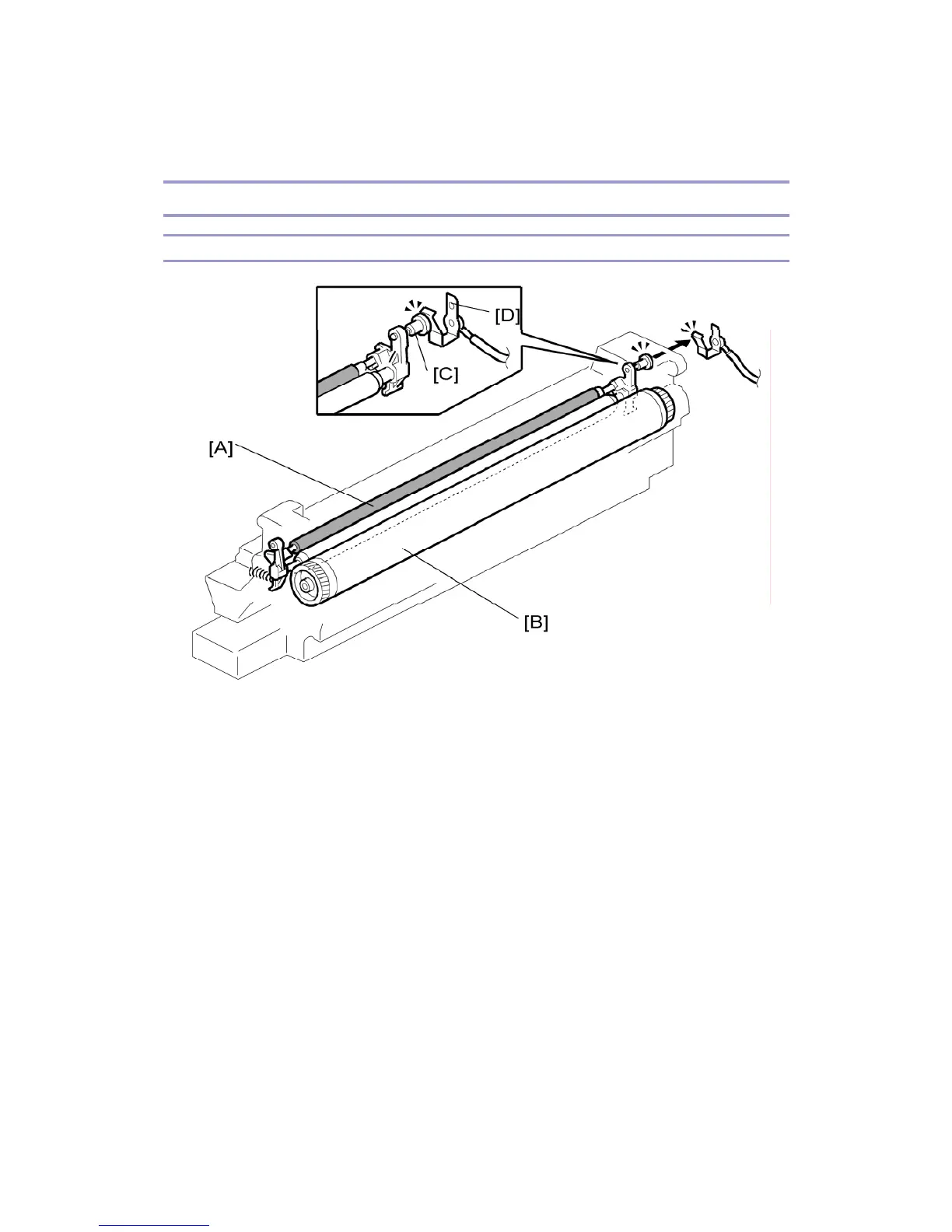

This copier uses a drum charge roller to charge the drum. The drum charge roller [A] always
contacts the surface of the drum [B] to give it a negative charge of –950 V.
The high voltage supply board gives a negative charge of –1700 V to the drum charge roller
through the screw [C] and terminal plate [D]. This voltage can be changed using SP 2001 1.
