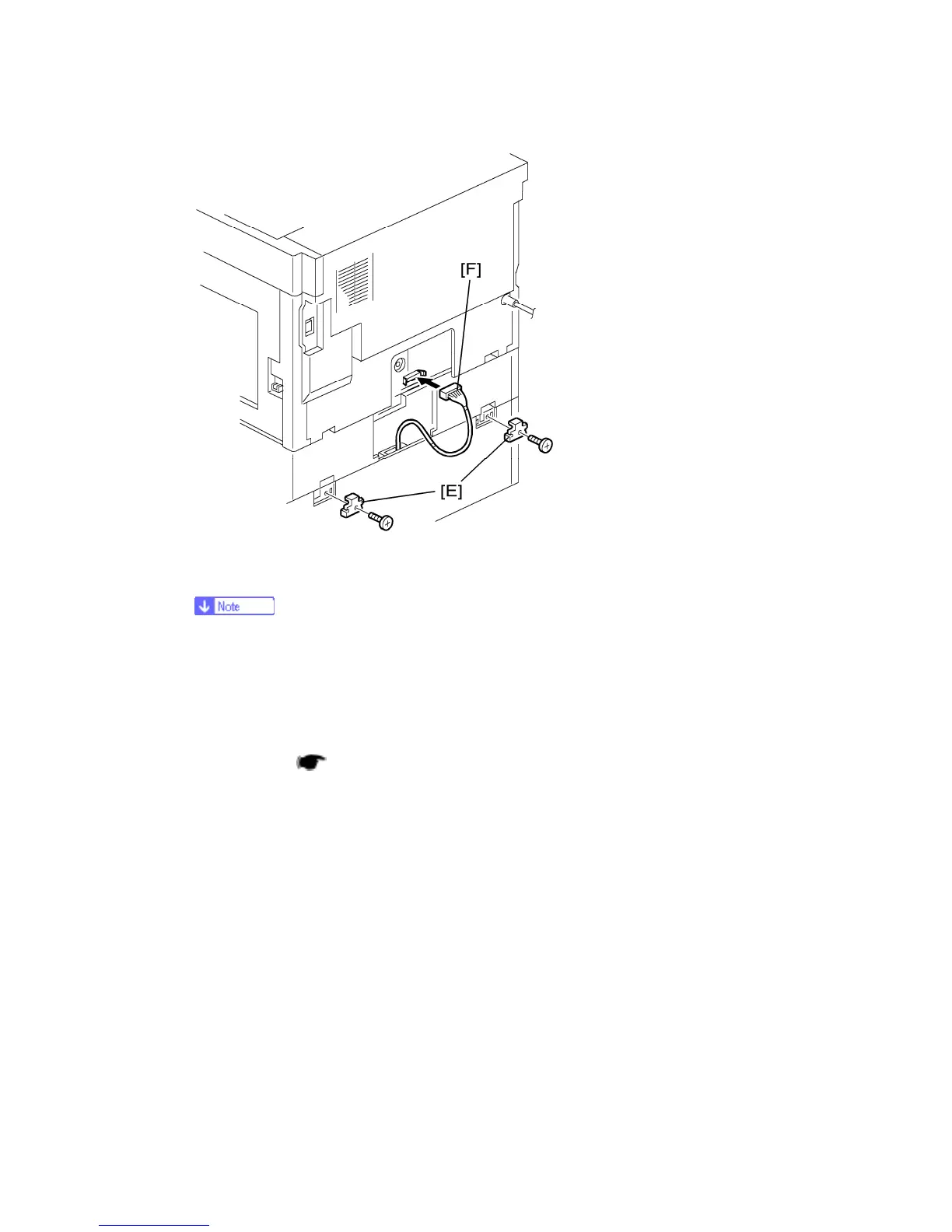

7. Install the two brackets [E]. (1 stepped screw each).
8. Connect the connecting harness [F] to the copier.
There are cutouts for the plugs on both sides. The left side has one cutout, and
the right side has two.
9. Reinstall the cover removed in step 2.
10. Load the paper in the paper tray and make full size copies from tray. Check if the
side-to-side and leading edge registrations are correct. If they are not, adjust the
registrations (
p.111).
