B245/B276/B277/B268/B269 Service Manual 18-Jan-06
115
B: Side-to-side registration
 Make a temporary test chart as shown above, using A3/11" x 17" paper.
1. Place the temporary test chart on the ADF and make a copy from one of the feed
stations.
2. Check the registrations, and adjust as necessary with the appropriate SP modes,
as follows.
SP mode
Side-to-side registration SP 6006 1
Leading edge registration SP 6006 2
Blank margin for the trailing edge SP 6006 3
Side-to-side registration (Duplex: back side) SP 6006 4

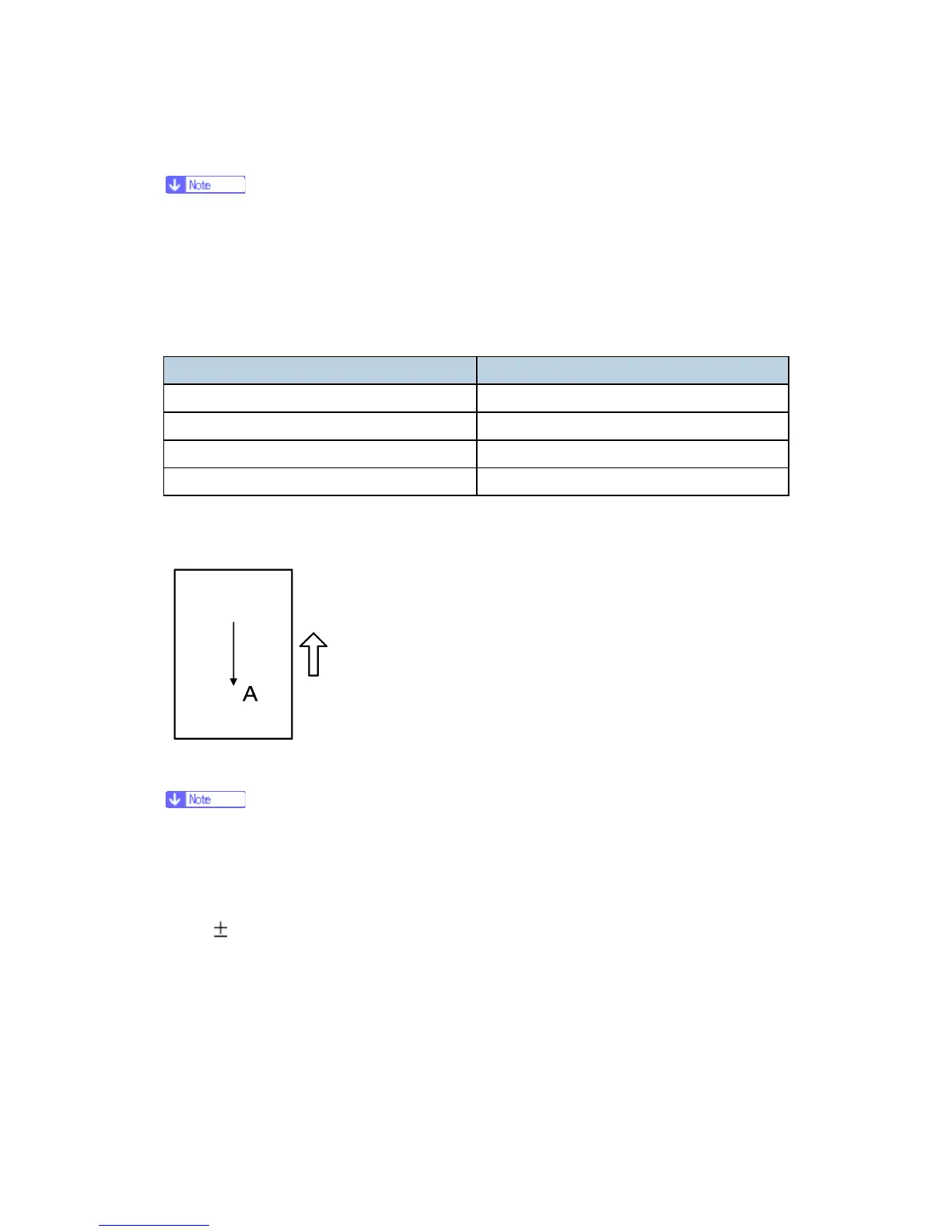

- Sub-scan Magnification -
A: Sub-scan magnification
 Make a temporary test chart as shown above, with A3/11" x 17" paper.
1. Place the temporary test chart on the ADF and make a copy from one of the feed
stations.
2. Check the registration, and if necessary adjust it with SP 6006 5. The specification
is
1.0%.
