B245/B276/B277/B268/B269 Service Manual 18-Jan-06
14

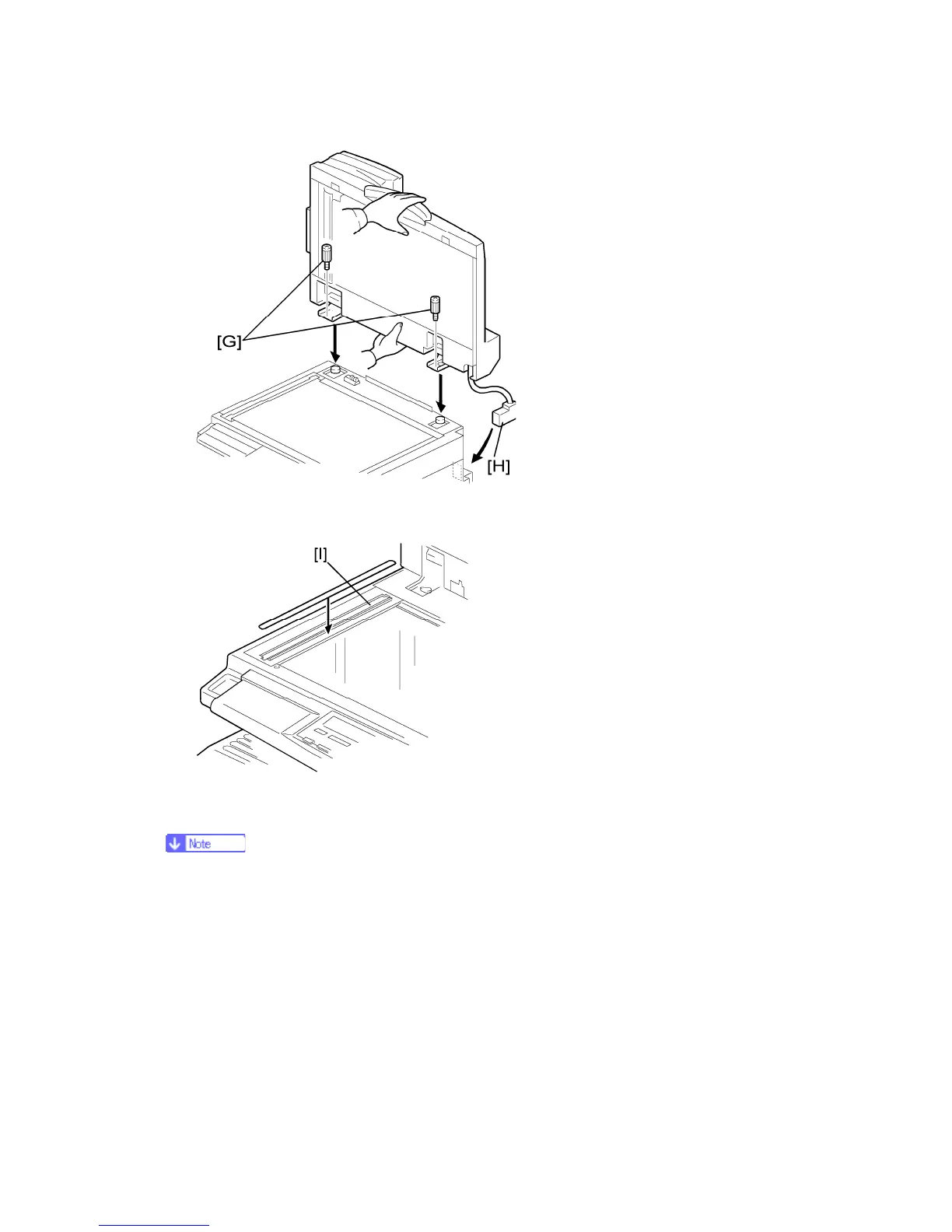

7. Secure the ARDF unit with the knob screws [G].
8. Connect the cable [H] to the copier.
9. Attach the appropriate original size decal [I] as shown.
10. Attach an attention decal to the top cover.
The attention decals in the package are written in different languages.
To Next Page
