B245/B276/B277/B268/B269 Service Manual 18-Jan-06
26

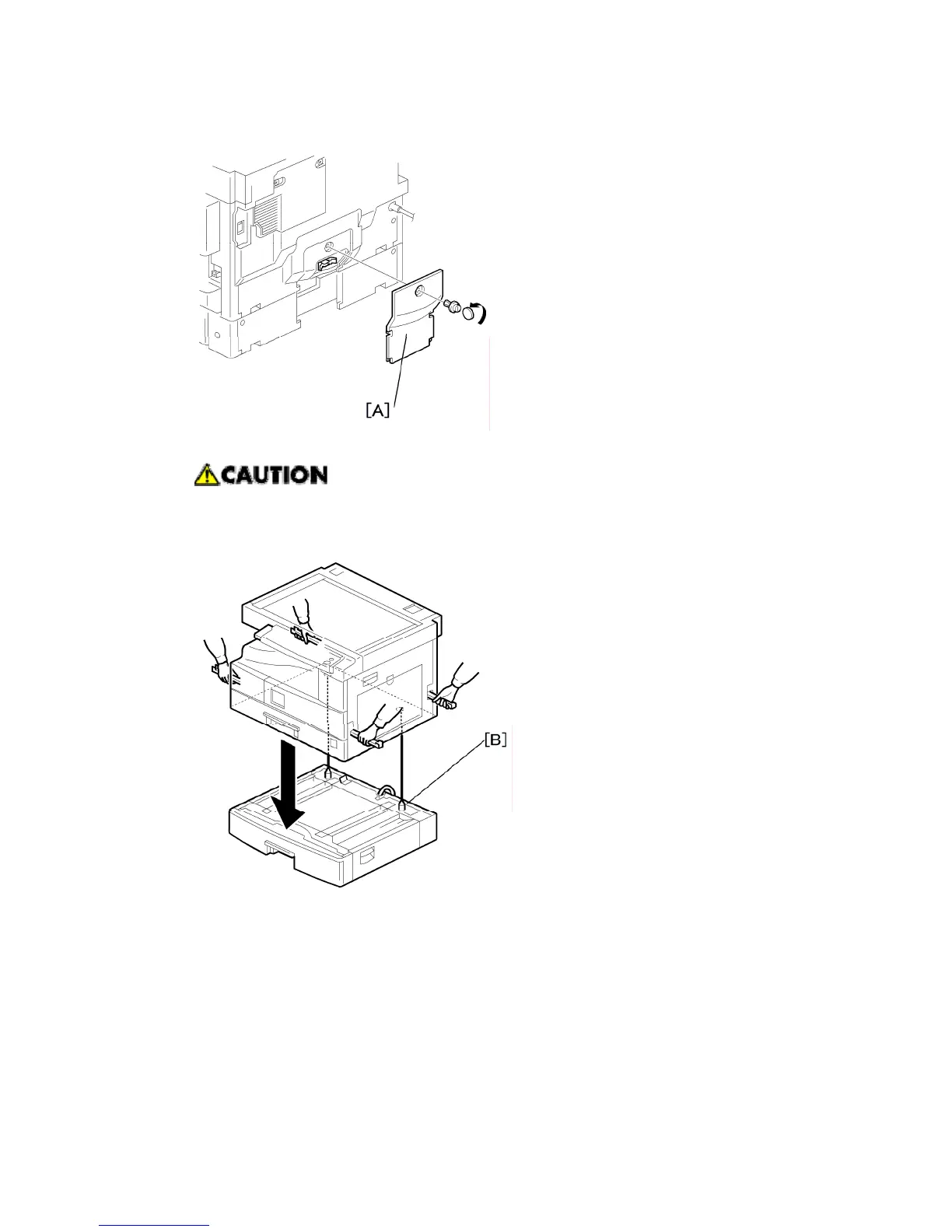

2. Remove the cover [A] (1 rivet).
 Before placing the copier on the paper tray unit, make sure that the harness [B]
is safe. The paper tray unit does not function properly if the harness is damaged.
3. Set the copier on the paper tray unit.
