B245/B276/B277/B268/B269 Service Manual 18-Jan-06
64

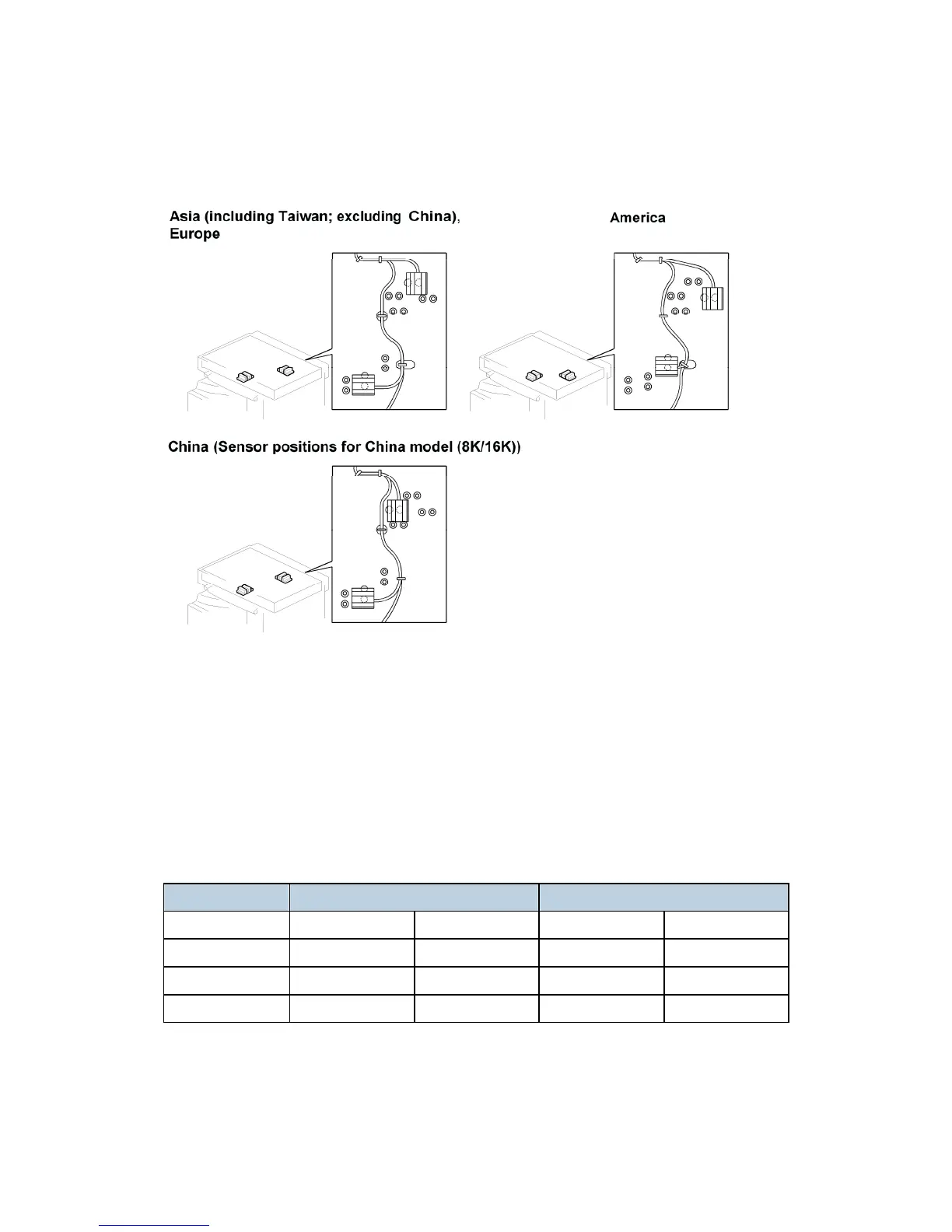

- Sensor Positions -
Sensor positions vary according to regions as shown below.
- Sensor Positions for China Model (8K/16K) -
This procedure is for China models only. You must rearrange the positions of the original
width and length sensors for the copier to detect the following original sizes:
8K SEF (270 x 390 mm)
16K SEF (195 x 270 mm)
16K LEF (270 x 195 mm)
After you have rearranged the positions, the sensors work as listed in the table. Rearrange
the sensor positions as follows:
Original Size Length Sensors Width Sensors
8K-SEF L1 L2 W1 W2
16K-SEF X X X O
16K-LEF X O O O
16K-SEF O O X O
1. Specify SP mode settings:
Select SP 4305 1, and specify 2 (=Yes). The machine will detect 8K/16K rather than
