B245/B276/B277/B268/B269 Service Manual 18-Jan-06
69

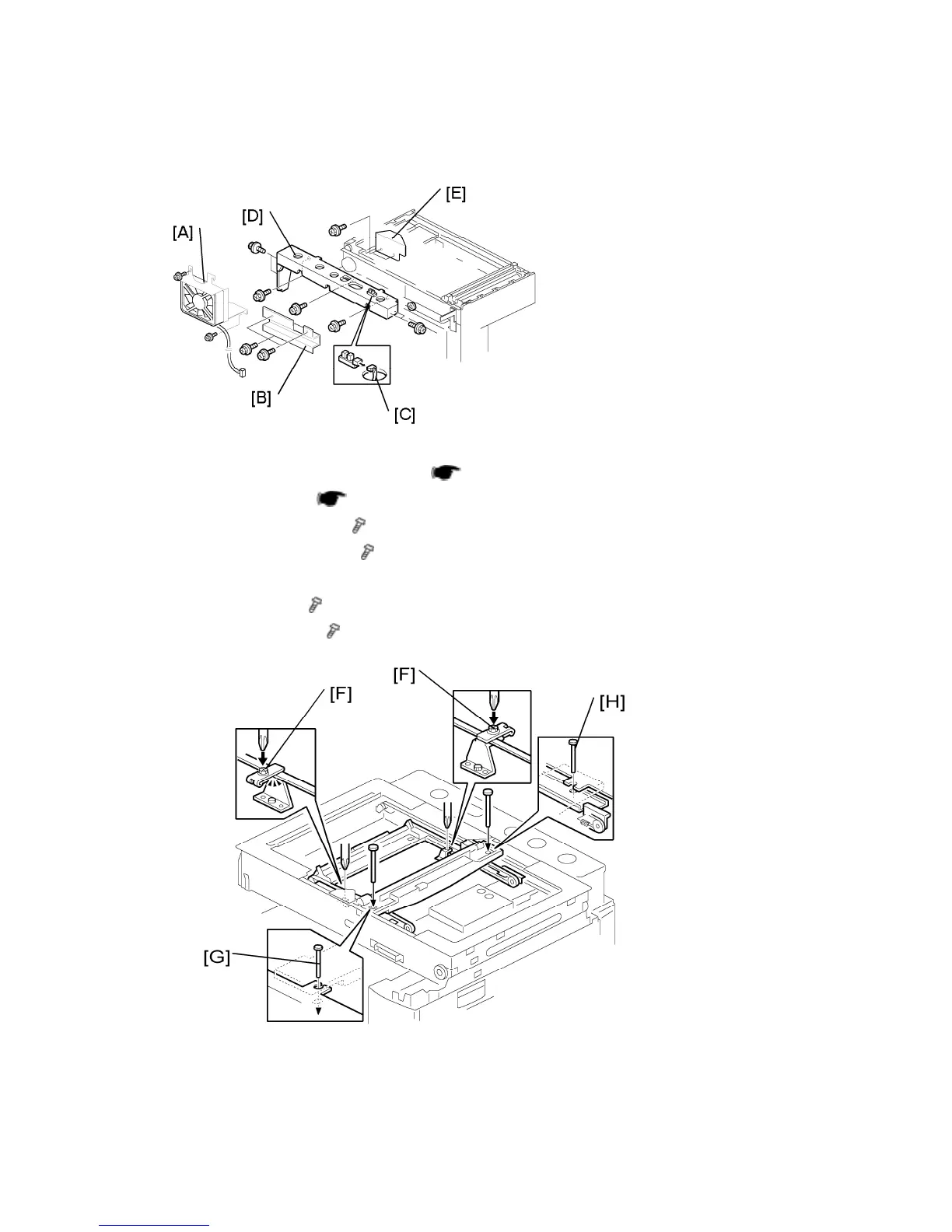

- Adjusting the Second Scanner Contact Points -
1. A(R)DF or platen cover
2. Operation panel, top rear cover (
p.55).
3. Exposure glass (
p.61)
4. Rear exhaust fan [A] (
x 2)
5. Controller bracket [B] (
x 3)
6. Disconnect the platen-cover-sensor connector [C].
7. Rear frame [D] (
x 7)
8. Scale bracket [E] (
x 2)
9. Loosen the 2 screws [F].
10. Slide the 2nd scanner to align the following holes and marks
To Next Page
