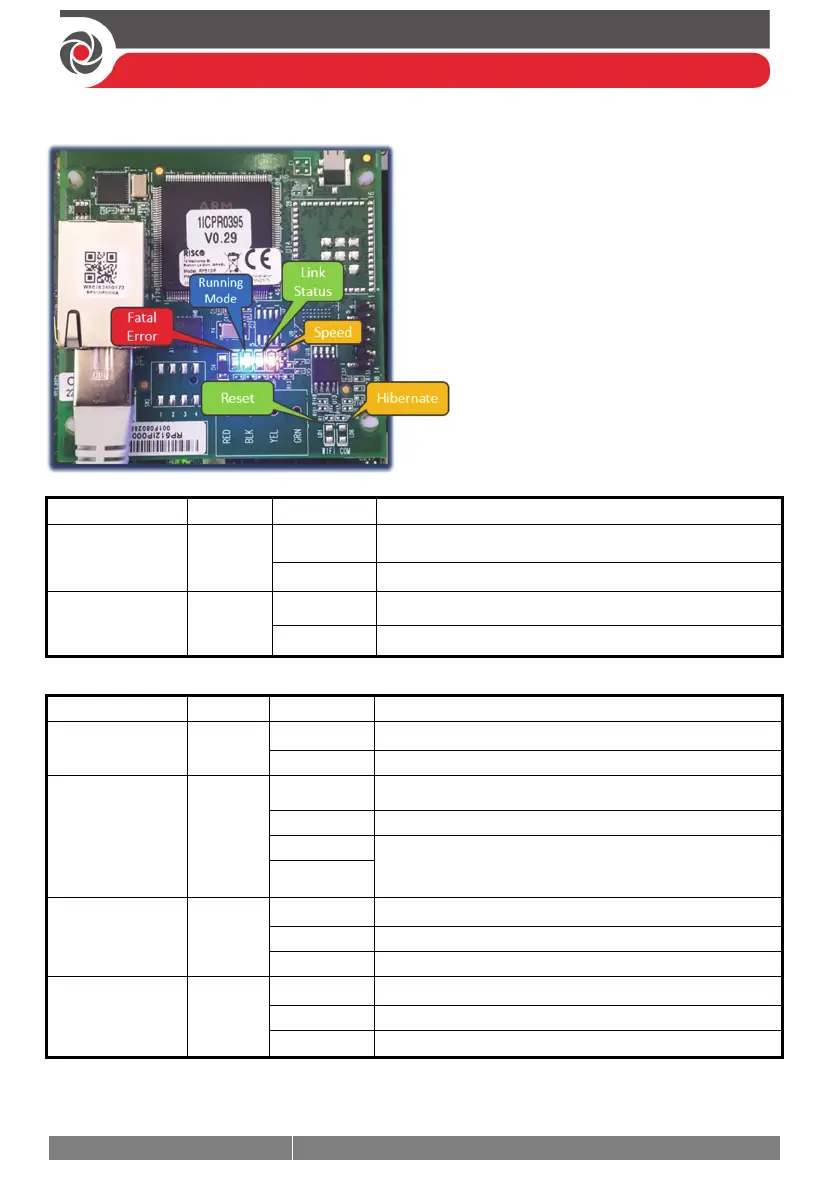

IP Module LEDs
LED/Function Color State Status
Reset LED
Green
ON Normal operation
OFF
Reset ON / boot
Hibernate LED
Orange
ON Normal operation
OFF Hibernate ON / boot
LED/Function Color State Status
Speed LED
Orange
ON 100 Mb/s / boot
OFF 10 Mb/s
Link status
LED
Green
ON uplink
OFF downlink
Blink slow
Transmit and receive activity
Blink fast
Running mode
LED
Blue
ON Normal operation
OFF Not ready (power-up)
Blink slow Boot
Fatal error
LED
Red
ON Error
OFF Normal operation
Blink slow Boot
