Risco ProSYS Plus - Wiring Utility Outputs; Wiring Utility Output 1; Placing the JMP 2 (UO1) Jumper

11
/
2017 Page 35 5IN2413 B

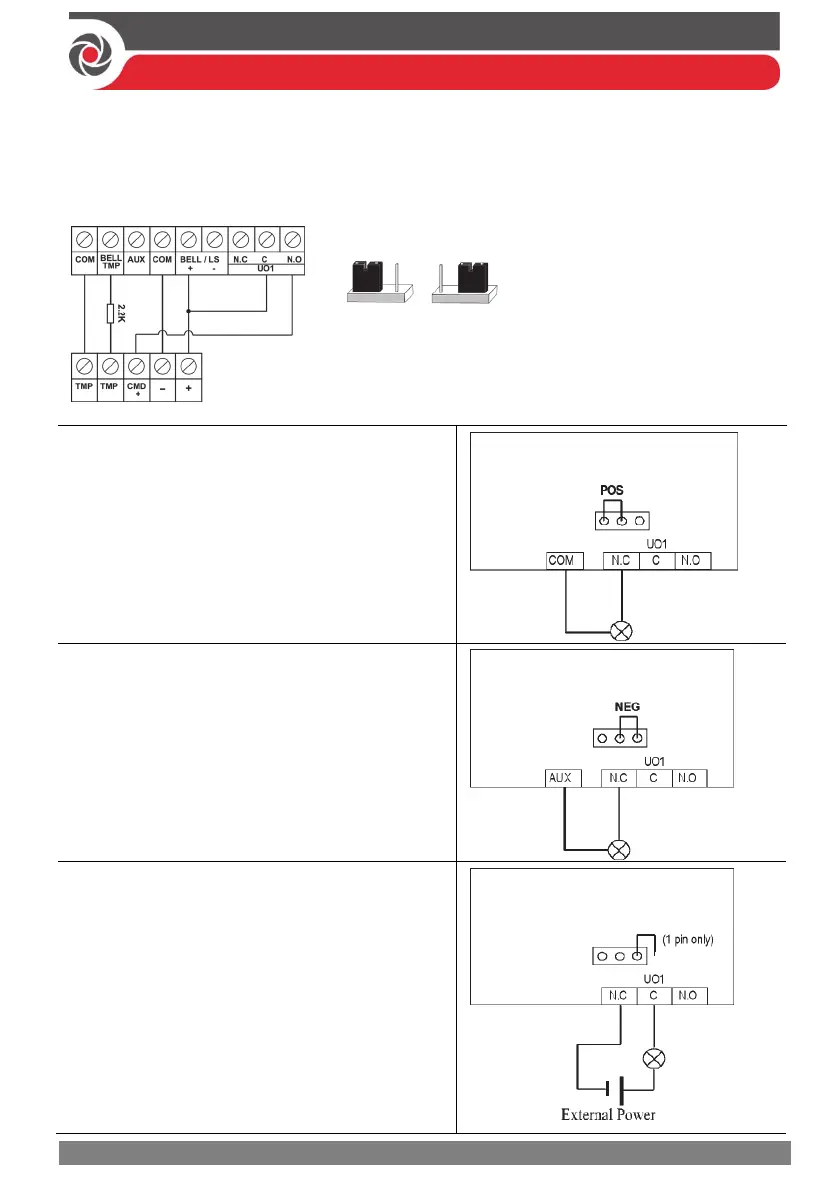

Wiring Utility Outputs
Utility outputs such as UO1 (Utility Output 1) are used to activate external
self-powered devices (such as a siren):
Wiring Utility Output 1
Placing the JMP 2 (UO1) Jumper
POS NEG
The JMP 2 jumper connector determines the
UO1 connection behavior. UO1 is normally used
for an external siren connection, as follows:
Positive (POS): When the JMP 2 jumper is
placed on POS, the C terminal on UO1
receives 13.8V.
NOTE: In this case, the maximum
combined current draw from the two AUX
terminals plus UO1 and UO2 is 750mA
Negative (NEG): When the JMP 2 jumper
is placed on NEG, the C terminal on UO1
receives COM.
[Default] If the JMP 2 jumper is placed
only on 1 pin (or if the jumper is not
placed on any pin) the UO1 acts as a dry
contact.
ProSYS Plus Main Panel
ProSYS Plus Main Panel
ProSYS Plus Main Panel
JMP 2
JMP 2
JMP 2
