â—† NOTE: The crankshaft bearings in the ignition
housing are lubricated via the oil duct I.
Sealing of the oil duct at the joining face
between crankcase and ignition hous-
ing is by an O-ring O 5x2.
â—† NOTE: At the backside of the ignition housing a
thrust washer of the intermediate starter
gear may stick.
Visually check the sealing surfaces. Clean oil duct P with
compressed air and check for free passage. Check dimen-
sion of bore { (dimension E) of bearing bush for crank-
shaft support },(dimension R) , see Chapter 15).
dimensions new wear limit
See Wear Limits, Chapter 15).

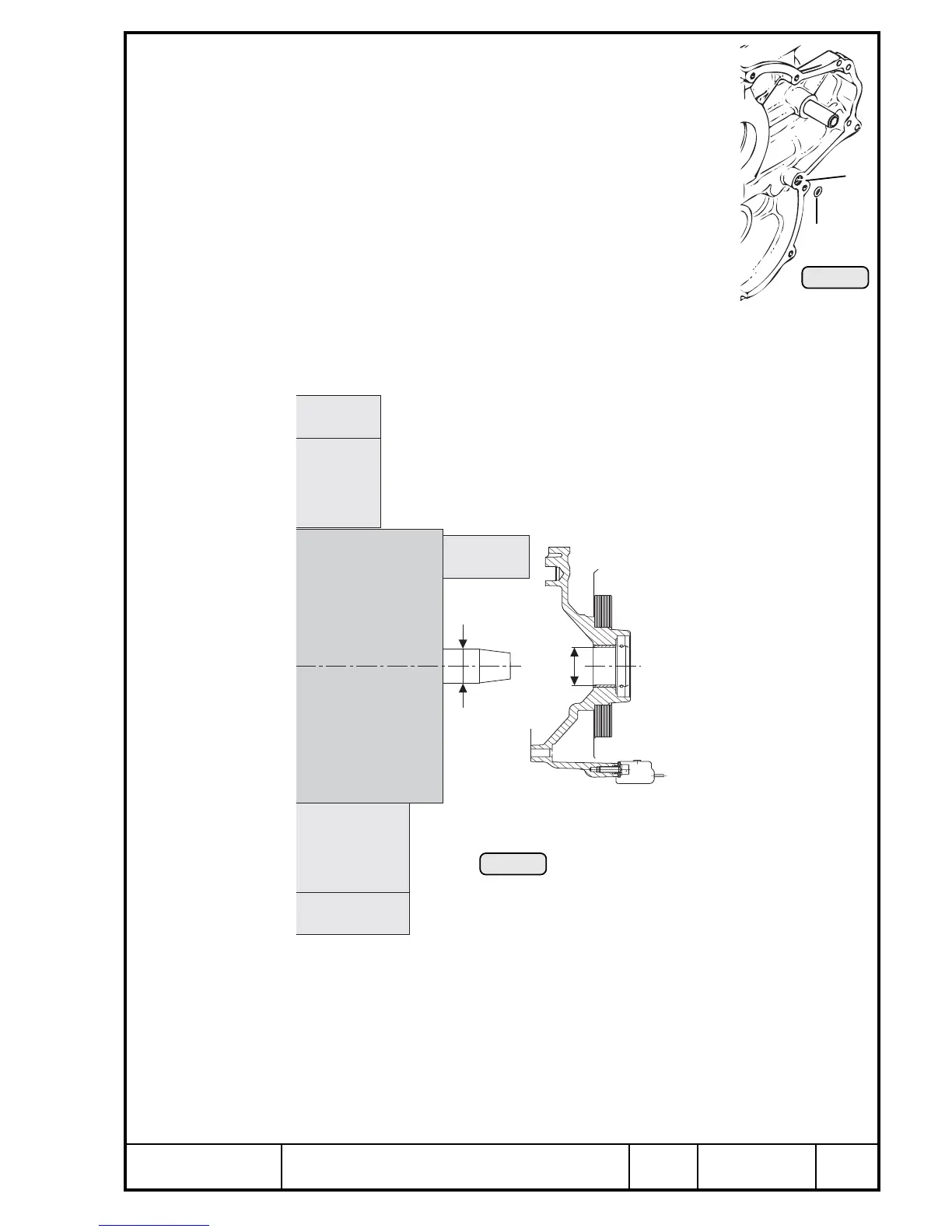

Pic. 112
magnetseitig /
magneto side
Pic. 113
E
R
00084
00382
I
O
