Section 04 FUEL SYSTEM
Subsection 02 (FUEL TANK AND FUEL PUMP)
FUEL TANK LEAK T
EST
PRESSURE
TIME WITHOUT
PRESSURE DROP
21 kPa (3 PSI)
10 minutes
If the pressure drops, locate fuel leak(s), repair/re-
place leaking component(s) and retest.
Possible leak areas are:
– Filler neck, hose and connections
– Fuel tank
– Fuel tank neck
– Fuel pump gasket
– Fuel pump check valve (unlikely).
To locate a leak, check for a fuel smell or leaking
fuel.
If a leak is not visible, spray a s oapy water solu-
tion on components to ease locating the leak(s);
bubbles will indicate the leak location(s).
NOTE: If the pressure drops and no leak has been
found, it is possibly fuel pump check valve.
NOTICE
When the fuel system leak test is
completed, thoroughly rinse all components
of the soapy water solution with clear water.
A soapy water residue may cause premature
deterioration and must be rinsed away.
WARNING
If a leak is found, do not start the engine.
Wipe off any fuel that leaked and ventilate
the hull thoroughly to remove any accu-
mulated fuel vapors. Do not use electric
powered tools on watercraft unless system
has passed the leak test.
10. Remove test cap.
TESTING FUEL PUMP PRESSURE
Preparation
The pressure test will show the available pressure
at the fuel pump outlet. It validates the pressure
regulator, the fuel pump and check valve a nd it
tests for leaks in the system.
1. Ensure
the battery is fully charged, refer to
CHARG
ING SYSTEM
.
2. Ensure hoses and fittings are not leaking. Re-
pair any leaks.
3. Ensure there is enough gas in the fuel tank.
4. Disc
onnect the pressure outlet hose from the
fuel
pump.
WARNING
Cover the fuel line connection with an ab-
sorbent shop rag. Wipe off any fuel spillage
inside the bilge.

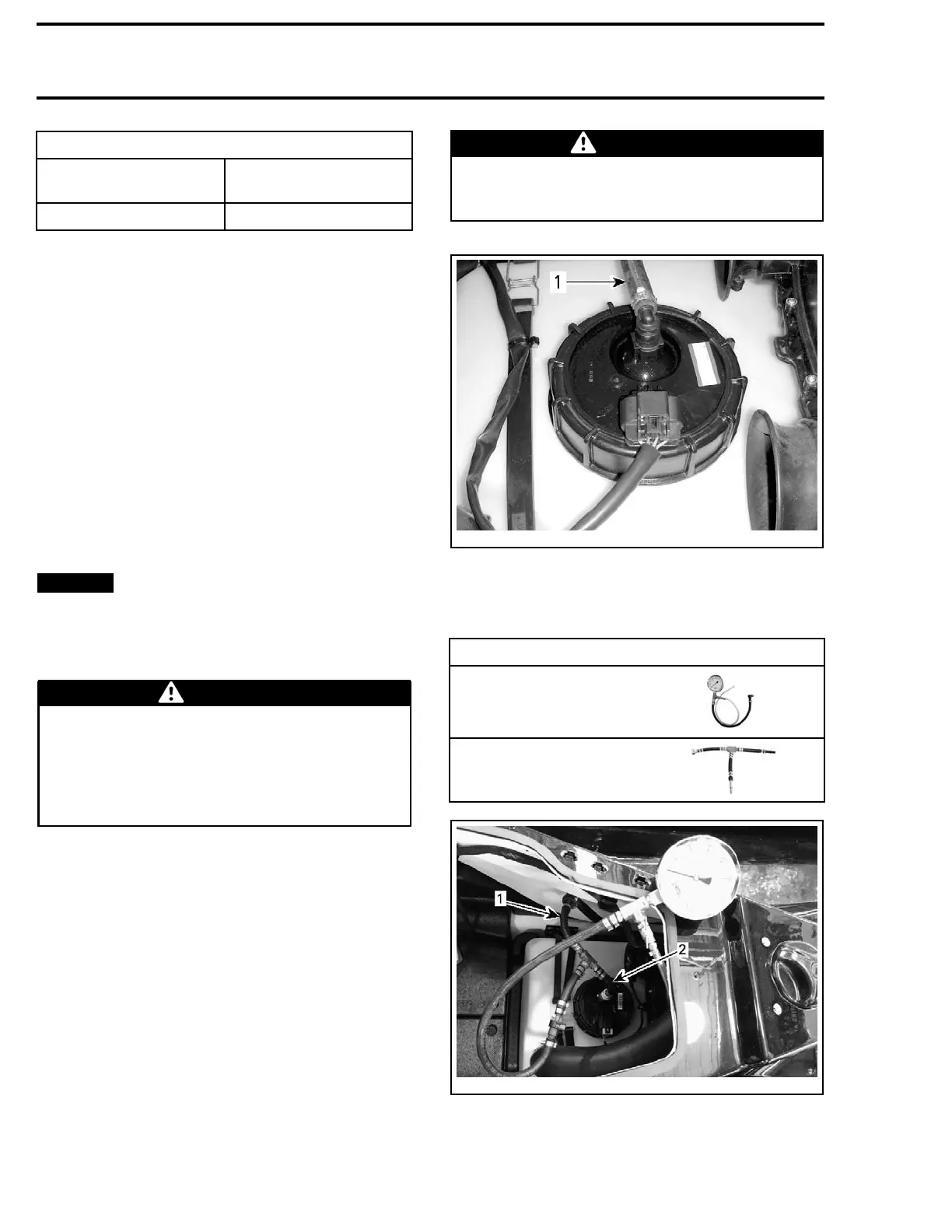

smr2012-027-010_a
1. Outlet hose
5. Install p
ressure test tools between discon-
nected ho
se and fuel pump fitting (in line
install
ation).
REQUIRED TOOLS
PRESSURE GAUGE
(P/N 529 036 395)
FUEL HOSE ADAPTER
(P/N 529 036 396)
219100893-021-005_a
TYPI
CAL
1. Connect to outlet hose
2. Connect to fuel pump
92
219100893-021
