Section 02 ENGINE
Subsection 02 (AIR INTAKE SYSTEM)

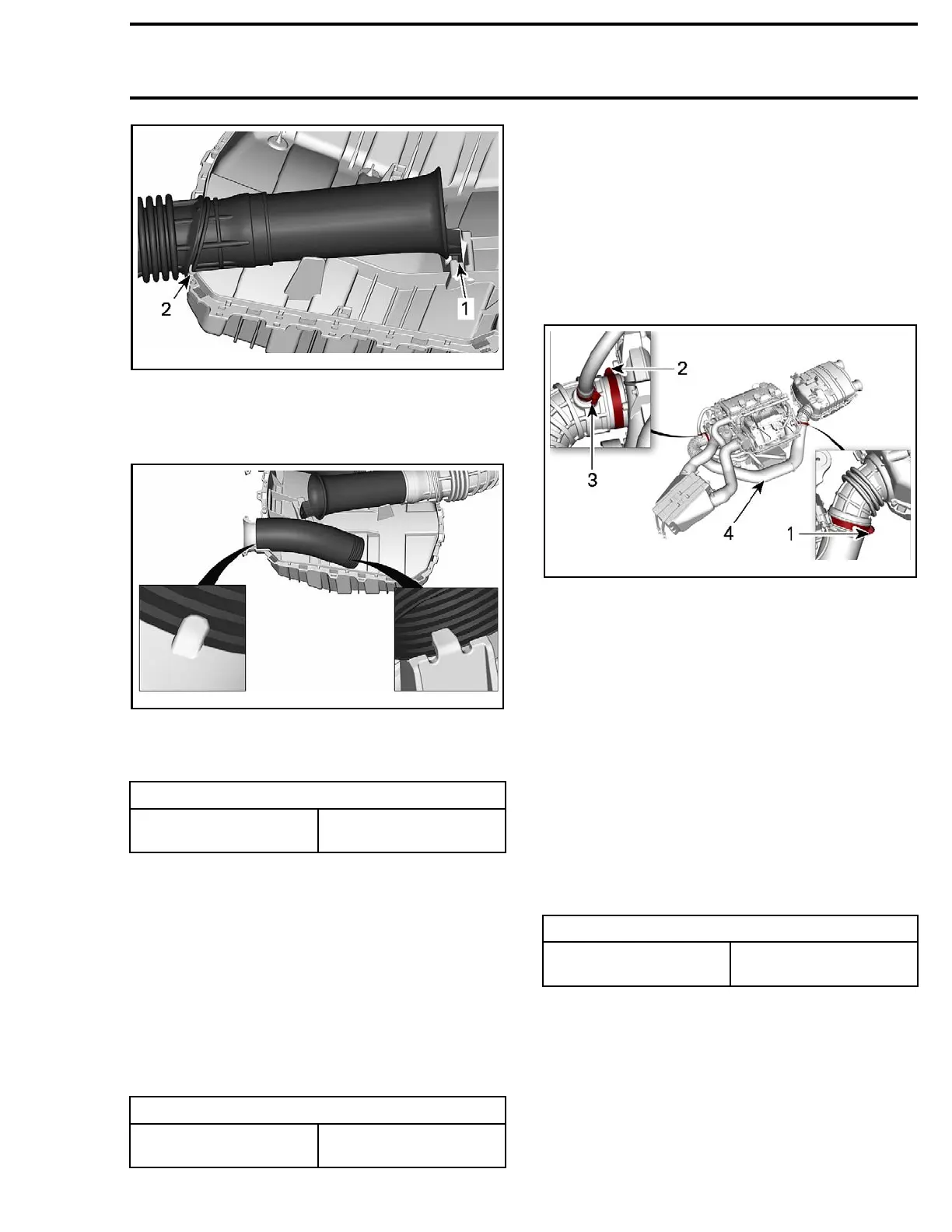

smr2016-011-006_a
1. Baffle tab into air intake silencer slot
2. Air intake silencer rib into the outlet hose groove
Install the inlet tubes. Ensure each end is properly
attached.
smr2016-011-007
Press both halves of the air intake silencer to-
gether until all tabs are locked. Do not force,
make sure all tubes are properly installed.
TIGHTENING TORQUE
Air intake silencer
screws
Hand ti
ght
Installing the Air Intake Silencer
The in
stallation is the reverse of the removal pro-
cedur
e. However, pay attention to the following.
Ensure wiring harness and fuel hoses are properly
routed.
Perform fuel tank leak test. Refer to
FUEL TANK
AND FUEL PUMP
subsection.
Insta
ll new locking ties
Make sure hoses are perfectly inserted into air in-
take tube before tightening the clamps.
TIGHTENING TORQUE
Retaining clamps
4N•m ± 1N•m
(35 lbf•in ±9lbf•in)
AIR INTAKE TUBE
Removing the Air Intake Tube
Supercharged Engine
1. Remove seats.
2. Remove the engine access cover. Refer to
BODY
.
3. Loosen clamps retaining the air intake tube.
219100893-011-312_a
1. Retaining clamp
2. Retaining clamp
3. Retaining clamp
4. Air intake tube
4. Detach the air intake tube from both hoses.
5. Open the front compartment storage cover and
remove the s torage bin. Refer to
BODY
sub-
section.
6. Slide the air intake tube over the air intake
silencer and through the front compartment
opening.
Installing the Air Intake Tube
The installation is the reverse of the removal pro-
cedure. However pay attention to the following.
Make sure air intake tube is perfectly inserted into
air intake hoses before tightening the clamps.
TIGHTENING TORQUE
Retaining clam ps
4N•m ± 1N•m
(35 lbf•in ±9lbf•in)
219100893-011 27
