Section 05 ELECTRICA L SYSTEM
Subsection 01 (POWER DISTRIBUTION AND GROUNDS)
POWER DISTRIBUTION AND GROUNDS
GENERAL
POWER DISTRIBUTION DIAGRAM
Refer to the appropriate WIRING DIAGRAM .
NOTE: Refer to
WIRING DIAGRAM INFORMA-
TION
for how to properly interpret the WIRING
DIAGRAM
.

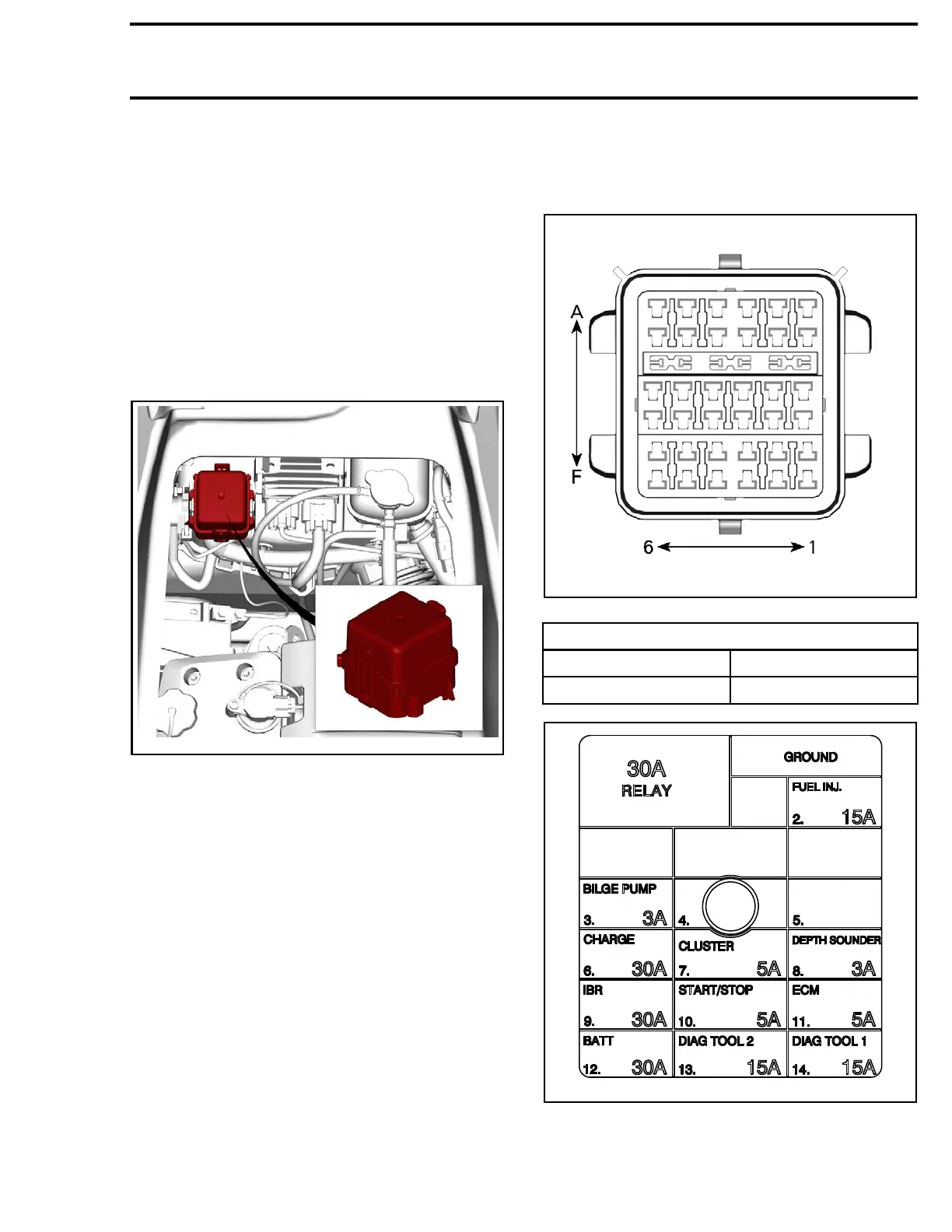

FUSE BOX
219100893-022-001_a
Fuse Identification
219100893-022-005_a
FUSE BOX P
IN IDENTIFICATION
NUMBER OF CAVITIES BY ROW
ROW NUMBER OF CAVITIES
A-F 6
219
100893-022-003_a
FUSE IDENTIFICATION
219100893-022 105

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
