Section 04 FUEL SYSTEM
Subsection 02 (FUEL TANK AND FUEL PUMP)
smr2012-027-012_c

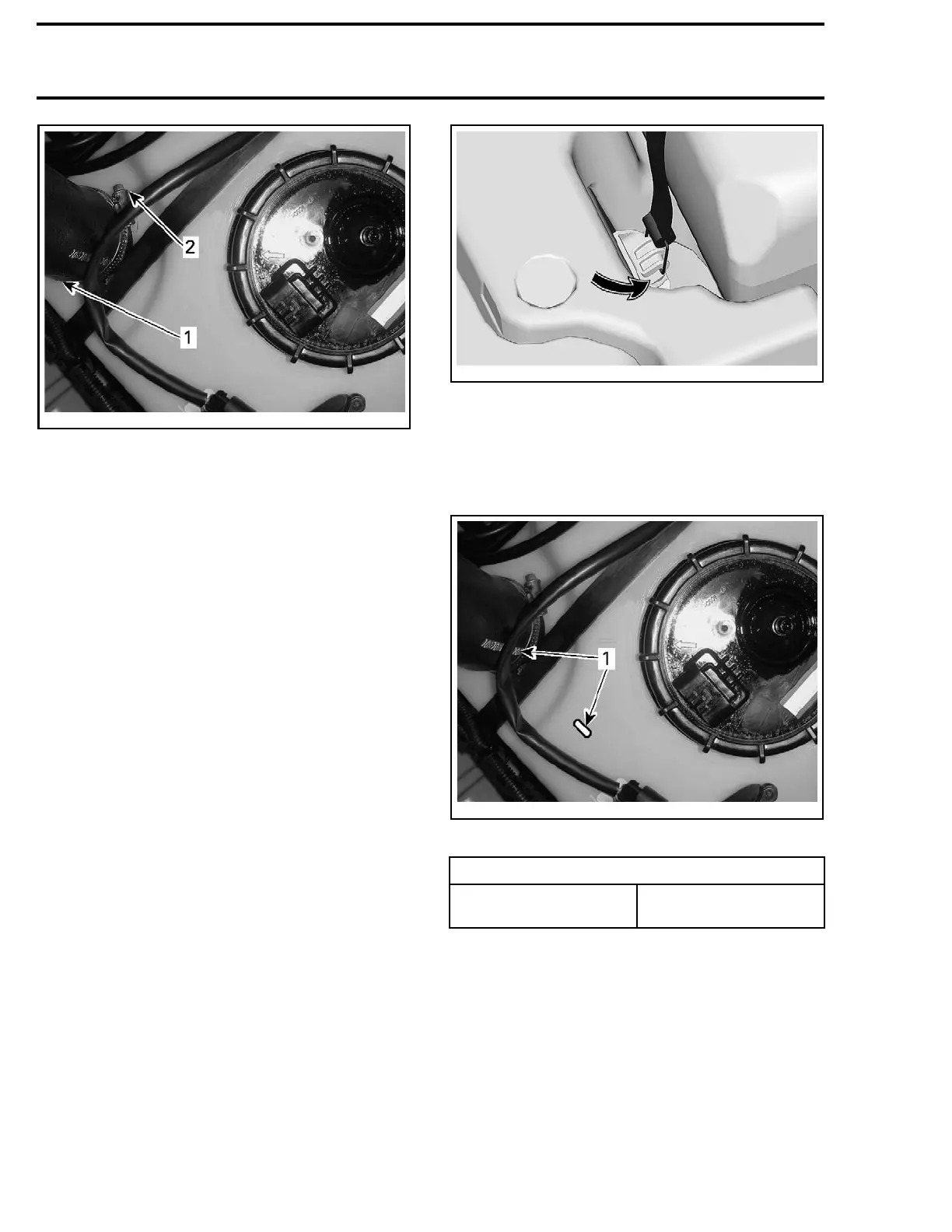

1. Filler hose
2. Retaining clamp
NOTE: Take note of wiring harness, hose and
cable routing for proper reinstallation. Also note
method used for securing with locking ties.
5. Remove air intake silencer. Refer to
AIR IN-
TAKE
SUBSECTION for procedure.
6. Detach fuel tank retaining straps.
7. Remove fuel tank from the vehicle.
8. Remove fuel pump as necessary. Refer to
FUEL PUMP
in this subsection.
9. Inspect hull and flotation foams for wear.
Installing the Fuel Tank
NOTE: Apply torque values as specified in the ex-
ploded view.
1. Reinstall fuel pump if it was removed. Refer to
FUEL PUMP
in this subsection.
2. Ensure flotation foams are properly positioned
under fuel tank.
3. Insert fuel tank in hull.
4. Place fuel tank retaining strap ends in anchoring
clips.
smr2016-028-003_a
5. Secure retaining strap ends on top of fuel tank.
6. Properly secure wire harness, cables and hose
as prior to removal using a ppropriate locking
ties.
7. Install fuel tank filler hose as illustrated.
smr201
2-027-012_b
INDEXING WITH FUEL TANK
1. Align mark with the writing o n hose
TIGHTENING TORQUE
Filler hose retaining
clamps
3.5 N•m (31 lbf•in)
8. Reinstall all other removed parts. Refer to their
subsections.
9. When vehicle reassembly is complete, test fuel
tank for leaks as described in this subsection.
