Section 07 BODY AND HULL
Subsection 01 (BODY)

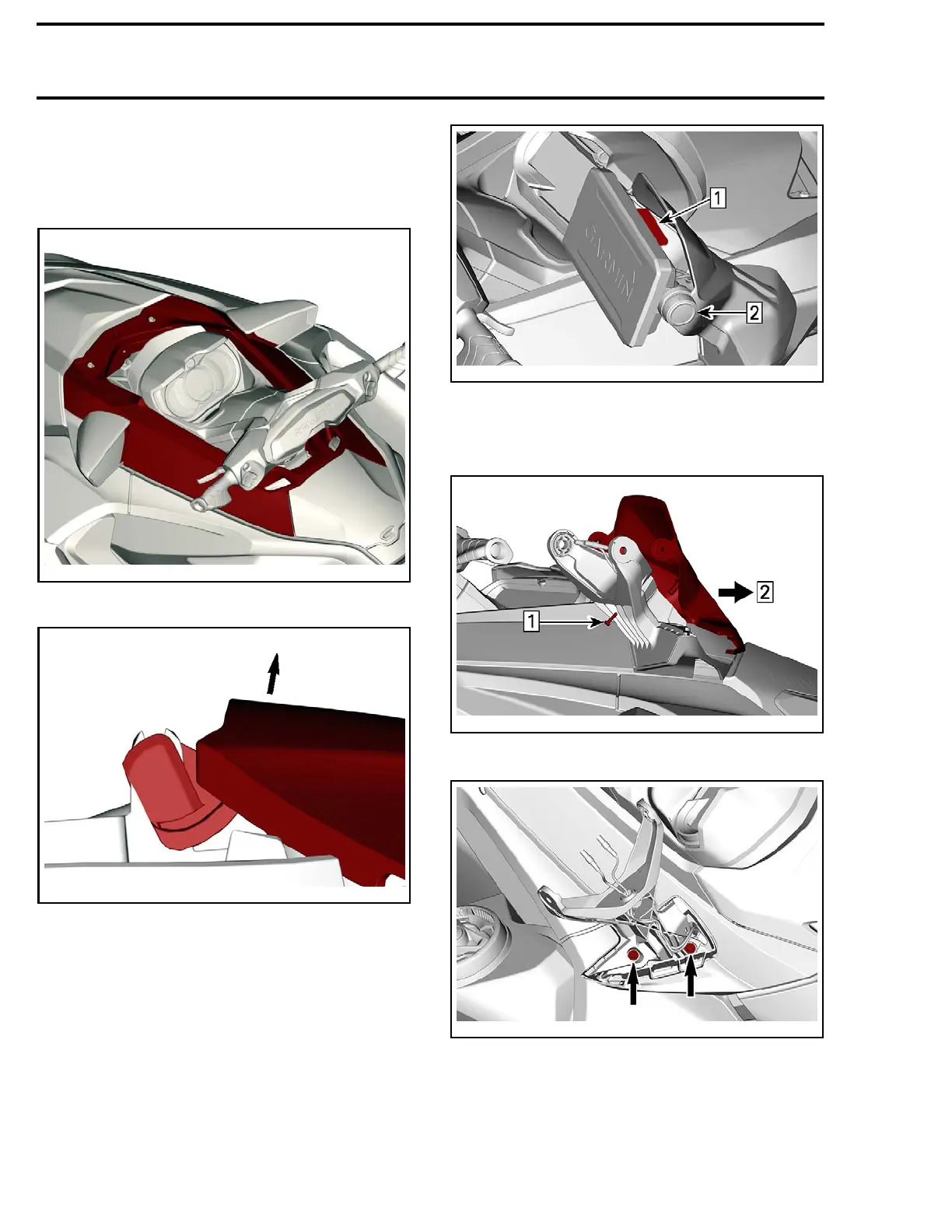

3. Remove mirror covers and fish finder sonar
support (if equipped), see procedure in this
subsection.
4. Remove outer skin.
219100893-032-706_a
5. Lift cov
er.
219100893-032-707_a
Installing the Glove Box Cover
Reverse the removal procedure.
FISH FINDER SONAR SUPPORT
Removing the Support
To remove the sonar, lift the tab.
Remove the adjustment knobs and sonar support
plate. Disconnect the electrical connectors.
219100963-021-001
Step 1: Lift tab to remove s onar
Step 2: Uns
crew knob to remove support plate
Remove the mounting screw and pull mirror cover
toward the front.
219100963-021-002
Remove the mounting screws.
219100963-021-004
Installing the Support
The i
nstallation is the reverse of the removal pro-
cedu
re. However, pay attention to the following.
Ensure the wires are properly routed before in-
stalling the mirror cover.
220 219100963-021
