SeaDoo GTX Series 2022 User Manual

Section 06 STEERING AND PROPULSION
Subsection 01 (STEERING)
219100893-028-032
Replace an
y damaged or worn parts.

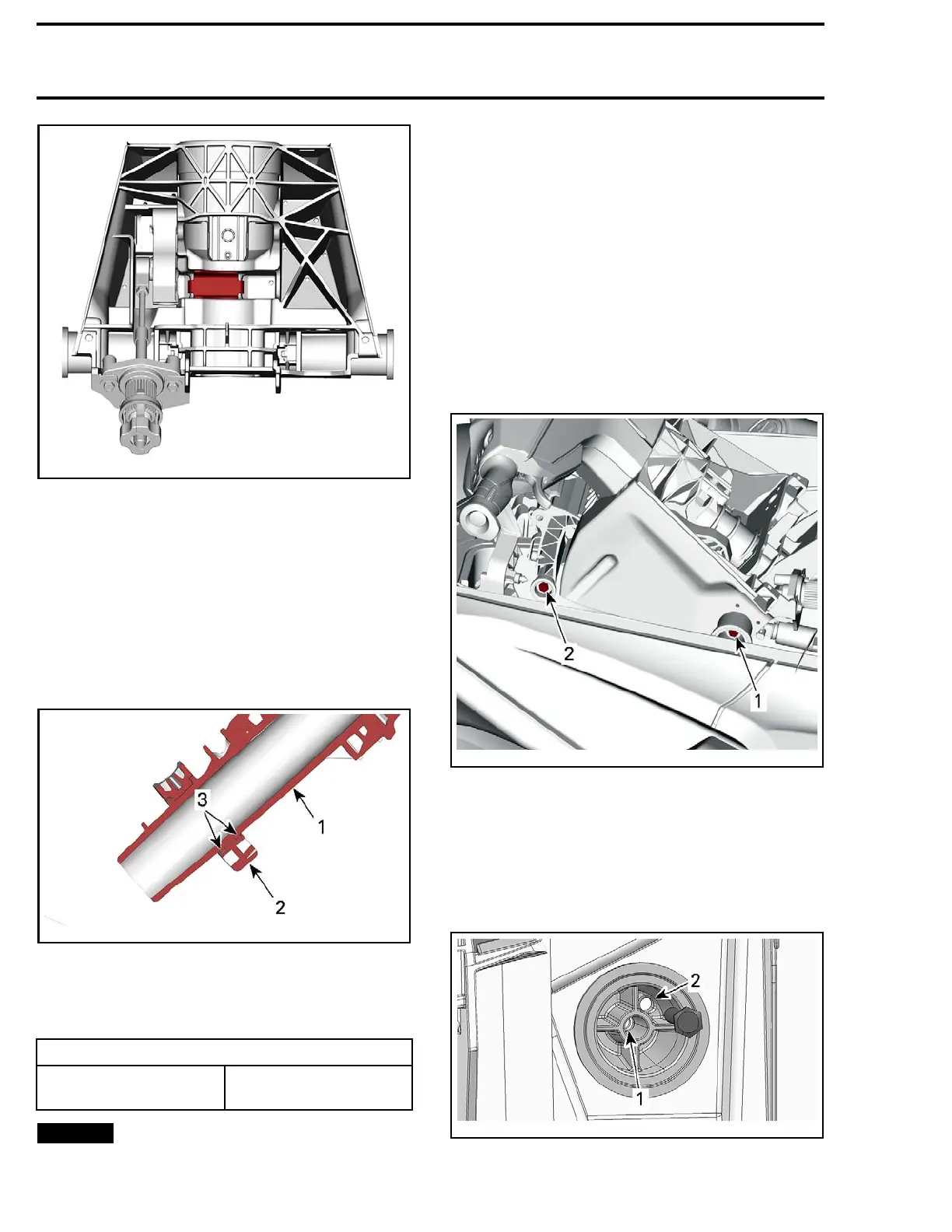

Installing the Steering Column
The instal
lation is the reverse of the removal pro-
cedure. Ho
wever, pay attention to the following.
Carefully, drive steering column through steering
column support.
Make sure the locating grooves of the steering
column arm a re properly engaged in the steering
column as shown.
219100963-017-002
1. Steering column
2. Steering arm
3. Locat
ing grooves
Tighten steering column arm screws to specifica-
tions.
TIGHTENING TORQUE
Steering column arm
screws
14 N•m ± 1 N•m
(124 lbf•in ±9lbf•in)
NOTICE
Ensure the head of the screws
touches the upper steering arm.
Ensure the steering system is working properly by
turning side to side.
Reinstall all removed parts using appropriate pro-
cedure.
STEERING COLUMN SUPPORT
Removing the Steering
Column Support
1. Remove steering column, refer to REMOVING
THE STEERING COLUMN
in this subsection.
2. On each sides, remove both pivot bushings.
219100893-028-027_a
PARTS RE
MOVED FOR CLARITY
1. Pivot bushing of steering column sup port
2. Pivot bushing of steering adjustment handle
If pivo
t bushings retaining steering column are
hard to
remove, remove the retaining screw from
the cen
ter hole and tighten it into the offset hole.
Tighte
n screw until the pivot bushing comes out
of stee
ring column support.
smr2009-037-040_a
1. Center hole
2. Offset hole
162
219100963-017

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
