Section 06 ST EE RING AND PROPULSION
Subsection 02 (iBR, REVERSE AND VTS)
iBR, REVERSE AND VTS
SERVICE TOOLS
Description Part Number Page
DIAGNOSTIC HARNESS ..................... .............................. ............ 529 036 384 ......................................... 181
IBR NUT SOCKET.............. ........................... ........................... ...... 529 036 379 ......................................... 176
SERVICE PRODUCTS
Description Part Number Page
LOCTITE 271 (RED)...................................... ........................... ...... 293 800 005 ................................. 178, 180
LOCTITE 5900 ....................................................... ........................ 293 800 066 ......................................... 177

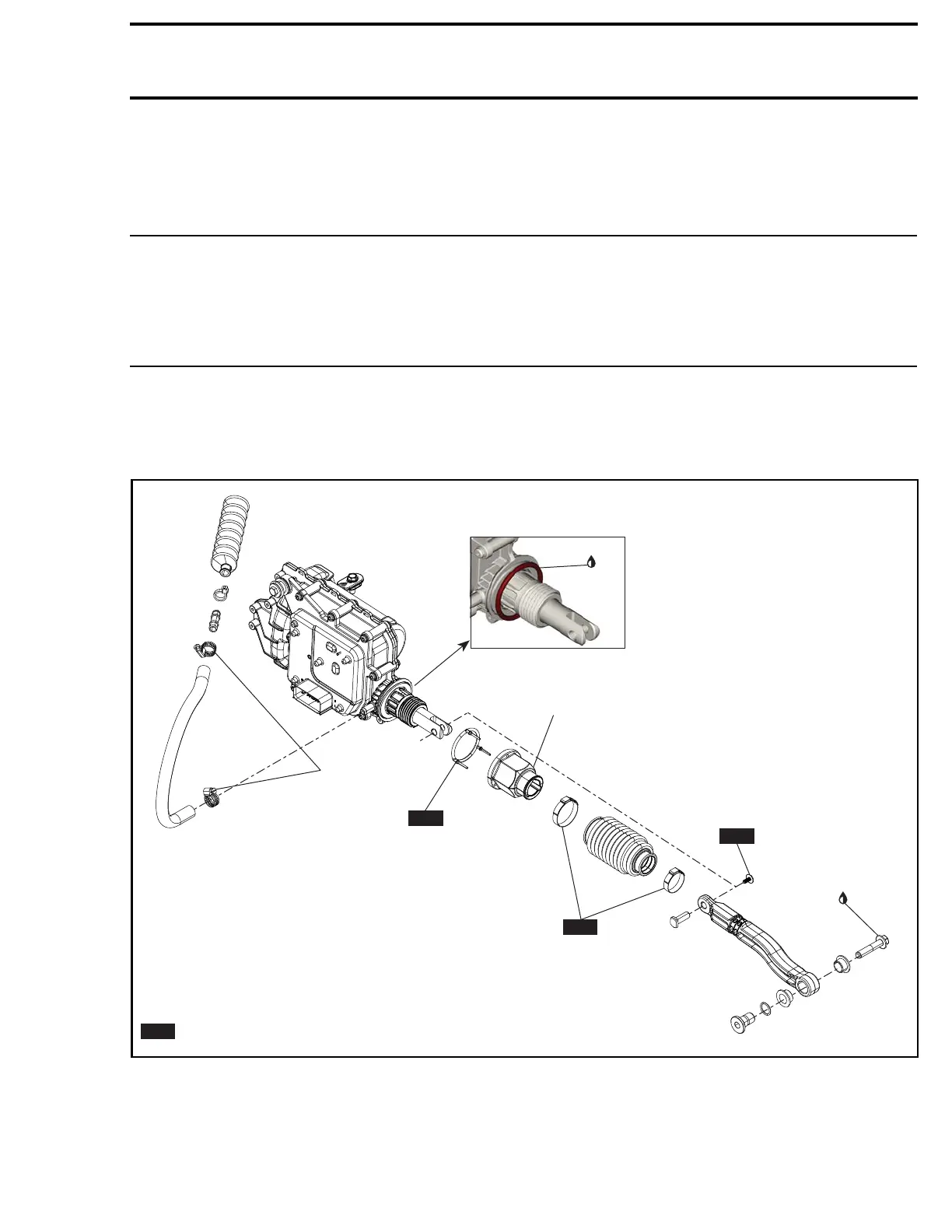

iBR ACTUATOR
Loctite 5900
Loctite 271
= Component must be replaced when removed.
NEW
NEW
NEW
NEW
1.7 ± 0.2 N•m
(15 ± 2 lbf•in)
17.5 ± 2.5 N•m
(155 ± 22 lbf•in)
2.5 ± 0.5 N•m
(22 ± 4 lbf•in)
29 ± 1 N•m
(21 ± 1 lbf•ft)
219100893-029-1
01_a
219100963-018 165
