Section 07 BODY AND HULL
Subsection 01 (BODY)

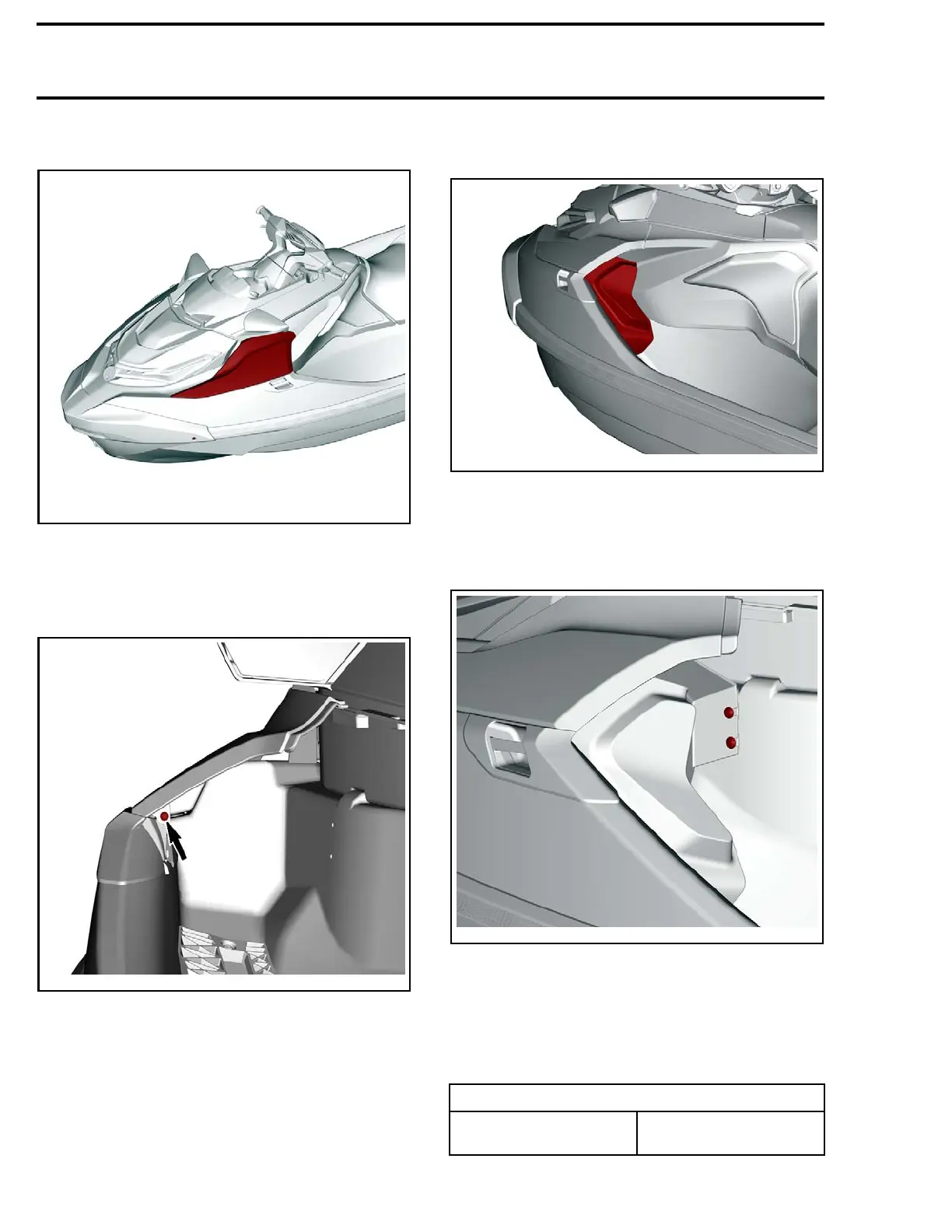

Removing the Front Cosmetic
219100893-032-721_a
Remove center cosmetic.
Remove lateral grille, see procedure in this sub-
section.
Remove screw.
219100893-032-723_a
Pull Front cover toward the rear.
Insta
lling the Front Cosmetic
The installation is the reverse of the removal pro-
cedure.
LATERAL GRILLE ASSEMBLY
219100893-032-725_a
Removing the Lateral Grille
Remove center cosmetic, see procedure in this
subsection.
Remove screws.
219100893-032-726_a
Pull grille toward the rear.
Installing the Lateral Grille
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Ensure lower clip is hooked in the support
TIGHTENING TORQUE
Lateral grille screw
4.5 N•m ± 0.5 N•m
(40 lbf•in ±4lbf•in)
