SeaDoo GTX Series 2022 User Manual

Section 07 BODY AND HULL
Subsection 02 (HULL)
PROCEDURES
HULL
For hull repair, refer to CLEANING AND REPAIR
subsection.
INLET GRATE
Removing the Inlet Grate
Remove counter nut on front screw on the inside
of the hull.
Remove inlet g
rate retaining screws using an im-
pact tool.

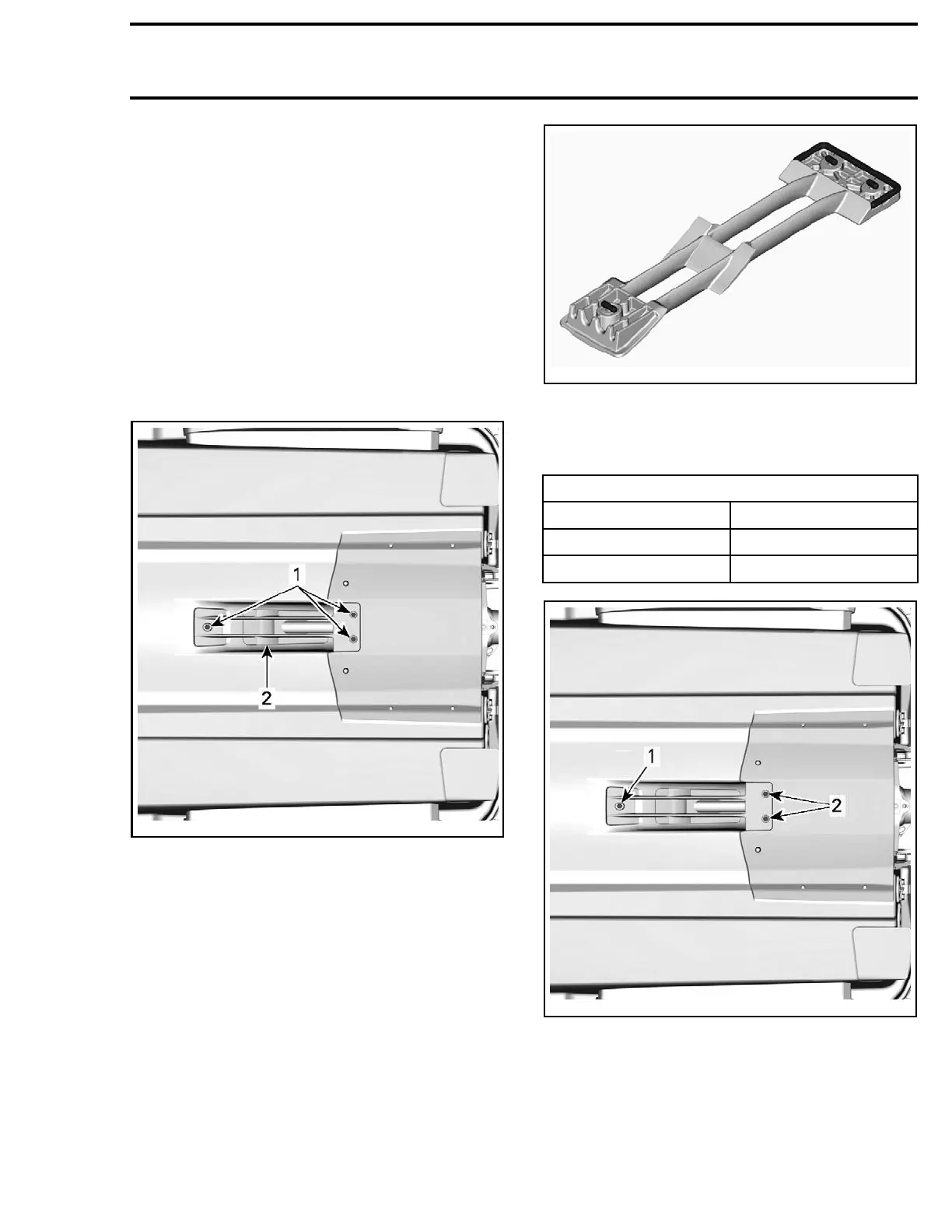

219100893-033-001_a
TYPICAL
1. Inlet grate screws
2. Inlet grate
Installing the Inlet Grate
1. Apply LOCTITE 5900 (P/N 293 800 066) sealant as
illustrated.
219100893-033-019_a
SEALANT APPLICATION
2. Install inlet grate retaining screws with LOCTITE
271 (RED) (P/N 293 800 005)
at the proper loca-
tion.
INLET GRATE SCREWS
LOCATION SCREW SIZE
Front M8 x 45
Rear M8 x 25
219100893-033-001_b
SCREW LOCATION
1. Front
2. Rear
3. Tighten screws to the specified torque and se-
quence.
219100893-033 239
