Section 05 ELECTRICA L SYSTEM
Subsection 02 (WIRING HARNESS AND CONNECTORS)

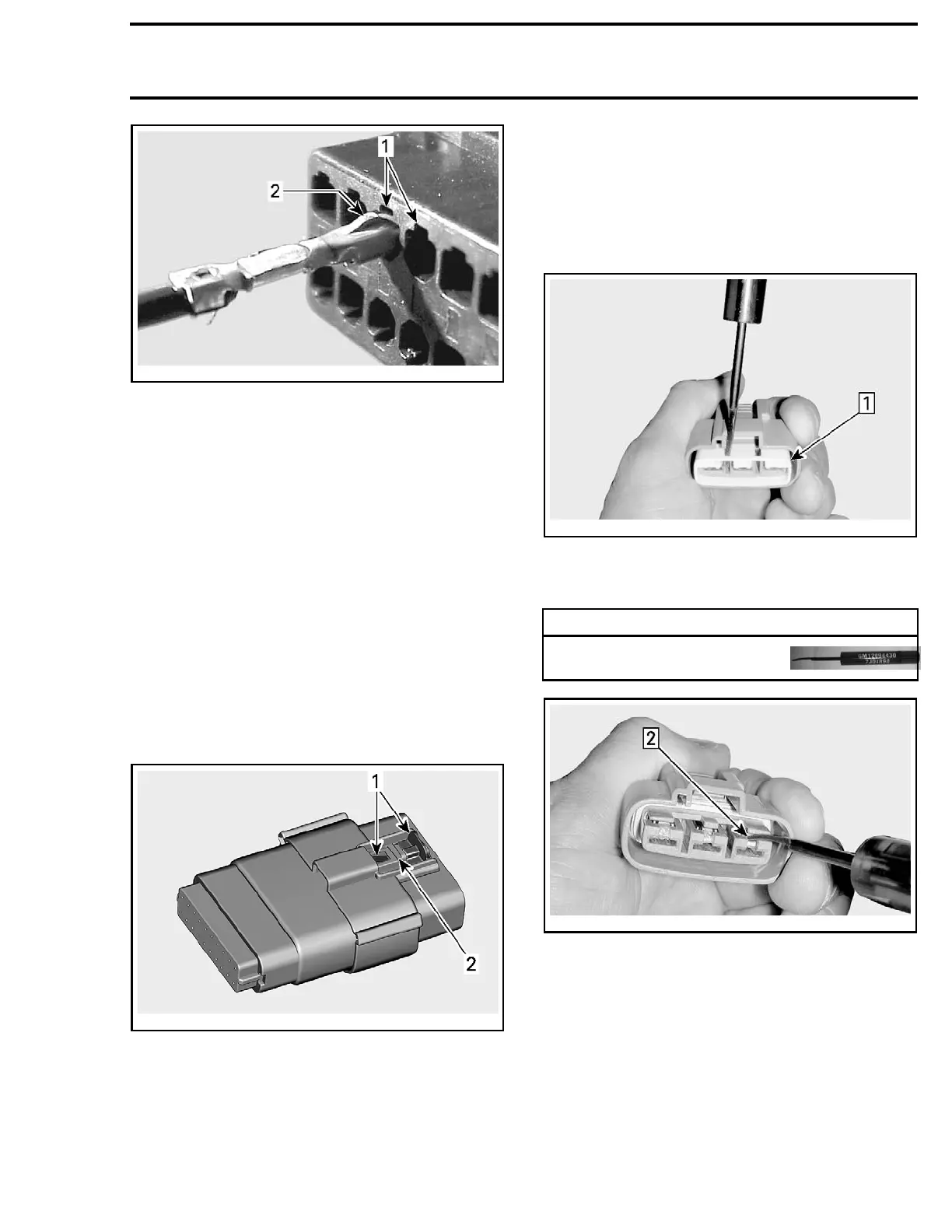

smr2014-045-004_a
TYPICAL - PIN INSERTION
1. Notch
2. Stepped portion to wards notch
4. Push the pin in until the pin lock engages the
pin.
5. Gently pull on the pin to ensure it is properly
locked.
6. Repeat previous steps for each pin to be in-
serted.
7. Push the pin locator into the connector to the
locked position.
Reconnecting the MOLEX Connector
1. Insert the male connector into the female con-
nector and push it in until the latch lever fully
engages.
2. Push in the secondary lock (red tab) until it fully
engages into the l atch lever.
smr2014-045-003_a
1. Red secondary lock (shown out)
2. Lat
ch lever
VOLTAGE
REGULATOR/RECTIFIER
CONNECTOR (FURUKAWA)
Removing the Terminal
1. Remove the secondary lock (plastic insert).
smr2010-050-021_a
Step 1: Remove the s eco ndary lock
2. Carefully insert the GM terminal extractor be-
tween the lock and the pin to release the pin.
REQUIRED TOOL
GM TERMINAL EXTRACTOR
(P/N 12094430)
smr2010-050-022_a
Step 2: Insert GM extractor tool (P/N 12094430)
3. Gently pull on the wire to extract the pin out the
back of the connector.
219100963-012 119
