SeaDoo GTX Series 2022 User Manual

Section 06 STEERING AND PROPULSION
Subsection 04 (DRIVE SHAFT)
Loosen gear clamp holding bellows, then carefully
pull bellows and carbon ring from hull insert.

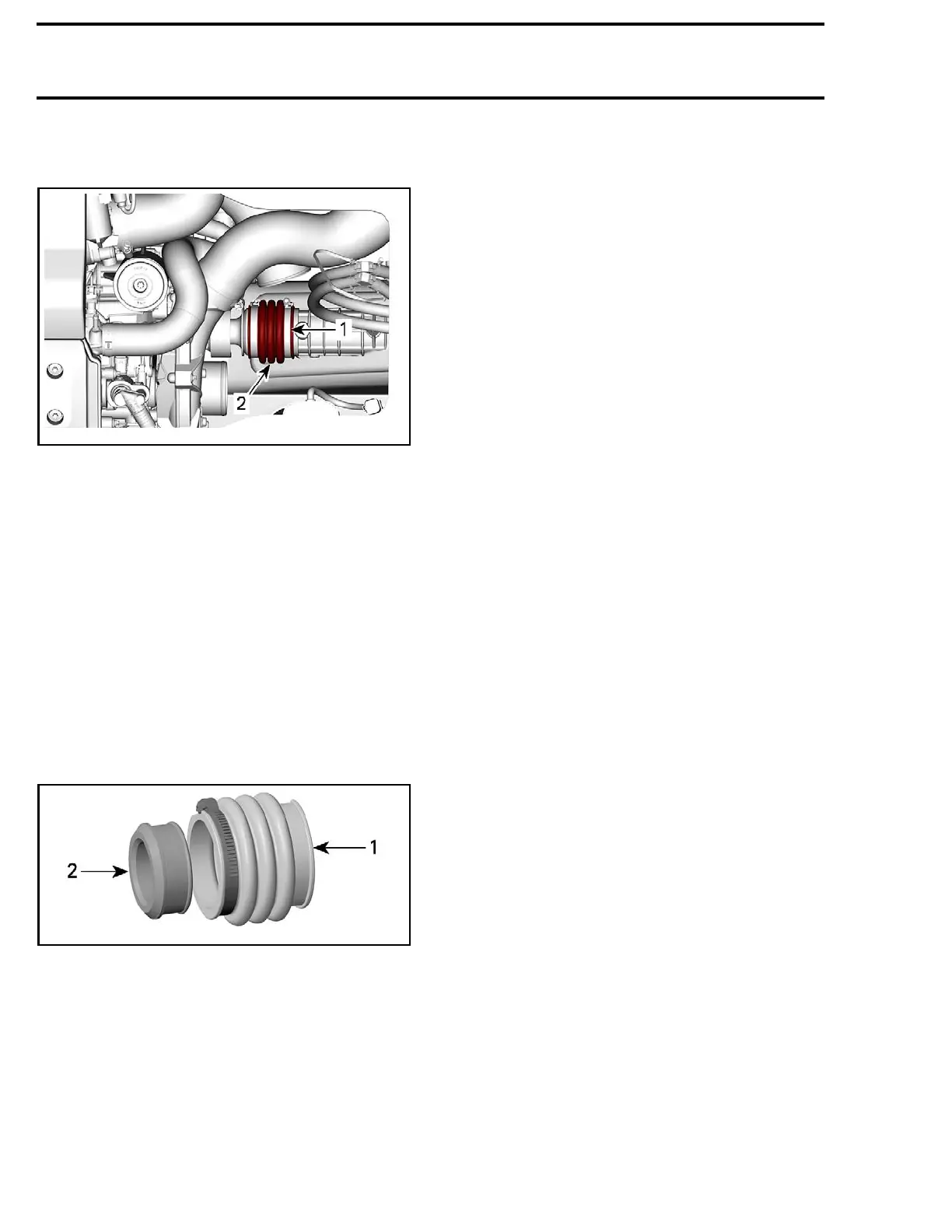

219100893-031-002_a
TYPICAL
1. Loosen this clamp
2. Drive shaft bellows
Installin
g the Drive Shaft Bellows
The installation is the reverse of the removal pro-
cedure.
CARBON RING
Removing t
he Carbon Ring
NOTE: Always replace the floating ring when re-
placing the carbon ring.
Remove
DRIVE SHAFT BELLOWS . See proce-
dure in this subsection.
Loosen ge
ar clamp then pull carbon ring from
drive sha
ft bellows.
smr2008-030-003_a
1. Drive shaft bellows
2. Carbon ring
Installing the Carbon Ring
The installation is the reverse of the removal pro-
cedure.
208 219100963-020
