SeaDoo GTX Series 2022 User Manual

Section 07 BODY AND HULL
Subsection 01 (BODY)
1
1
219100893-032-202

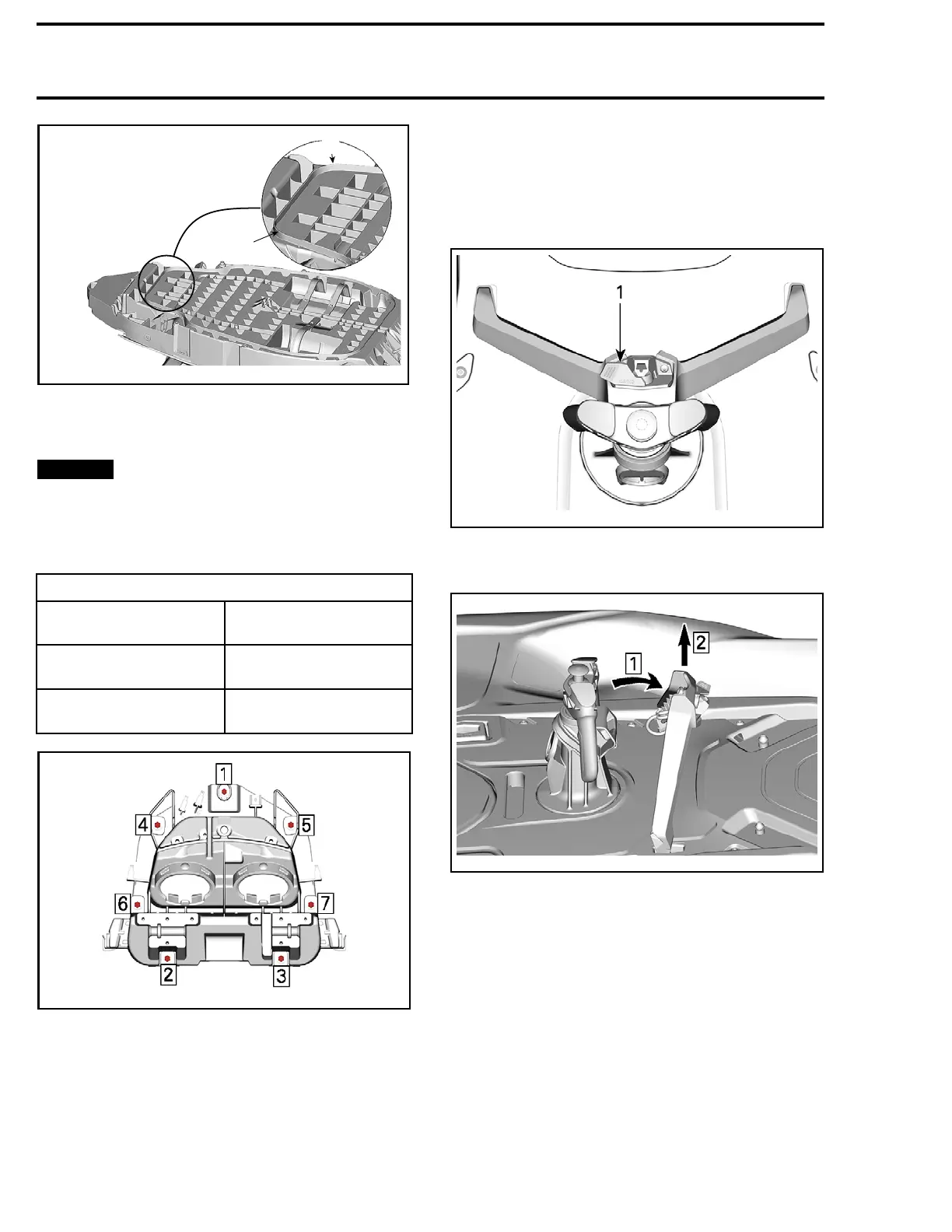

STORAGE COMPARTMENT COVER RIB
3. Make sure ventilation adaptor is properly in-
stalled on anchorage hooks.
NOTICE
Makesureb
oth ventilation tubes
are positi
oned underneath the storage com-
partment a
nd not on each side.
4. Tighten anchorage hooks, ventilation adaptor
and storage compartment.
TIGHTENING TORQUE
Latchbasescrews
4.5 N•m ± 0.5 N•m
(40 lbf•in ±4lbf•in)
Ventilation adaptor
screws
4.5 N•m ± 0.5 N•m
(40 lbf•in ±4lbf•in)
Storage compartment
screws
5.5 N•m ± 0.5 N•m
(49 lbf•in ±4lbf•in)
219100963-021-021
VENTILATION ADAPTOR SCREWS TIGHTENING SEQUENCE
5. Rech
eck position of the inner rib on seal. Repo-
siti
on if necessary.
6. Ensure cover latch properly.
7. Install the shock.
8. Rei
nstall all other removed parts.
WAKE PYLON (WAKE PRO)
Removing the Wake Pylon
Remove the seat.
Unlock the LinQ attachment.
219001878-043_a
1. LinQ lever
Tilt the support toward the front and lift.
219001878-044_a
1. Tilt support
2. Lift support
Unscrew the pole by turning it one quarter of a
turn and lifting it.
232 219100963-021

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
