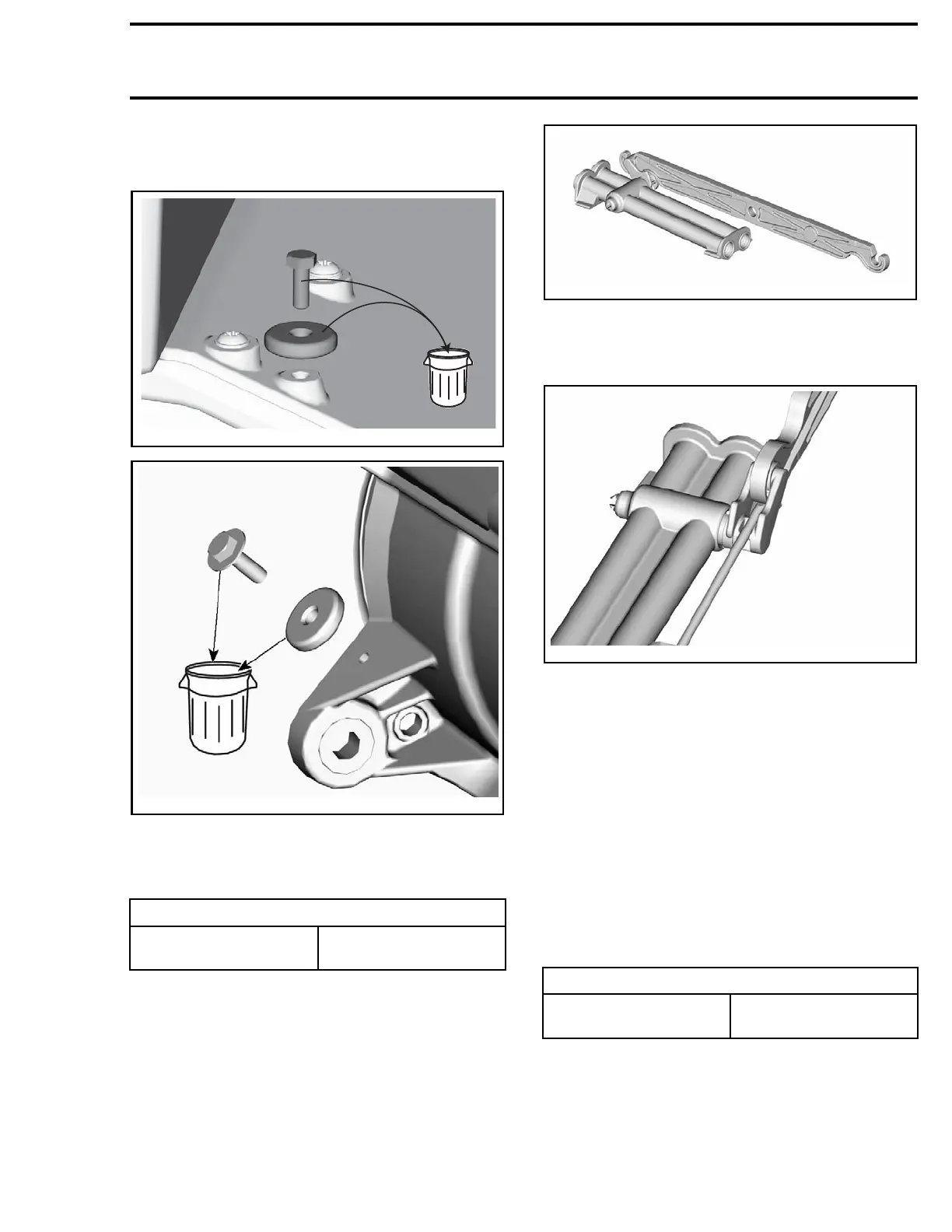

Removing the Sacrificial Anode
Remove and discard screw a nd anode.
smr2016-037-003_a
219100
893-030-001_a
Installing the Sacrificial Anode
Instal
lation is the reverse of the removal proce-
dure.
TIGHTENING TORQUE
Sacrificial anode screw
8N•m ± 1N•m
(71 lbf•in ±9lbf•in)
IDF ARM
Removing the iDF Arm
1. Remove the venturi from the pump housing.
2. Remove the water outlet tubes and the iDF arm
from the top of the jet pump housing.
219100963-019-200
3. Rotate the iDF arm then using a screwdriver or
any suitable tool, c arefully pry out the iDF arm
from the rotary valve.
219100963-019-201
Instal
ling the iDF Arm
The installation is the reverse of the removal pro-
cedure.
VENTURI
Removi
ng the Venturi
1. Remove the iBR gate, VTS trim ring and nozzle.
Refer to
iBR, REVERSE AND VTS subsection.
2. Remove the venturi from the jet pump housing.
Installing the Venturi
The installation is the reverse of the removal pro-
cedure.
TIGHTENING TORQUE
Venturi retaining screw
25 N•m ± 1 N• m
(18 lbf•ft ± 1 lbf•ft)
JET PUMP HOUSING
Removing the Jet Pump Housing
1. Remove the iBR gate, VTS trim ring and nozzle.
Refer to
iBR, REVERSE AND VTS subsection.
2. Remove the venturi.
219100963-019 187
