Section 06 ST EE RING AND PROPULSION
Subsection 03 (JET PUMP)
Installing the Wear Ring
Like the removing procedure, two methods can
be used to install the wear ring, use the most ap-
propriate as your situation.
Method Using a Freezer
While the housing is still cold, insert the new wear
ring (previously placed in the freezer) in the hous-
ing.
On models equipped with the 300 engine,the
wear ring must be secured by screws. Drill pilot
holes in the wear ring using a #24 drill bit (5/32 in)
and apply blue Loctite on screw threads.
SERVICE PRODUCT
LOCTITE 243 (
BLUE) (P/N 293 800 060)
TIGHTENING TORQUE
Wear ring screws
2.5 N•m ± 0.5 N•m
(22 lbf•in ±4lbf•in)

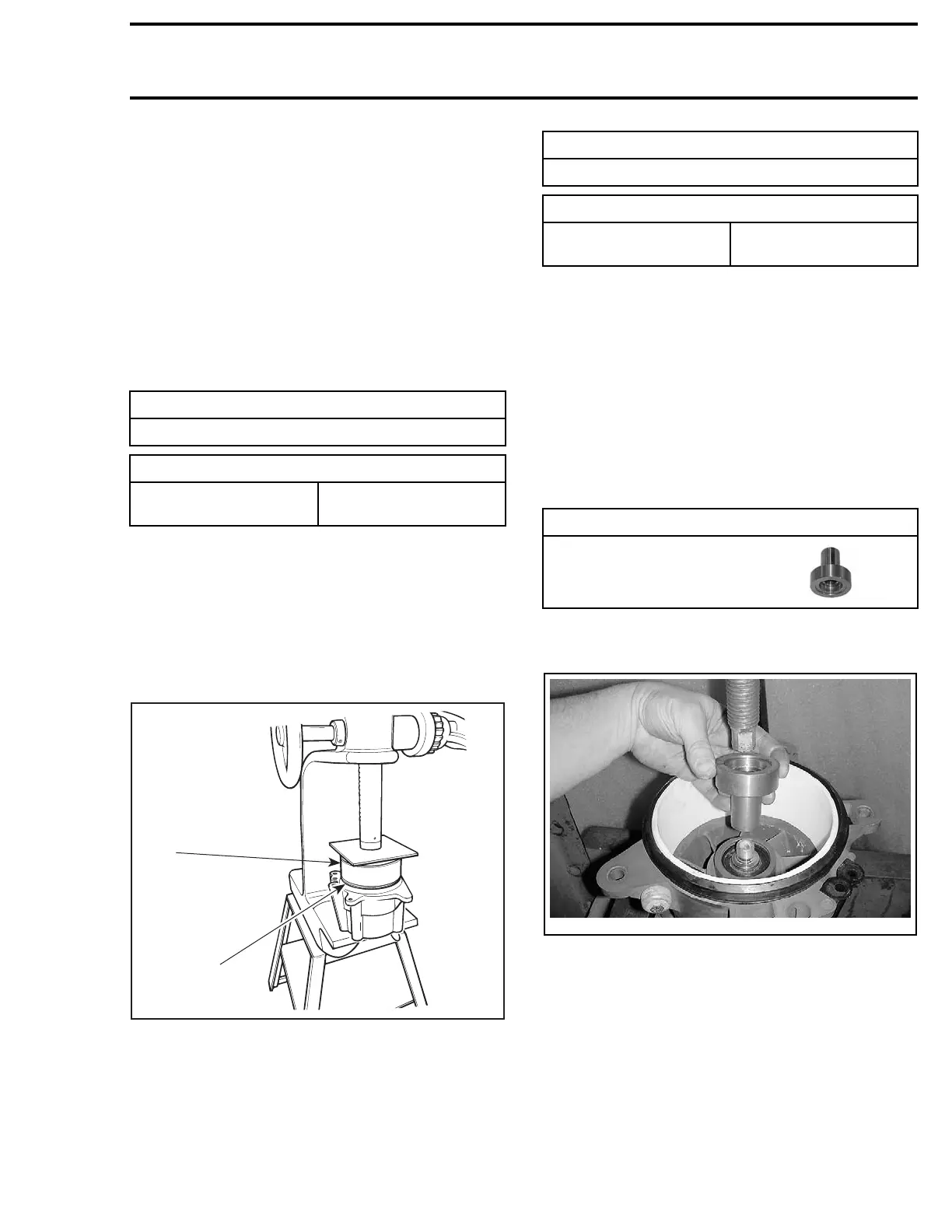

Method Using a Press
To install wear ring in housing, use a square steel
plate of approximately 180 x 180 mm x 6 mm thick
(7x7inx1/4in)andapress.
Manually engage ring in housing making sure it is
equally inserted all around. Press ring until it seats
into bottom of housing.
F01J1DA
1
2
1. Rounded edge
2. Press wear ring
On mod
els equipped with the 300 engine,the
wear r
ing must be s ecured by screws. Drill pilot
holes
in the w ear ring using a #24 drill bit (5/32 in)
and a
pply blue Loctite on screw threads.
SERVICE PRODUC
TS
LOCTITE 243 (BLUE) (P/N 293 800 060)
TIGHTENING TORQUE
Wear ring screws
2.5 N•m ± 0.5 N•m
(22 lbf•in ±4lbf•in)
IMPELLER SHAFT, BEARING AND
SEALS
Removing the Impeller Shaft, Bearing
and Seals
Removing the Shaft
1. Remove impeller. Refer to
IMPELLER
in this
subsection.
2. Use the impeller shaft pusher tool to press im-
peller shaft out of pump housing.
REQUIRED T
OOL
IMPELLER SHAFT
PUSHER (P/N 529
035 955)
NOTE: Bea
ring will come out with the impeller
shaft.
smr2009-006-010_a
TYPICAL
219100963-019 195
