Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
smr2009-006-011
TYPICAL

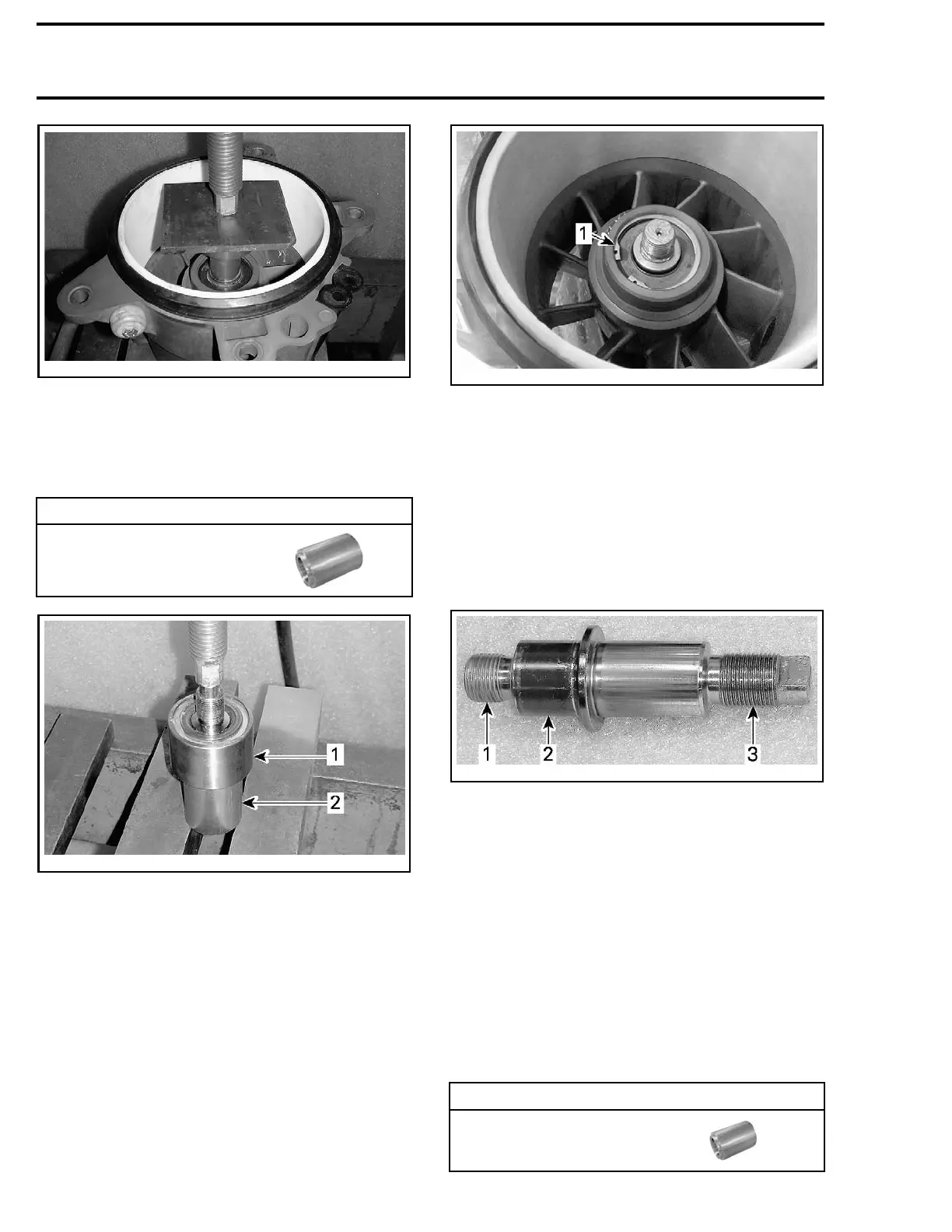

Removing the Bearing
1. Remove the b
earing retaining nut.
2. Use the Impeller shaft bearing tool to press
bearing off impeller shaft.
REQUIRED TOOL
IMPELLER SHAFT
BEARING TOOL (P/N 529
036 168)
smr2009-006-012_a
TYPICAL
1. Impeller shaft and bearing
2. Bearing tool on INNER race
Removing The Seals
1. Remove and discard the circlip securing the
seals.
smr2016-037-017_a
1. Circlip
2. Using an appropriate tool, press seals out of the
housing.
Inspecting the Impeller Shaft and its
Bearing
With your finger nail, feel seal lip contact surface
on shaft. If any irregular surface is found, replace
shaft and seals.
Check condition of shaft threads.
smr2009
-006-019_a
TYPICAL
1. Threads
2. Seal lip
contact surface
3. Threads
Inspect ball bearing for corrosion.
Install
ing the Impeller Shaft, Bearing
and Seals
Installing the Bearing
The inst
allation is essentially the reverse of the re-
moval p
rocedure. However, pay attention to the
follow
ing.
1. Using the Impeller shaft bearing tool on the
bearing inner race, press the bearing on the
impeller s haft.
REQUIRED TOOL
IMPELLER SHAFT
BEARING TOOL
(P/N 529 036 168)
196 219100963-019
