Section 07 BODY AND HULL
Subsection 02 (HULL)
BAILERS
Two bailers (one each side), serve to drain the
bilge of the watercraft when it is in operation.
The bailers are connected to syphon tubes
mounted in the jet pump venturi that use the
jet pump thrust to create a vacuum.
Bailer Access
Remove engine service cover.
Inspecting the Bailer
1. Inside hull, check holes in the bailer pick-ups to
see if they are obstructed. Clean if necessary.
2. Check if the hole on each bailer hose elbow fit-
ting is obstructed. Clean both elbow fittings if
necessary.

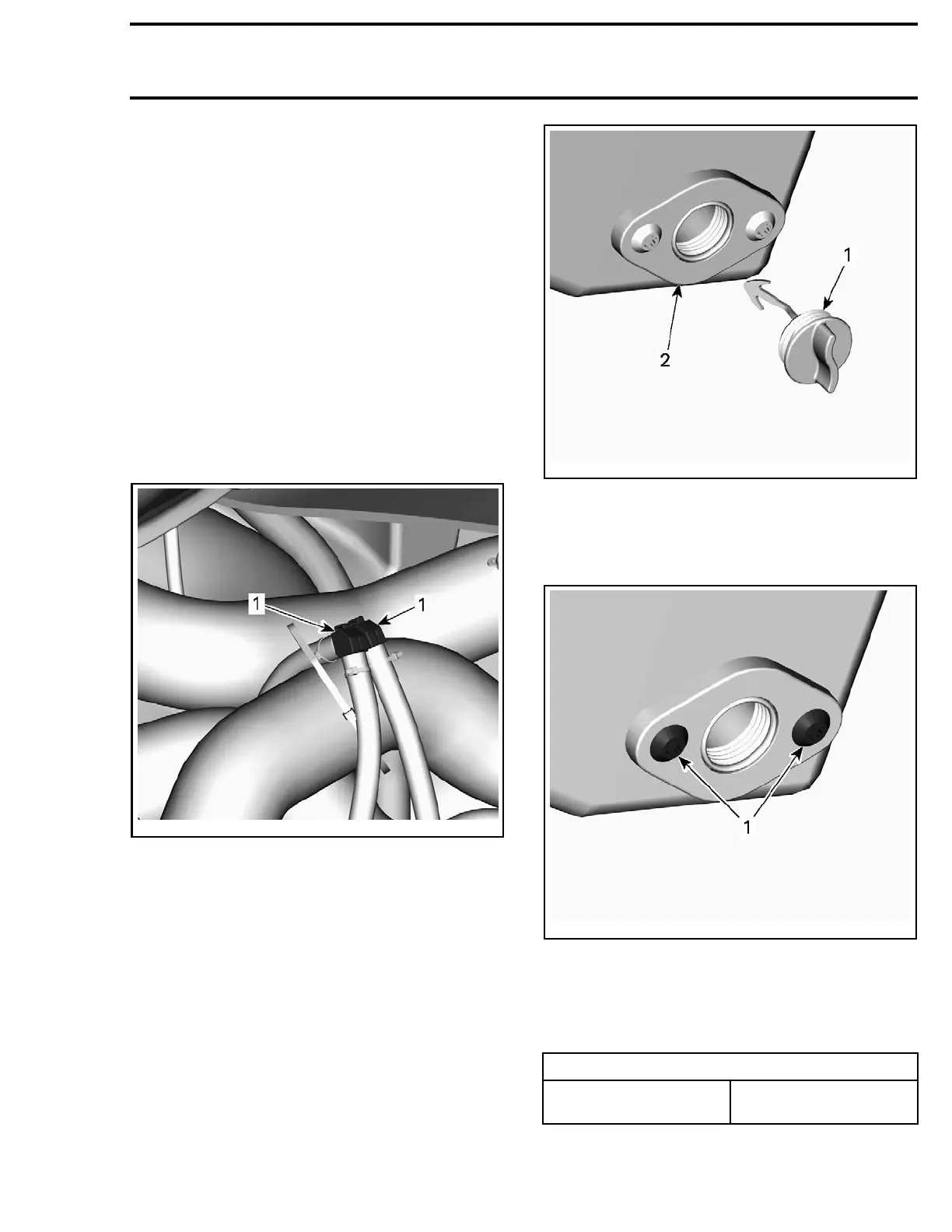

219100893-033-009_a
1. Elbow fitting holes
NOTE: When repositioning the bailer hose el-
bows, attach them at the highest position that
you can on the exhaust hose.
DRAIN PLUGS
Removing the Drain Plug Neck
1. Unscrew the drain plug from the drain neck a nd
use a small flat screw driver to compress and
release the arrow head from the neck.
219100893-033-010_a
DRAIN PLUG REMOVAL
1. Drain plug
2. Drain neck
2. Remove the retaining screws securing the drain
neck..
219100893-033-011_a
DRAIN NECK REMOVAL
1. Drain
neck removal screws
Installing the Drain Plug Neck
1. Inst
all drain neck and torque retaining screws to
spec
ification.
TIGHTENING TORQUE
Drain plug retaining
screws
5.5 N•m ± .5 N•m
(49 lbf•in ±4lbf•in)
2. Replace O-ring if necessary.
219100893-033 245
