SeaDoo GTX Series 2022 User Manual

Section 04 FUEL SYSTEM
Subsection 02 (FUEL TANK AND FUEL PUMP)
FUEL TANK AND FUEL PUMP
SERVICE TOOLS
Description Part Number Page
DIAGNOSTIC HARNESS ..................... .............................. ............ 529 036 384 ........................................... 98
ECM ADAPT ER TOOL.................................. ........................... ...... 529 036 166 ........................................... 94
FLUKE 115 MULTIMETER ............... ............................................. 529 035 868 ............................... 94, 98–99
FUEL HOSE ADAPT ER ............... ............... ............... ............... ...... 529 036 396 ........................................... 92
FUEL PUM P MODULE SOCKET.......................................... ......... 529 036 125 ........................................... 96
FUEL TANK TEST CAP ..................... ............................................. 529 036 242 ........................................... 91
OETIKER PLIER.......................... ........................... ........................ 295 000 070 ........................................... 94
PRESSURE GAUGE.................................................................... ... 529 036 395 ........................................... 92
VACUUM/P RESSURE PUMP ..... ............... ............... ..................... 529 021 800 ........................................... 91

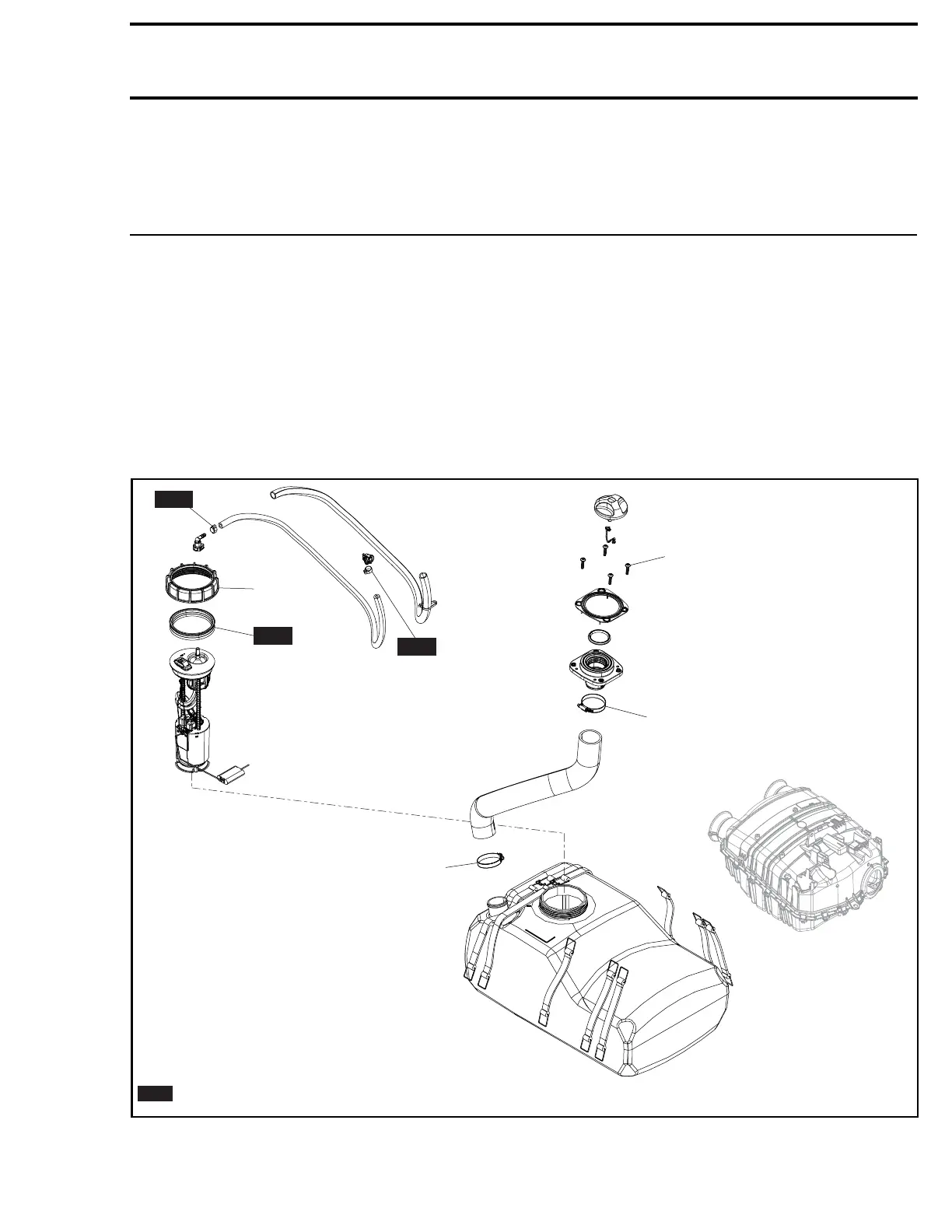

FUEL TANK AND FUEL PUMP
NEW
NEW
NEW
60 ± 10 N•m
(44 ± 7 lbf•ft)
5.5 ± 0.5 N•m
(49 ± 4 lbf•in)
3.5 ± 0.5 N•m
(31 ± 4 lbf•in)
3.5 ± 0.5 N•m
(31 ± 4 lbf•in)
= Component must be replaced when removed.
NEW
219100893-021-100_a
219100893-021 89

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
