SeaDoo GTX Series 2022 User Manual

Section 05 ELECTRICAL SYSTEM
Subsection 02 (WIRING HARNESS AND CONNECTORS)
NOTICE
Before installing wire terminals in
the connector, ensure all terminals are prop-
erly crimped on wires. After installation of
wire terminals in the connectors, ensure they
are properly locked by gently pulling on them
as if to extract them.
DS, STS, FP, TAS, BRLS, FB,
DCC, MSL, MSR,CONNECTORS
(DELPHI/PACKARD)

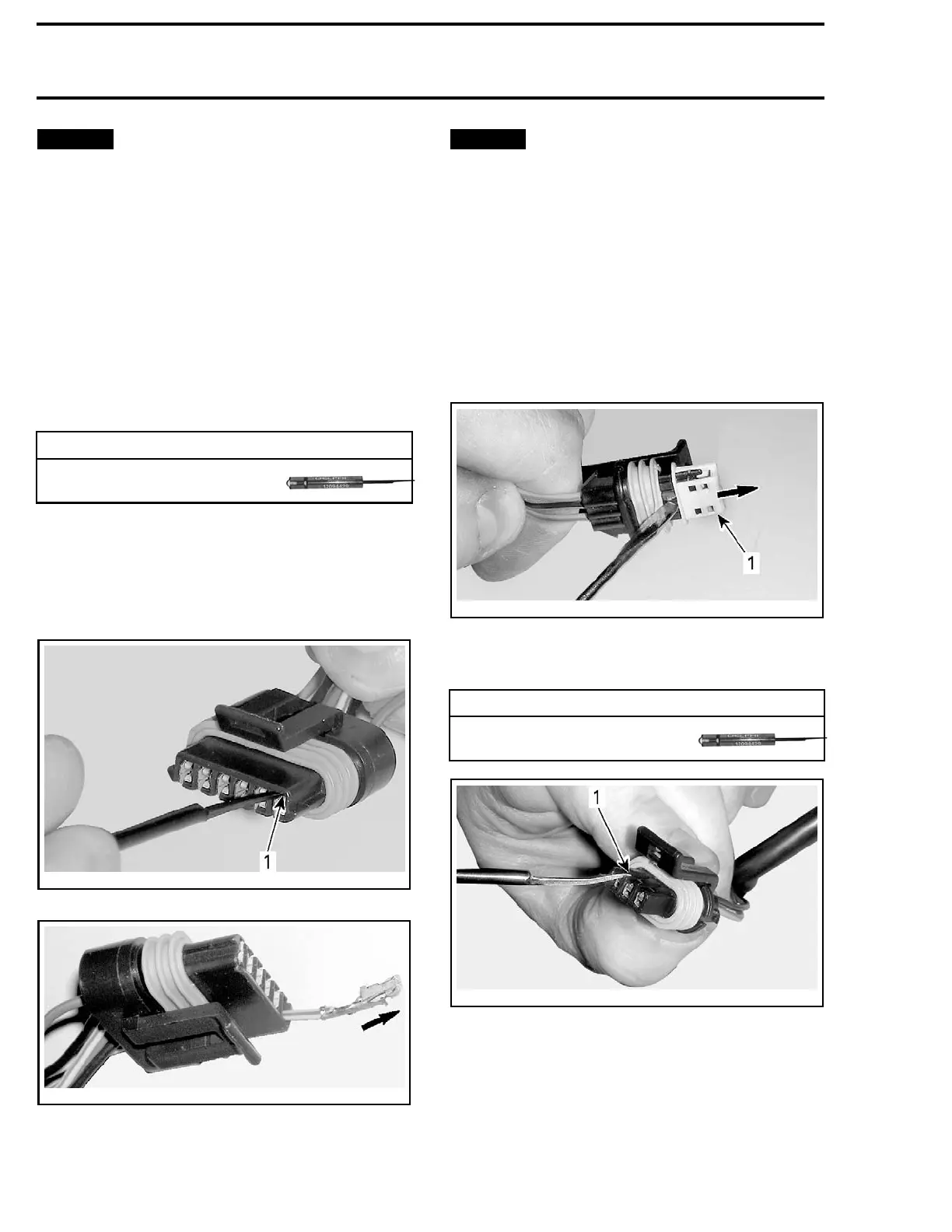

Removing the Connector Terminal
To remove a terminal (pin) from the connector, use
a special tool such as the Delphi terminal extrac-
tor.
REQUIRED TOOL
DELPHI TERMINAL
EXTRACTOR (P/N 12094429)
NOTE: Grin
ding the tool end to a taper is required.
1. Carefully insert the tool in the space provided to
release the pin lock.
2. Push the pin out the front of the connector by
pushing on the wire.
smr2009-045-014_a
1. Unlock terminal here
smr2009-045-015_a
NOTICE
Before installing terminals in the
connectors, ensure all terminals are properly
crimped on the wires. After installation of the
wire terminals in the connectors, ensure they
are properly locked by gently pushing on them
as if to extract them.
MSL, MSR CONNECTORS
(DELPHI)
Removing the Terminal
1. To remove a terminal from connector, first re-
move the locking cap.
smr2009-045-023_a
1. Pry out l
ocking cap
2. Carefully insert the Delphi terminal extractor in
the space provided to release the pin lock.
REQUIRED TOOL
DELPHI TERMINAL
EXTRACTOR (P/N 12094429)
smr2009-045-024_a
1. Unlock here
3. Gently pull on the wire to extract the pin out the
back of the connector.
116 219100963-012

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
