Section 06 STEERING AND PROPULSION
Subsection 02 (iBR, REVERSE AND VTS)

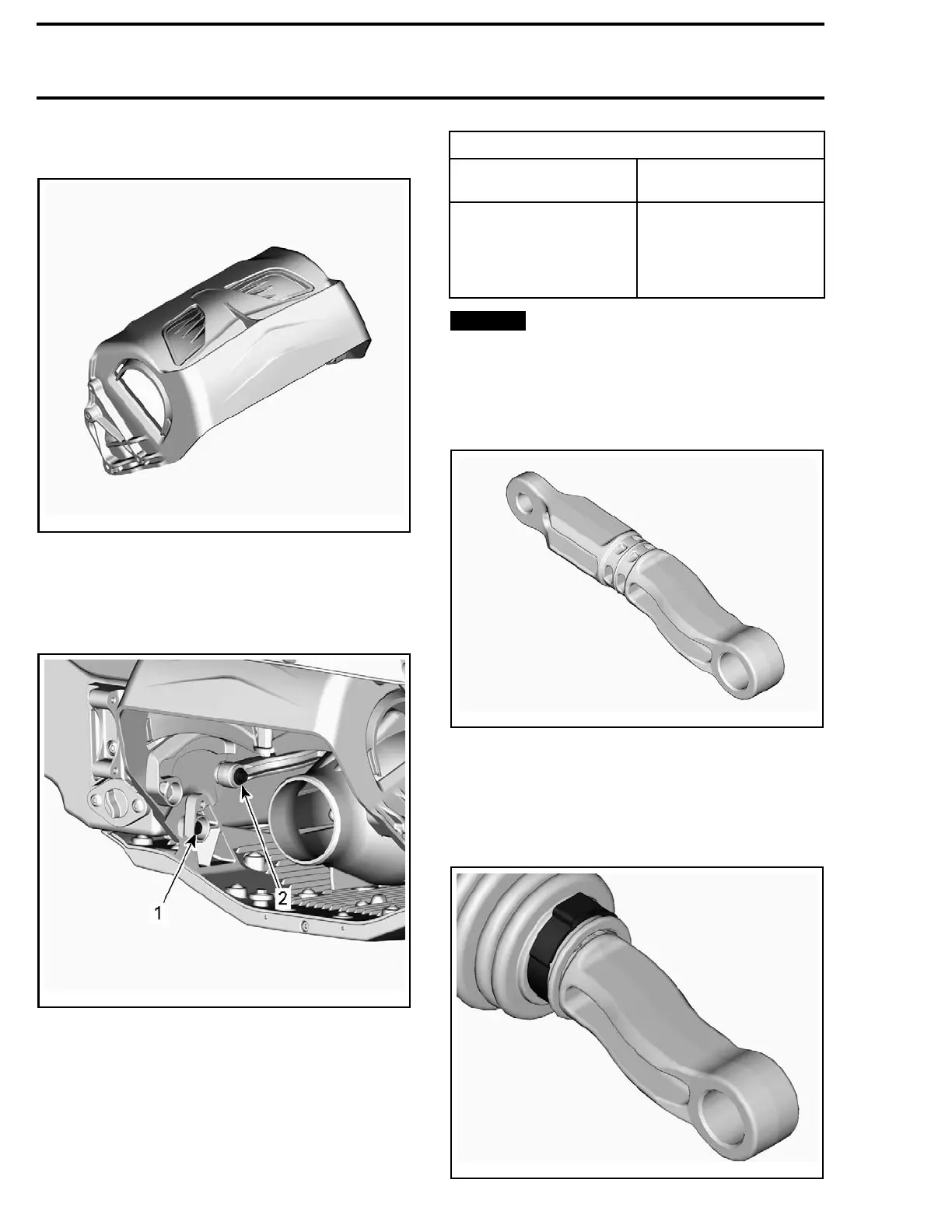

iBR REVERSE GATE
219100893-029-016_a
Removing the iBR Reverse Gate
1. Remove the iDF connecting arm retaining
screw.
2. Remove the iBR reverse gate retaining screws.
219100893-029-017_a
1. iBR reverse gate screw
2. Connecting arm screw
Installing the iBR Reverse Gate
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
TIGHTENING TOR
QUE
iBR reverse gate screw
7N•m ± 1N•m
(62 lbf•in ±9l
bf•in)
iDF con n ec ting arm
screw
27 N•m ± 1 N• m
(20 lbf•ft ± 1
lbf•ft)
+
LOCTITE 271 (RED)
(P/N 293 800 0
05)
NOTICE
Allow 24 hours for threadlocker on
retaining screws to cure
Perform
iBR
AUTO-CALIBRATION
procedure.
CONNECTING
ARM
smr2016-036-049
Removin
g the Connecting Arm
1. Remove iBR reverse gate. Refer to
iBR RE-
VERSE GATE
subsection.
2. Remove the small Oetiker clamp retaining the
connecting arm bellows.
smr2016-036-020
178 219100963-018
