SeaDoo GTX Series 2022 User Manual

Section 06 ST EE RING AND PROPULSION
Subsection 02 (iBR, REVERSE AND VTS)

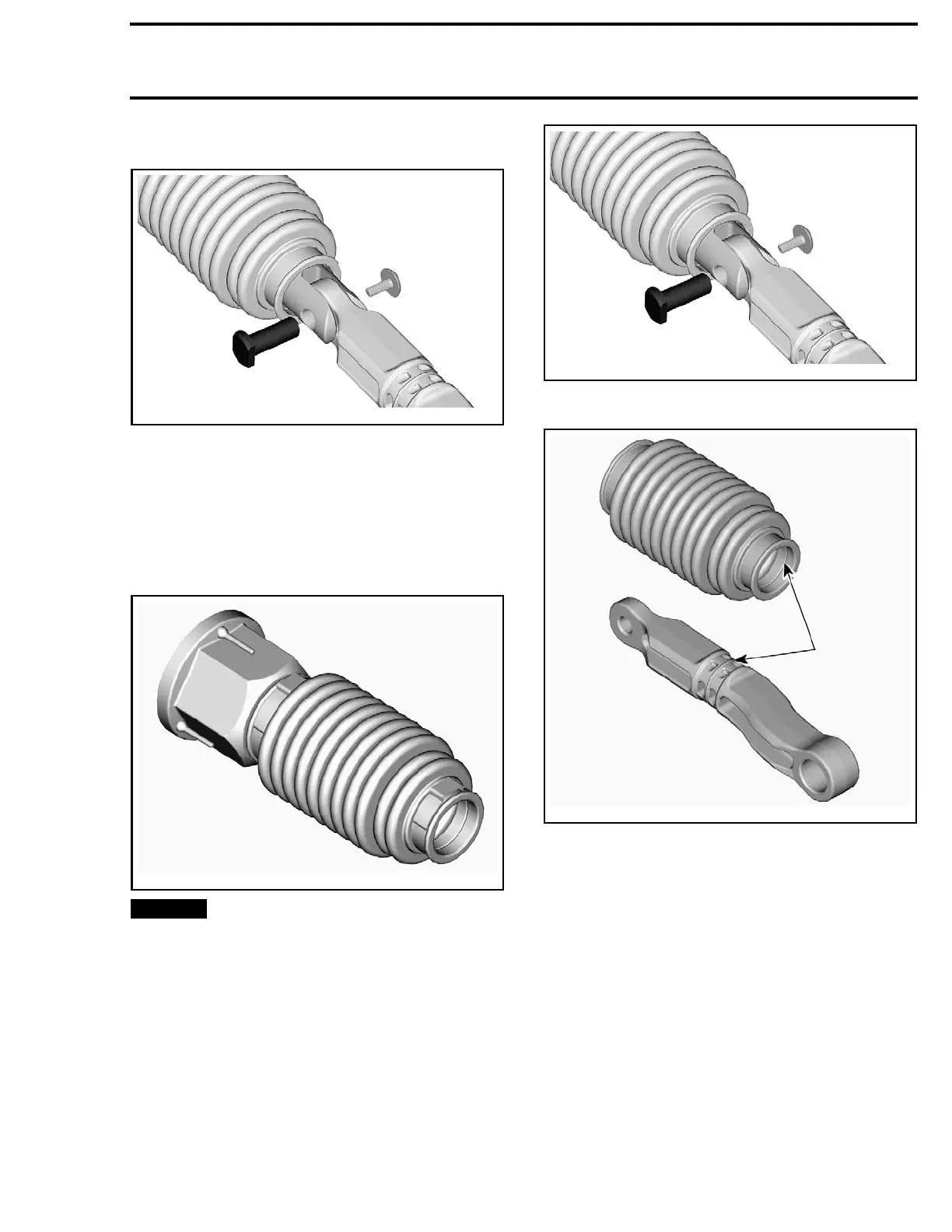

3. Remove connecting arm pin and screw.
smr2016-0
36-045
4. Remove connecting arm.
Installing the Connecting Arm
Use iBR override function to move iBR actuator to
the full down setting.
NOTE: The bellows should already be installed
and clamped on the iBR nut.
219100893-029-010_a
NOTICE
Failu
re to adhere to the sequence in
the fo
llowing steps will cause the iBR air cham-
ber to
rupture or burst and cause premature
failu
re of the iBR actuator.
1. Push the bellows back towards iBR actuator.
2. Inst
all connecting arm pin and screw.
2.1 Tighten screw.
smr2016-036-045
3. Position t
he bellows over the connecting arm.
smr2016-036-021_a
4. Compress the air chamber (attached to iBR ac-
tuator).
4.1 Clamp the Oetiker clamp on the connect-
ing arm bellows.
219100963-018 179

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
