SeaDoo GTX Series 2022 User Manual

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
1
2

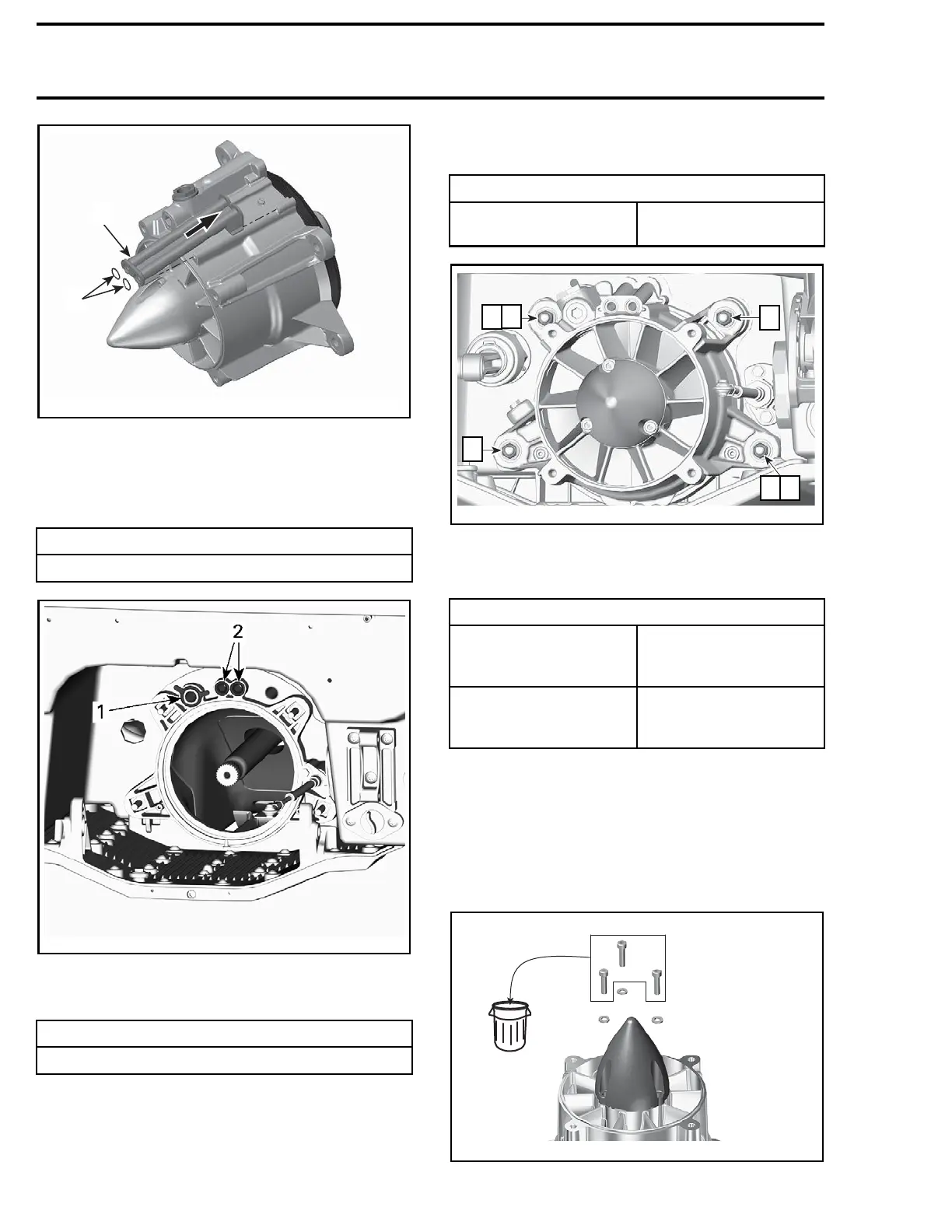

smr2016-037-008_a
1. Slide adapter onto pump
2. New O-rings here
Install new O-rings on pump support.
Apply a thin layer of Loctite on the rounded portion
of the O-rings to hold it against the support.
SERVICE PRODUCT
LOCTITE 51
8 (P/N 293 800 038)
219100893-030-002_a
1. Insta
ll new O-rings
2. O-rings (with tabs)
Generously apply grease on drive shaft s plines.
SERVICE PRODUCT
TRIPLE-GUARD GREASE (P/N 508298)
Install j et pump.
NOTE: If necessary, wiggle jet pump to engage
drive shaft splines in impeller.
Install new nuts and tighten as per table and the
illustrated sequence.
TIGHTENING TORQUE
Jet pump nuts
27 N•m ± 1 N• m
(20 lbf•ft ± 1 lbf•ft)
3
5
1
2
6
4
smr2016-037-005_b
Slightly lubricate wear ring with Lubricant and anti-
corrosive to minimize friction during initial impeller
start.
SERVICE PRODUCTS
Scandinavia
LUBRICANT AND
ANTI-CORROSIVE (EUR)
(P/N 779224)
All other countries
LUBRICANT AND
ANTI-CORROSIVE
(P/N 779168)
IMPELLER COVER
Removing the Impeller Cover
1. Remove the jet pump housing.
2. With pump housing in vertical position, remove
and discard the 3 retaining screws.
smr2016-037-010_a
190 219100963-019
