Section 06 ST EE RING AND PROPULSION
Subsection 03 (JET PUMP)
REQUIRED TOOL
PUMP PLATE (P/
N529
036 224)
Inspecting and Cleaning the Jet Pump
Housing
1. Visually inspect jet pump housing. Pay atten-
tion to the stator. Ensure the assembly is clean
and free of any debris and defects.
Do the following as applicable.
2. Blow low pre
ssure compressed air through the
pressure ou
tlet fitting and make sure it is clear.

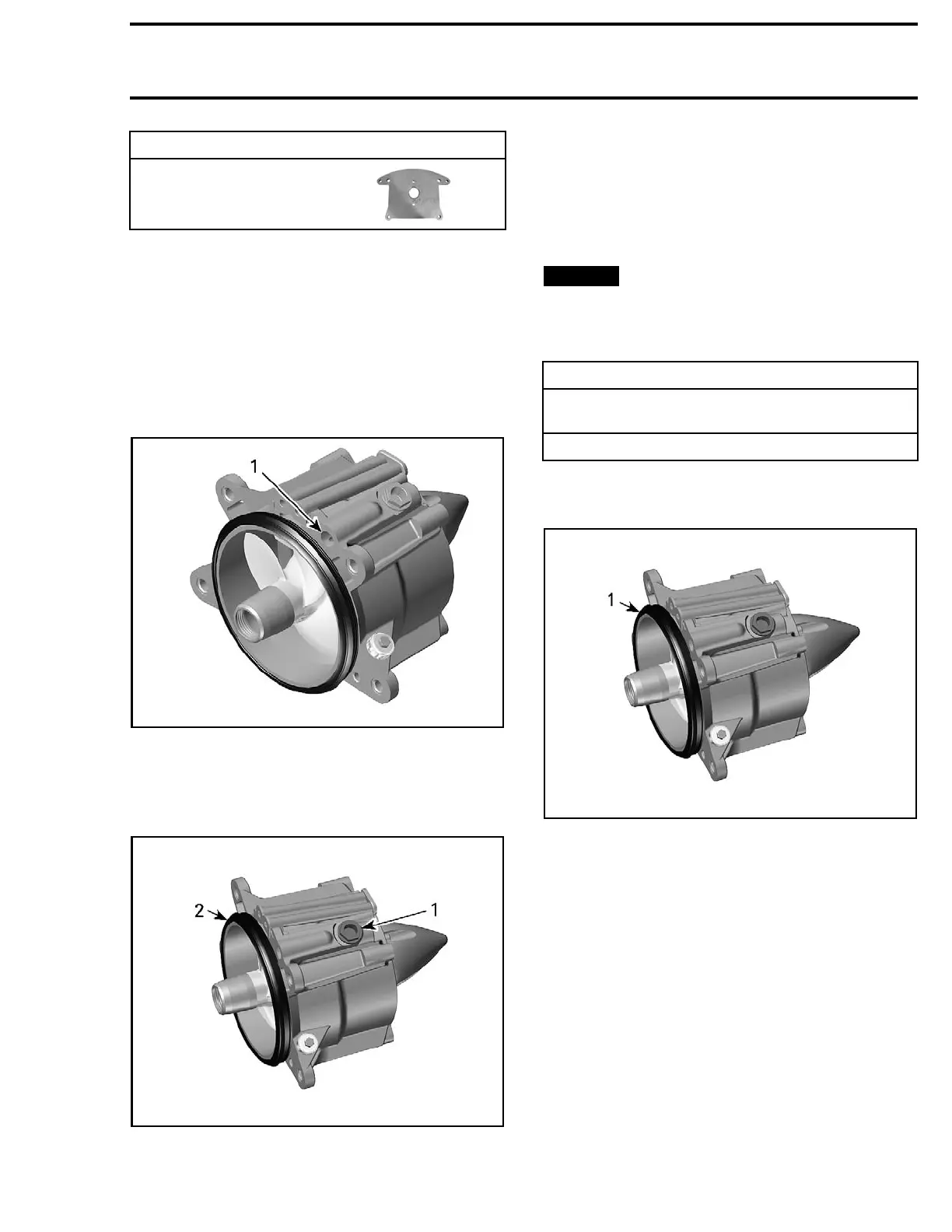

smr2016-037-006_a
1. Pressure outlet
3. Ensure cap screw is tight.
4. Ensure the neoprene seal is in good condition.
Replace as required.
smr
2016-037-007_a
1. Cap screw
2. Neoprene seal
Installing the Jet Pump Housing
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Clean impeller splines and drive shaft splines with
Clutch and pulley flange cleaner or equivalent.
Splines must be free of any residue.
NOTICE
To avoid damaging the drive shaft
finish, never use a metallic brush.
Lubricate drive shaft splines, impeller splines and
the inside of the impeller boot with grease.
SERVICE PRODUCTS
CLUTCH AND PULLEY F LAN GE CLEAN ER
PRO S1 (P/N 779244)
TRIPLE-GUARD GREASE (P/N 508298)
Ensure the neoprene seal is properly installed on
the j et pump.
smr2016-037-007_b
1. Neoprene seal
Install new O-rings then slide water outlet adapter
onto pump.
219100963-019 189
