Section 05 ELECTRICAL SYSTEM
Subsection 05 (RADIO FREQUENCY DIGITALLY ENCODED SECU-
RITY SYSTEM (RF D.E.S.S.))
TROUBLESHOOTING
DIAGNOSTIC GUIDELINES
The following is provided to help in diagnosing the
probable cause of a problem. It is a guideline and
should not be assumed to list all possible causes.
NO BEEP CODE WH
ENKEYISINSTALLED
ON ENGINE CUT-
OFF SWITCH — ENGINE
CAN NOT BE STA
RTED
1. Gauge shuts-
down after its WOW test: Defec-
tive engine cut-off switch
- Check engine cut-off switch. Refer to IGNTION
SYSTEM subsection.
NO BEEP CODE
WHENKEYISINSTALLED
ON ENGINE CU
T-OFF SWITCH — ENGINE
CAN BE START
ED
1. Defective
gauge beeper
- Check gauge beeper. Refer to INFORMATION
CENTER.
GAUGE DISPLAYS "READING KEY" AND
THERE IS NO KEY INSTALLED ON ENGINE
CUT-OFF SWITCH
1. Gauge shuts-down after 3 minutes: Defective
engine cu
t-off switch
- Check engine cut-off switch.
KEY NOT R
EAD (CONDITION CAN BE
DUPLICA
TED WITH A MAGNET ON THE
D.E.S.S
.POST)
1. Damaged RFID chip
2. No voltage at RFID-D connector
3. No voltage at RFID-C connector
-Tryanewkey
- Refer t
o W IRING DI A GRAM and / or I GNI TION
SYSTEM and troubleshoot D.E.S.S. / Engine Cut-
Off Switch
KEY NO
T PRESENT (CONDITION CAN BE
DUPLI
CATED BY UNPLUGGING THE RFID
CONNE
CTOR)
1. No key installed
2. No ground at RFID-A connector
3. No vo
ltage at RFID-B connector
4. No voltage at RFID-C connector
5. No voltage at RFID-D connector
- Refer to WIRING DIAGRAM and / or IGNITION
SYSTEM and troubleshoot D.E.S.S. / Engine Cut-
Off S witch
INVALID KEY
1. Key not programmed to ECM
-Programkey
PROCEDURES
D.E.S.S. KEY
D.E.S.S. Key Recognition
To allow key recognition, carry out the following
steps:
1. Briefly press the START/STOP button to w ake
up the ECM.
2. Securely install the tether cord on watercraft
engine cut-off switch.
3. Press and hold the START/STOP button to s tart
engine.
Programming D.E.S.S. Keys
1. Connect the vehicle to the BRP diagnostic soft-
ware (BUDS2). Refer to
COMMUNICATION
TOOLS
subsection.
2. Briefly press START/STOP button to power the
ECM.

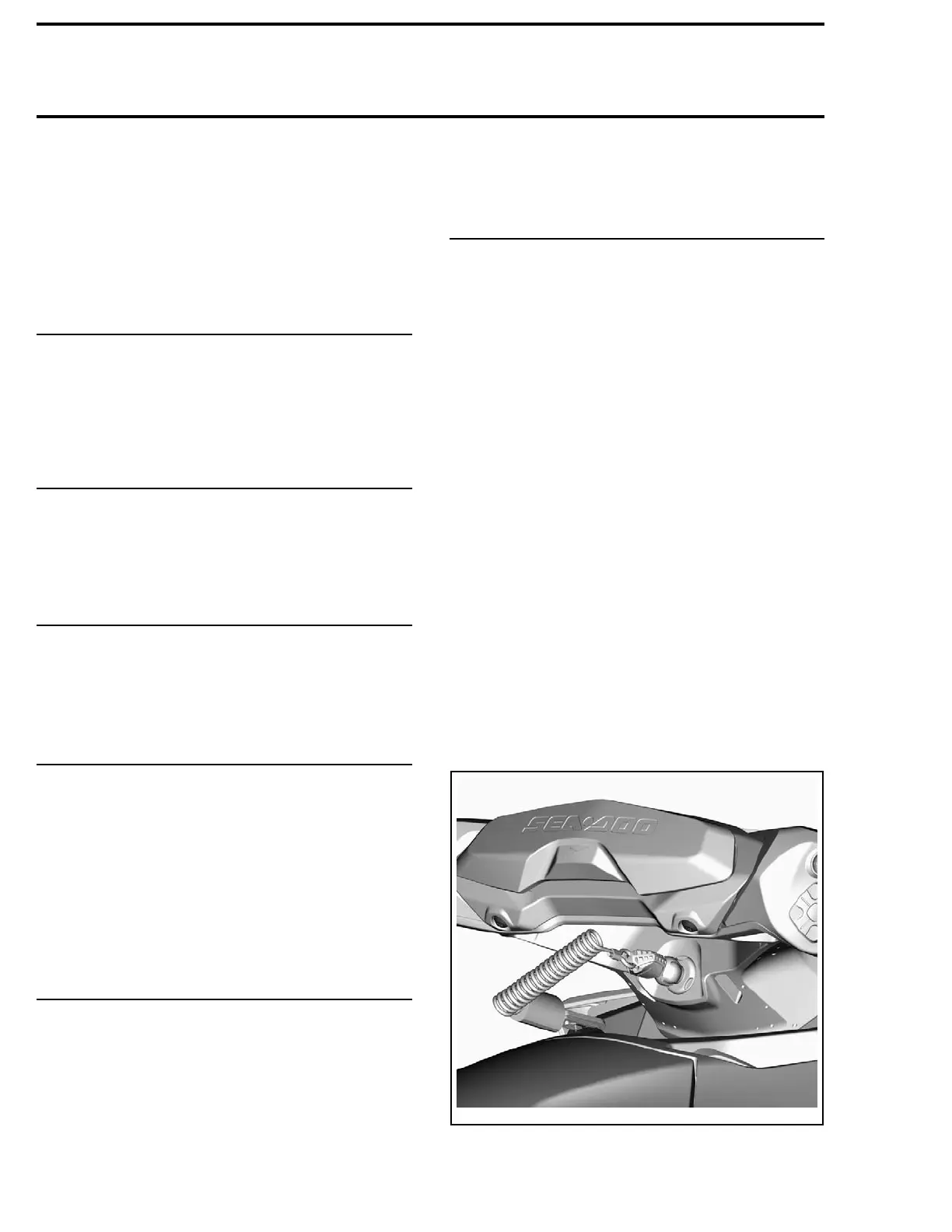

3. Install a tether cord on the engine cut-off switch
to program a D.E.S.S. key.
2191
00893-026-001_a
4. Go to the key page.
136 219100893-026
