Section 06 STEERING AND PROPULSION
Subsection 02 (iBR, REVERSE AND VTS)
NOTICE
Do not install an exhaust ventilation
hose in the iBR gate area or damage may oc-
cur when the iBR gate moves downward dur-
ing operation.
NOTICE
– Ensure there are no tools or other object that
may interfere with the iBR gate movement.
– Do not run engine for more than 2 minutes
out of water or damage may occur.
WARNING
The person o
bserving the iBR gate move-
ment must st
and to the side of the stern well
clear of the
iBR gate and pump nozzle in full
view of the o
perator.
Test out of Water
NOTICE
This procedure must be completed
within one minute of the engine starting.
1. Connect a water hose to the watercraft to pro-
vide exhaust system cooling when operating
engine. DO NOT open water tap yet.
2. Start engine, open water tap and let idle.
NOTE: If iBR gate was not in the neutral position,
it will move to the neutral position on engine start
up.
3. Depress the throttle lever slightly and visually
confirm the iBR gate moves to the forward po-
sition (up to the VTS trim position), then release
throttle. The iBR gate must remain in the for-
ward position.
4. Depress the iBR lever fully a nd confirm the iBR
gate moves to the full down position.
5. Release the iBR lever completely and confirm
the iBR gate moves to the neutral position.
6. Close water tap and shut engine off.
7. Remove water hose from vehicle.
Test with Watercraft on a Waterway
1. Start engine.
NOTE: If iBR gate is not in the neutral position be-
fore the engine start, it will move to the neutral
position on engine start up.
2. Depress the throttle lever slightly, then release
it. Forward movement of the watercraft c on-
firms the iBR gate has moved to the forward
position.
3. Depress the iBR lever fully. Rearward move-
ment of the w atercraft confirms the iBR gate
has moved to the reverse position.
4. Release the iBR lever completely. Reverse
thrust should cease and the watercraft should
continue to drift rearward on momentum.
5. Apply a small amount of forward thrust to stop
rearward velocity, then tap the iBR lever to re-
turn the iBR gate to neutral.
6. Shut engine off.
PROCEDURES

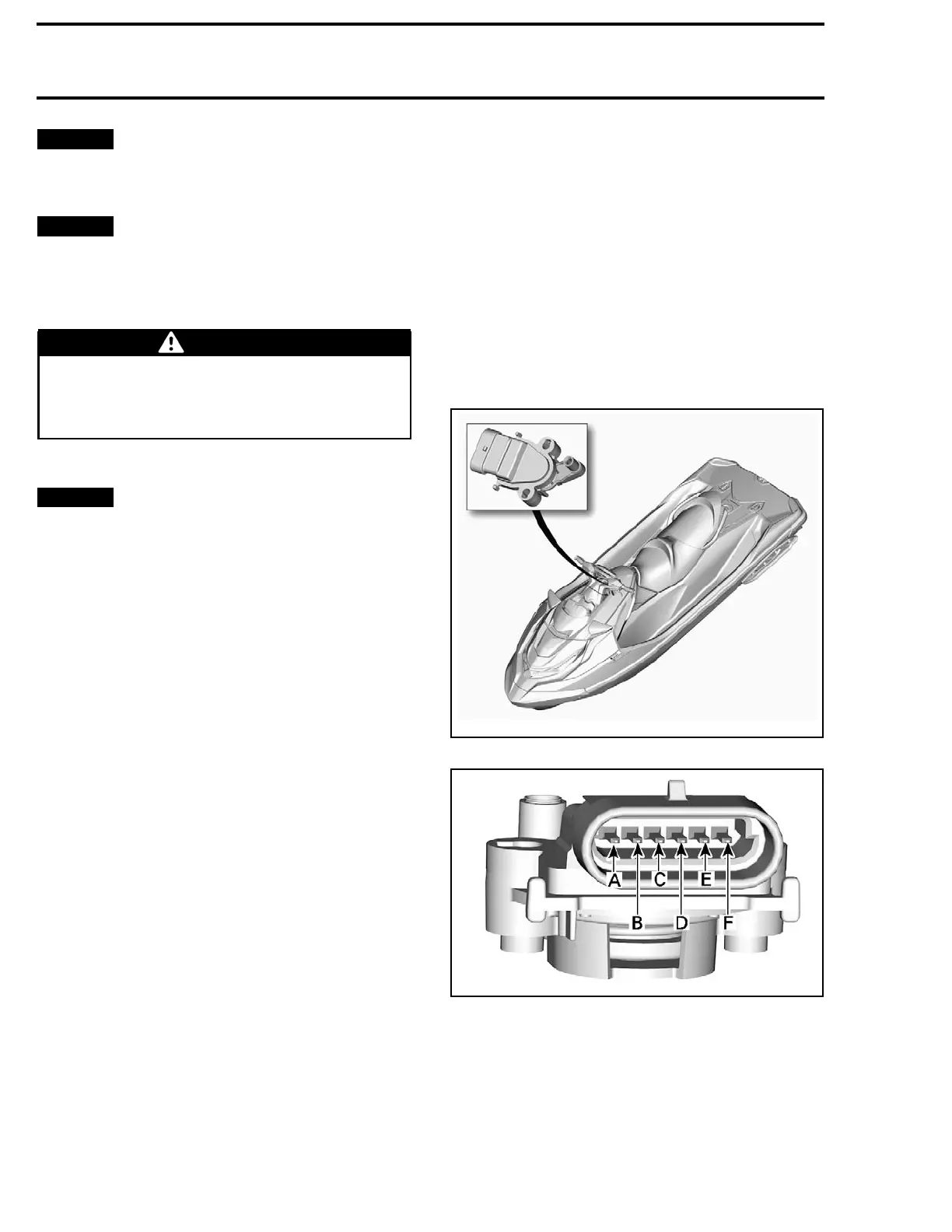

SWITCHES LOCATION AND
PIN-OUT
2191008
93-029-011_a
BRLS LOCATION
smr20
14-119-008_a
BRLS PINOUT
174
219100963-018
