Section 06 STEERING AND PROPULSION
Subsection 02 (iBR, REVERSE AND VTS)
TESTING CAN COMMUNICATION

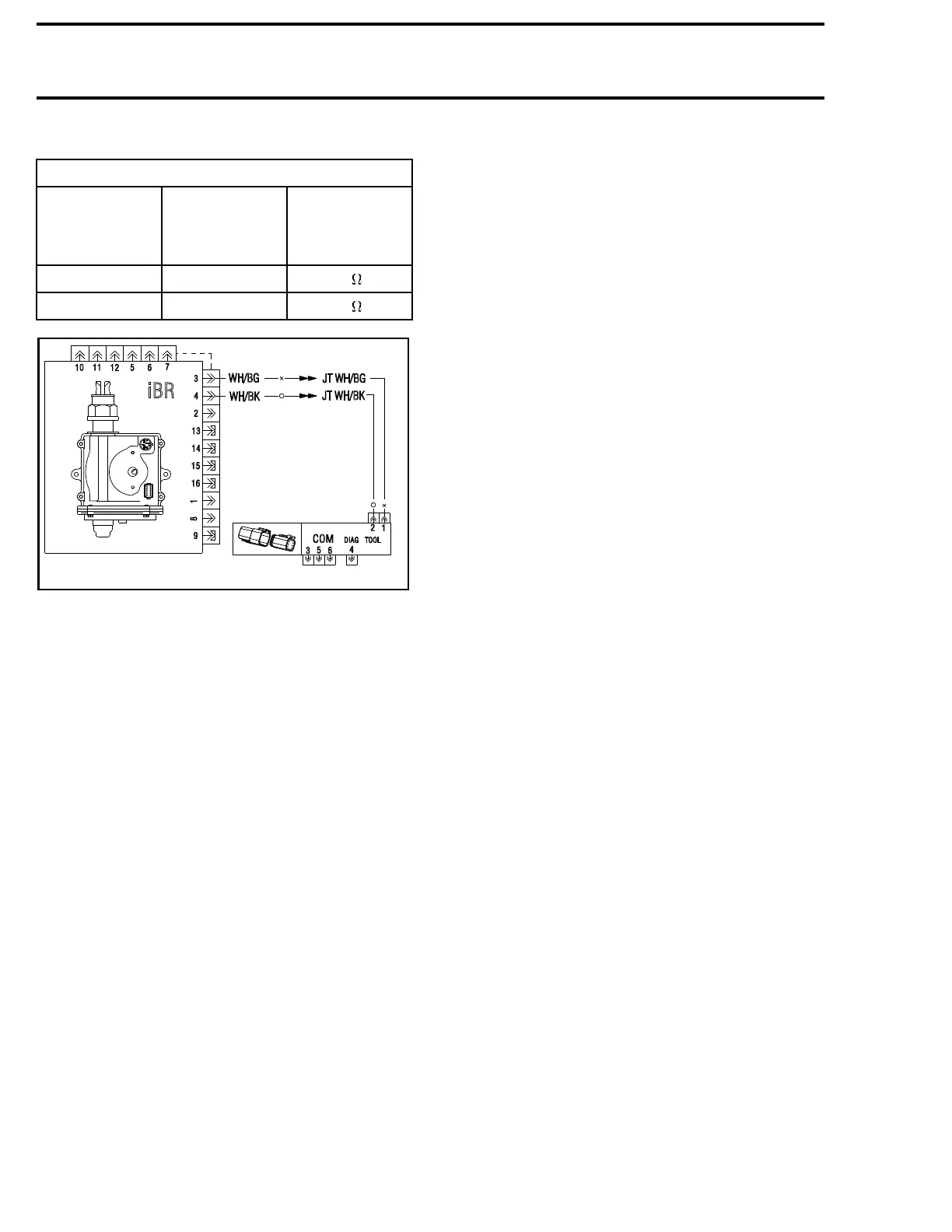

CAN WIRE RESISTANCE TEST
IBR
ACTUATOR
CONNECTOR
PIN
COM
CONNECTOR
PIN
SPECIFIED
RESISTANCE
iBR-3
COM-1
0
iBR-4
COM-2
0
smr2014-119-011_a
Refer to
PROCEDURES
in this subsection for
wiring diagram and pinouts.
Refer to
CONTROLLER AREA NETWORK (CAN)
subsection for additional information.
