SeaDoo GTX Series 2022 User Manual

Section 06 ST EE RING AND PROPULSION
Subsection 04 (DRIVE SHAFT)

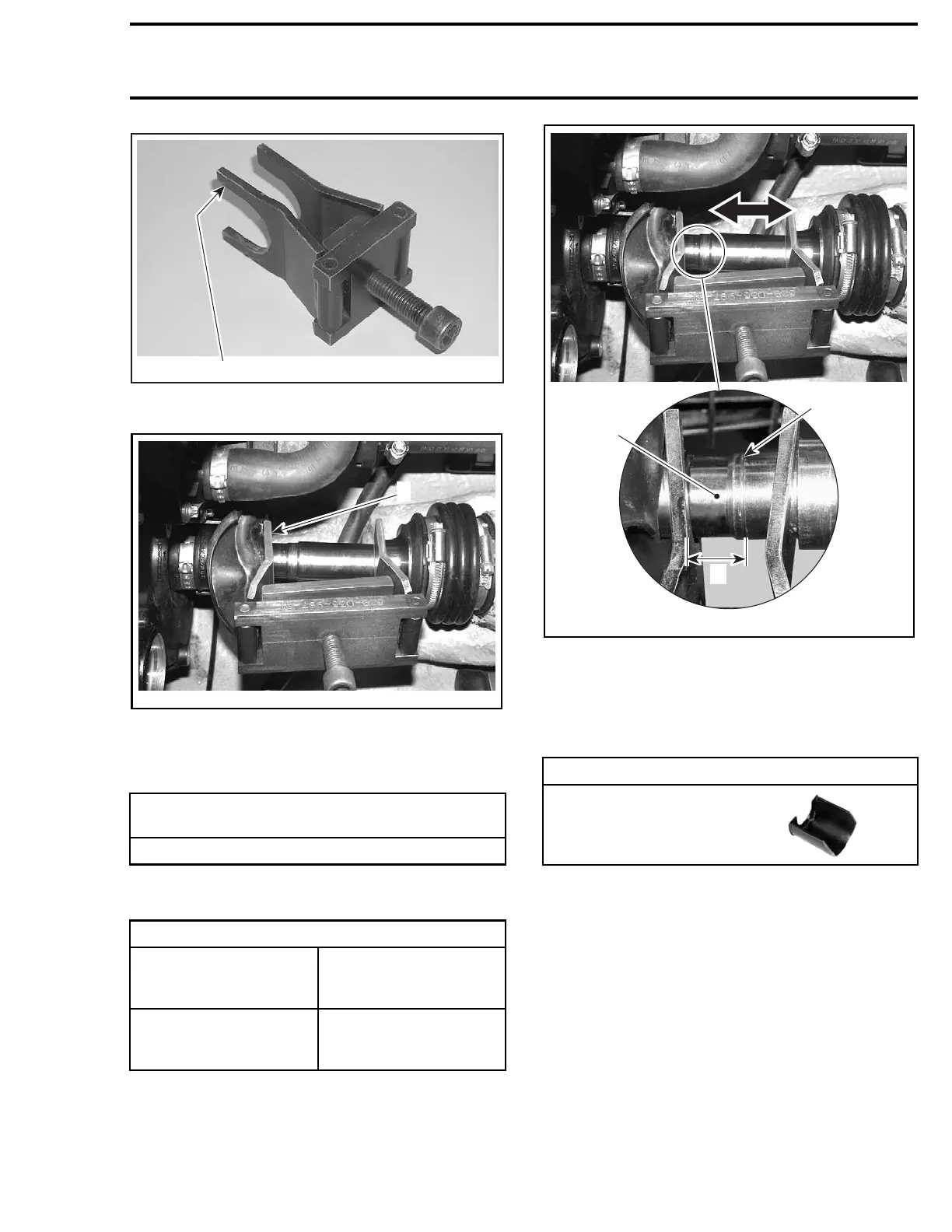

1
F18I0OA
TYPICAL
1. Largest opening on PTO seal side
1
smr2011-036-030_a
TYPICAL
1. Largest opening here
7. To expose the O-ring contact area, tighten tool
screw until the following gap is obtained.
GAP BETWEEN TELLTALE GROOVE AND
TOOL EDGE
18 mm (11/16 in)
8. Lubricate O-ring contact area with anti-corro-
sive lubricant.
SERVICE PRODUCT
Lubricant and
anti-corrosive
LUBRICANT AND
ANTI-CORROSIVE (EUR)
(P/N
779224)
All other countries
LUBRICANT AND
ANTI
-CORROSIVE
(P/N 779168)
NOTE: This is necessary to ease drive shaft re-
moval later in this procedure.
1
2
A
smr2011
-036-031_a
TYPICAL
1. Telltale groove
2. Lubrica
te this area
A. 18 mm (11/16 in)
9. Remove the floating ring tool.
10. Install the following tool to PTO seal assembly.
REQUIRED TOOL
PTO SUPPORT TOOL
(P/N 5
29 035 842)
219100963-020 203

SeaDoo GTX Series 2022 Specifications

General

Engine Type	Rotax 1630 ACE
Engine Displacement	1630 cc
Seating Capacity	3
Hull Material	Fiberglass
Fuel Capacity	70 L
Length	345.1 cm
Width	125.5 cm
Fuel Type	Unleaded gasoline
Hull Type	ST3 Hull
