Section 04 FUEL SYSTEM
Subsection 02 (FUEL TANK AND FUEL PUMP)
6. Reinstall the fuel pump module. Refer to
IN-
STALLING THE FUEL PUMP
in this subsection.
FUEL TANK
Inspecting the Fuel Tank
1. Remove storage bin. Refer to
BODY
subsec-
tion.
2. Remove seats and engine service cover for ac-
cess to aft end of fuel tank.
3. Inspect fuel tank retaining straps for wear,
cracks or any other damages. Inspect strap
clip anchors.
4. Inspect fuel tank for wear caused by any ab-
normal contact or rubbing with other compo-
nent(s).
5. Disconnect fuel filler hose from fuel tank.
6. Inspect fuel tank filler hose for wear, cracks or
other damages.
7. Visually inspect the inside and outside of the
fuel tank filler necks for crack(s). If crack(s) are
found, replace fuel tank.
8. With your fingers, feel the inside and outside
surfaces of fuel tank, especially near the filler
neck.
9. Flex fuel tank neck to ensure there are no hid-
den cracks.
NOTE: A fuel tank is comprised of 2 components:
the tank and the filler neck. The filler neck is in-
jection molded and the tank is then blow molded
over the neck. During the molding process, a
small molding seam may appear on the inner
side of the neck at approximately 4 mm (5/32 in)
from the base of the neck. It is normal to have a
molding seam and it should not be confused with
a crack.

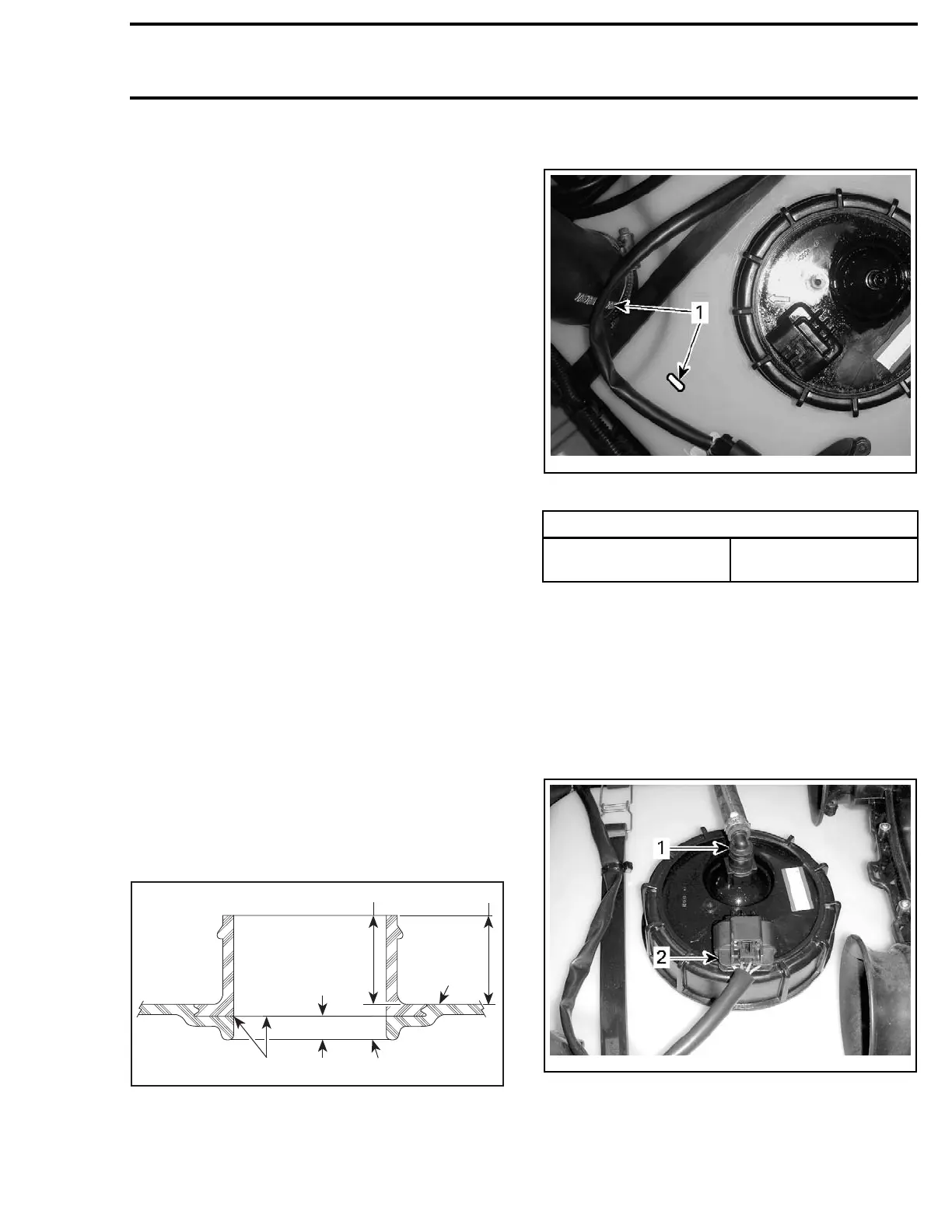

F07F06A
4
2
1
A
3
5
1. Tank upper surface area
2. Ins
pect outer upper surface at filler neck
3. Normal molding seam
4. Inspect upper surface area i nside filler neck
5. Bas
e of filler neck
A. Approx. 4 mm (5/32 in)
10. Install filler hose and torque retaining clamps.
smr2012-027-012_b
INDEXING W
ITH FUEL TANK
1. Align mark with the writing o n hose
TIGHTENING TORQUE
Filler hose retaining
clamps
3.5 N•m (31 lbf•in)
11. Reinstall all other removed parts. Refer to ap-
propriate subsection.
Removing the Fuel Tank
1. Remove front storage bin. Refer to
BODY
sub-
section.
2. Siphon fuel tank.
3. Disconnect fuel pump connections.
smr2012-027-010_b
1. Quick connect fitting (high pressure fuel hose)
2. Ha
rness connector
4. Disconnect filler hose from fuel tank.
NO
TE: Removing retaining screws of the filler
ne
ck may help to disconnect hose from fuel tank.
219100893-021 103
