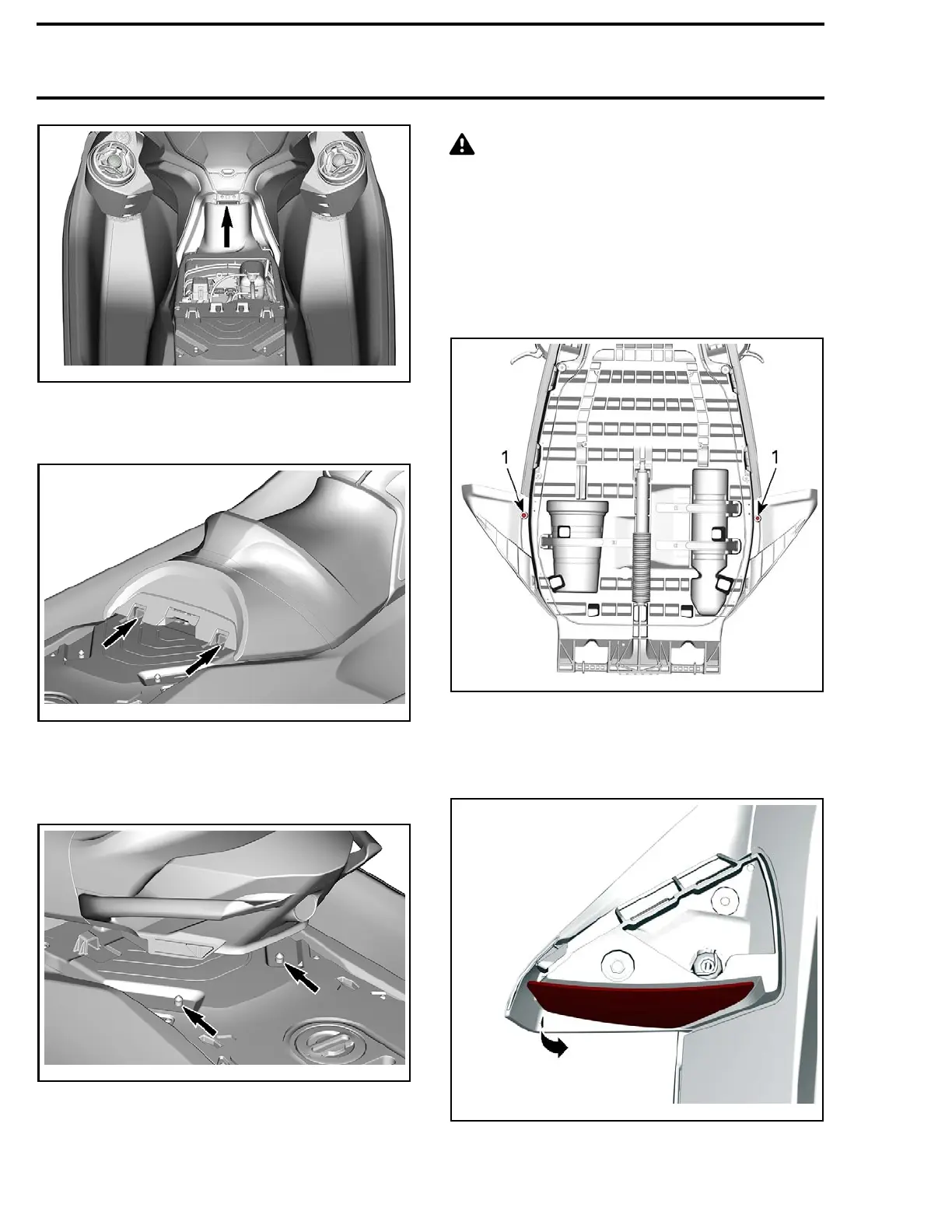

Section 07 BODY AND HULL
Subsection 01 (BODY)
219001878-021_a
1. Seat retainer
Insert the forward part of the rear seat into the
retainers.
2190018
78-032_b
1. Seat retainers
Align the seat latch with the latch pin and firmly
press down on the rear portion of the seat to lock
it in place.
219001878-023_a
LATCH PINS
Pull up on the rear portion of the seat to ensure it
is properly latched.
CAUTION Ensure the latch is properly
locked onto the pin.
MIRRORS
Replacing the Mirror
1. Lift handlebar.
2. Open storage compartment.
3. Remove mirror cover
219100893-032-708_a
1. Mirror c
over re taining screw
4. Slightly heat mirror with heat gun and not open
flame.
5. Push at
the back of mirror to remove it.
219100893-032-709_a
6. Properly clean outer skin surface of any glue
residue.
222 219100963-021
