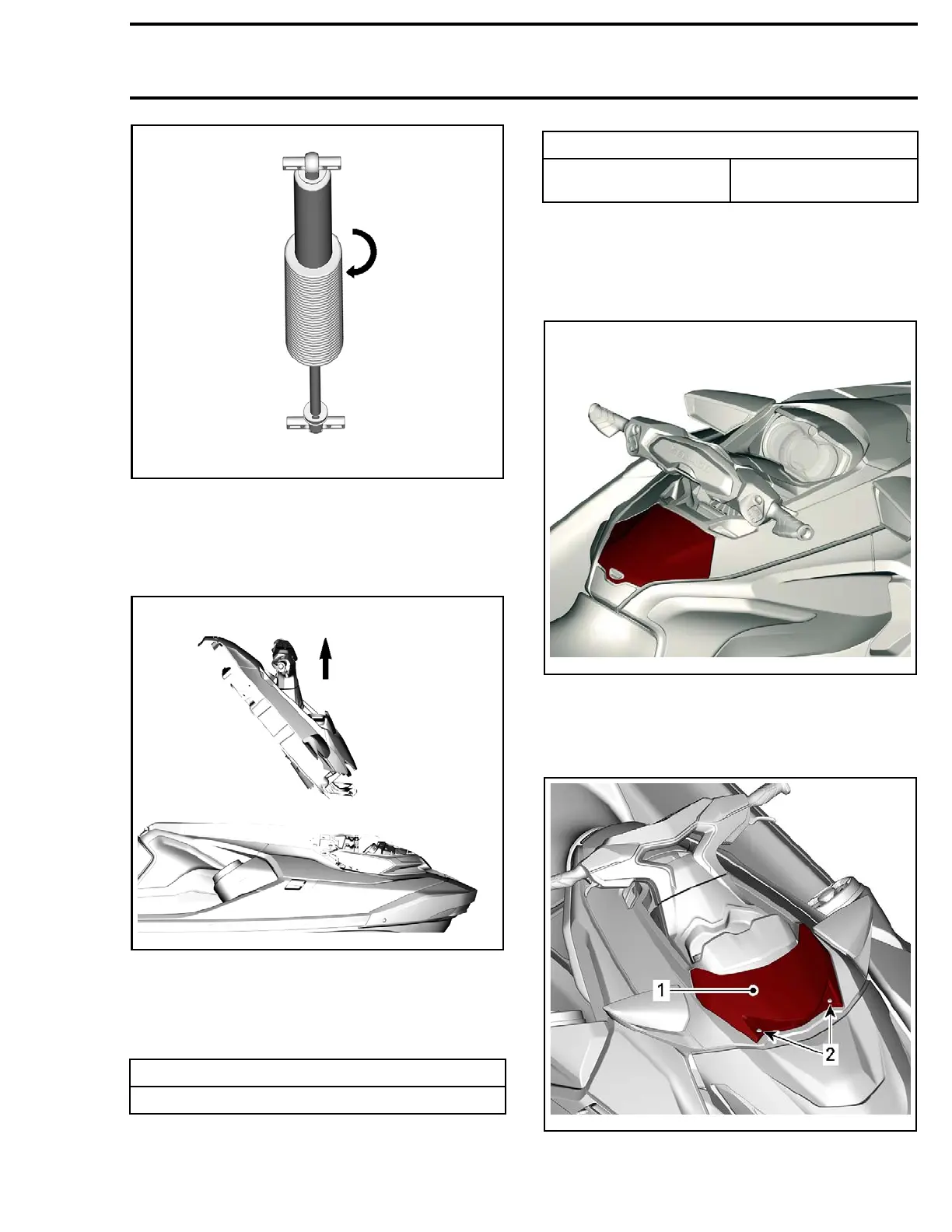

Section 07 BODY AND HULL
Subsection 01 (BODY)
219100893-032-702_a
4. Remove top cover.
5. Unplug the electrical connector and steering ca-
ble, refer to
STEERING
section..
6. Pull up cover to remove it.
219100893-032-704_a
Inst
alling Storage Compartment Cover
The installation is the reverse of the removal pro-
cedure. However, pay attention to the following.
Apply Loctite on threads of shock absorber body.
SERVICE PRODUCT
LOCTITE 414 (P/N 413 705 800)
Tighten manually the attachment on gas shock.
Install cover on vehicle.
TIGHTENING TOR
QUE
Hinge screw s
5.5 N•m ± 0.5 N•m
(49 lbf•in ±4l
bf•in)
Adjust the alignment of the s teering, refer to
STEERING
section.
GLOVE BOX COVER
219100893-032-002_a
RemovingtheGloveBoxCover
1. Move steering in its upper position.
2. Remove top cover.
219100893-028-001_a
1. Top
cover
2. Top cover retaining crews
219100963-021 219
