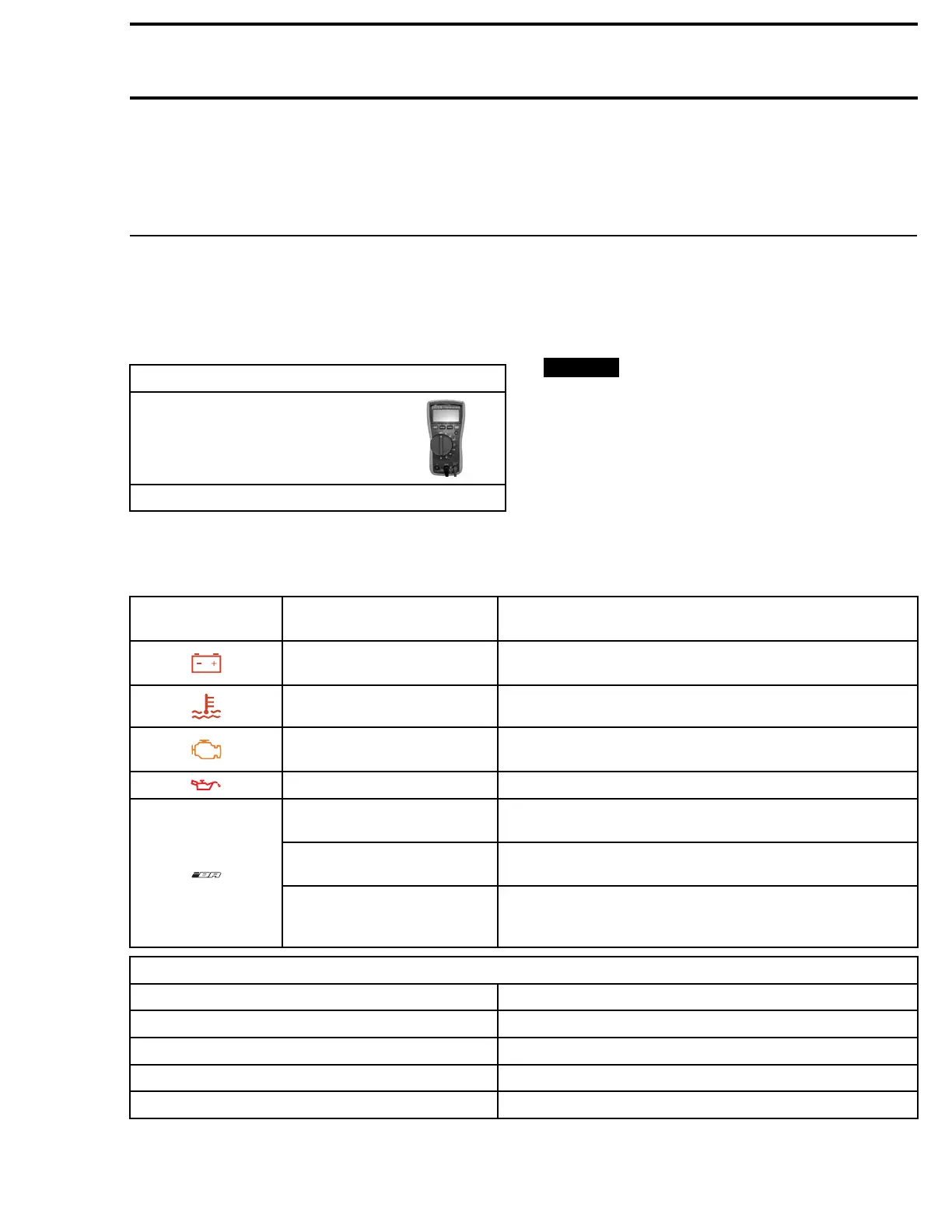

Section 05 ELECTRICA L SYSTEM
Subsection 06 (INFORMATION CENTER)
INFORMATION CENTER
SERVICE TOOLS
Description Part Number Page
FLUKE 115 MULTIMETER ............... ............................................. 529 035 868 ......................................... 139
GENERAL
Most of the electrical tests require the following
tools.
REQUIRED TOOLS
FLUKE 115 MULTIMETER
(P/N 529 035 868)
Test light
Refer to
WIRING DIAGRAM INFORMATION
sub-
section for diagnostic tips on troubleshooting
electrical problems.
NOTICE
It is recommended to always discon-
nect the battery when replacing any electrical
component. Always disconnect battery as
specified, BLACK (-) cable first. Do not place
tools on battery.
INDICATOR LIGHTS AND
MESSAGE DISPLAY
INFORMATION
Important information about vehicle condition is displayed on the multifunction gauge. When starting the
engine, always look at the gauge for any indicator lamps or special messages.
INDICATOR LIGHT
/ ICON (ON)
MESSAGE DISPLAY DESCRIPTION
LOW or HIGH BATTE
RY
VOLTAGE
Low/high battery v oltag e
HIGH TEMPERATURE
Engine or exhaust sys tem overheating
CHECK ENGINE or L
IMP
HOME MODE
Check eng ine (mi
nor fault req. maint.) or
LIMP HOME MODE (major eng. fault)
LOW O IL PRESSURE
Low oil pressure
IBR MODULE ERROR
Light is steady with a buzzer and a check engine light: iBR
system fault (r
efer to an au th orized Sea-Doo dealer)
_
Light is flashing: iBR system fault (refer to an authorized
Sea-Doo deale
r)
_
Light is steady with no buzzer:
iBR system sti
ll functional but needs to be
inspected by an authorized Sea-Doo dealer
MESSAGE DISPLAY INFORMATION
HIGH EXHAUST TEMPERATURE
High exhaust temperature detected
HIGH ENGINE TEMPERATURE
High engine temperature detected
CHECK ENGINE
Engine system malfunction or maintenance required
LIMP HOME MODE
Major fault de tected, engin e power limited
FUEL SENSOR FAULT
Fuel level sensor fault
219101047-001 139
