SeaDoo GTX Series 2022 - Gelcoat, Decals and Carpets; Hood; Procedures

Section 07 BODY AND HULL
Subsection 01 (BODY)
PROCEDURES
GELCOAT, DECALS AND
CARPETS
For information and repair, refer to CLEANING
AND REPAIR
subsection.

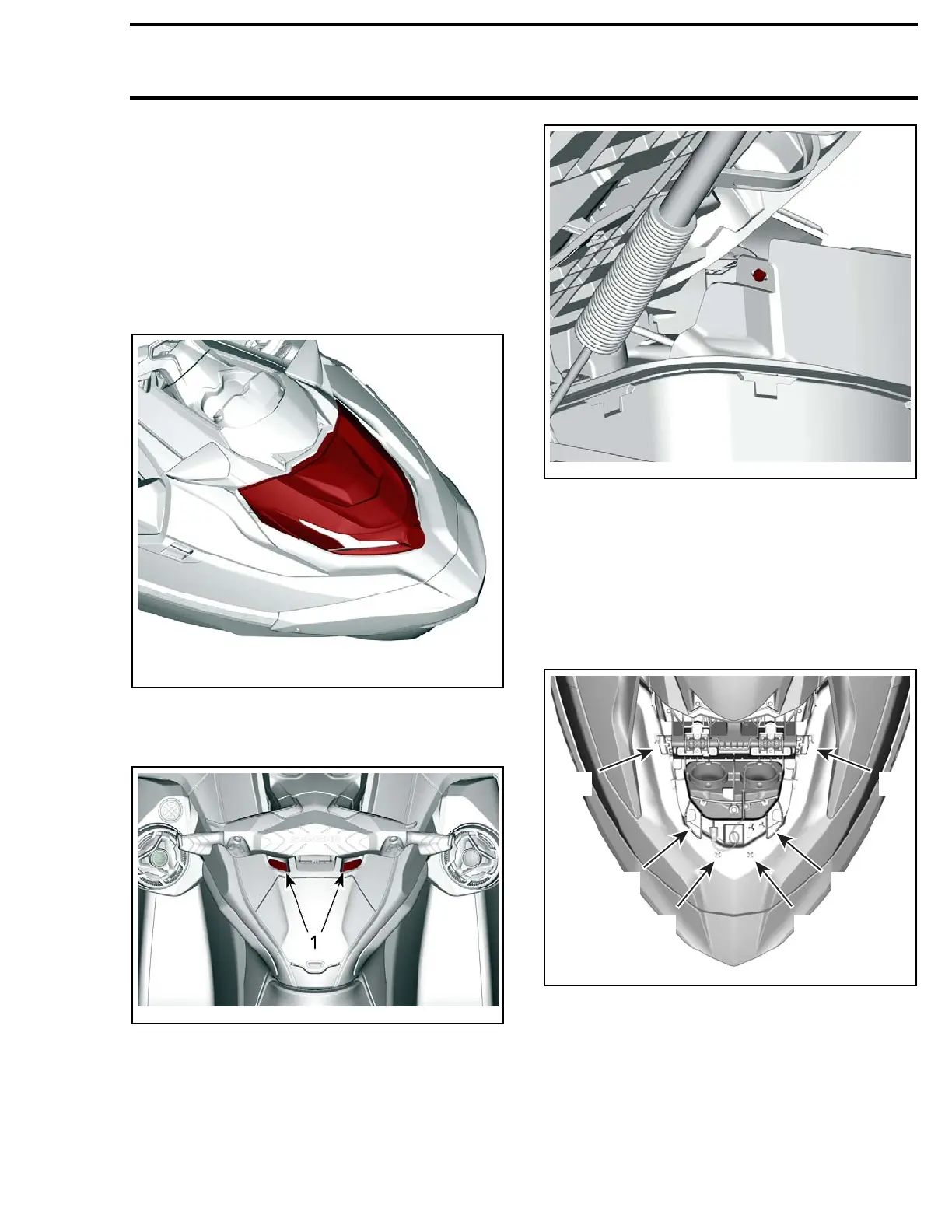

HOOD
219100893-032-700_a
Removing Hood
1. Open storage cover.
219001878-701_a
1. Stor
age cover release buttons
2. Remove side retaining screws on both sides.
219100893-032-003_a
3. Remove hood by pulling it up and with a for-
ward motion.
Installing Hood
The installation is the reverse of the removal pro-
cedure, however pay attention to the following.
1. Ensure the hood is in appropriate position be-
fore installing the side retaining screws.
1
2
3
1
2
3
2191
00693-021-100a
1. Retainer
2. Front attaching point
3. Rear attaching point
2. The hood’s front tabs must be properly inserted
under both attachment points.
219100963-021 217
