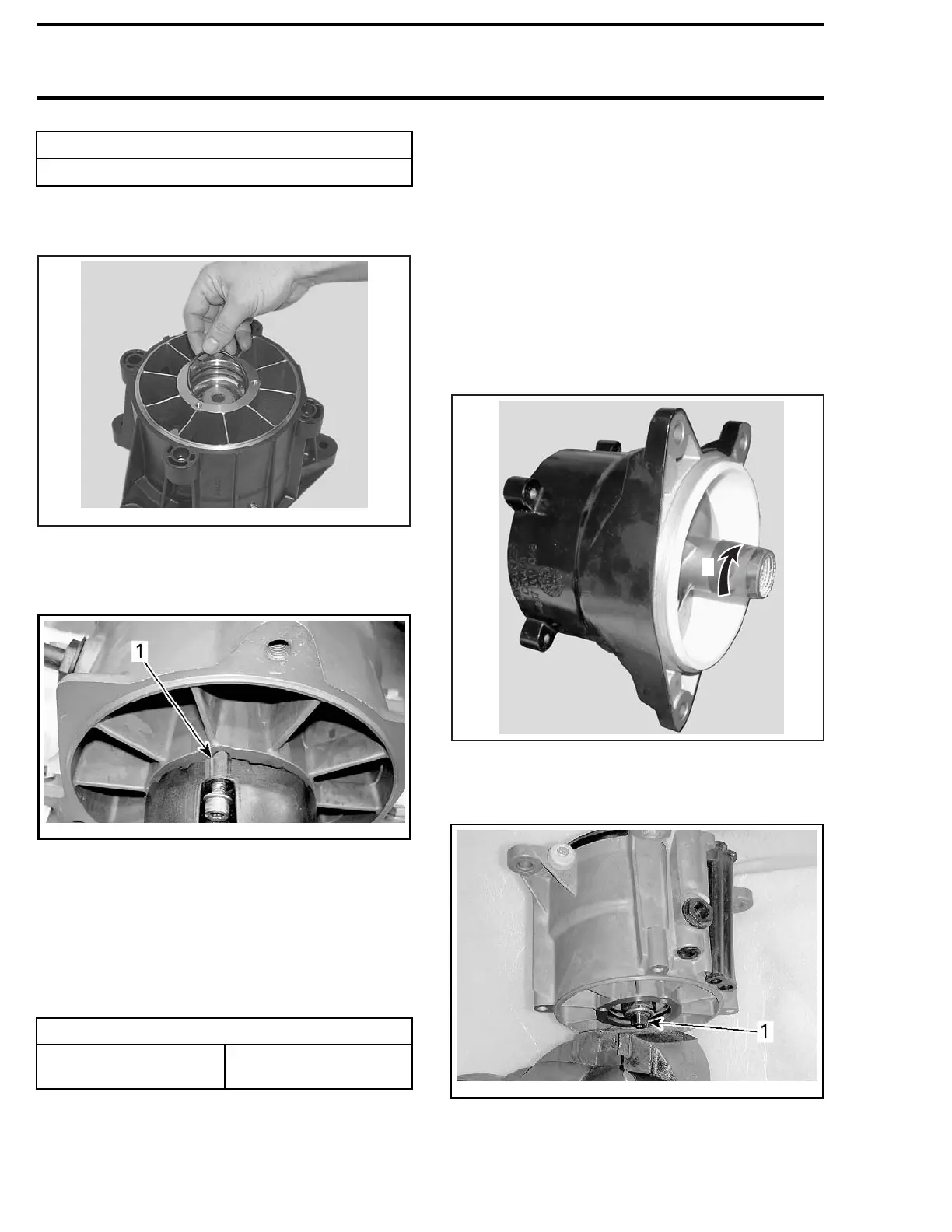

Section 06 STEERING AND PROPULSION
Subsection 03 (JET PUMP)
SERVICE PRODUC
T
JET PUMP BEARING GREASE (P/N 293 550 032)
2. Install O-rin
gs in their respective groove and
make sure they
are properly lubricated.
F18J0NA
TYPICAL
3. Install impeller c over by aligning the cover index
mark with the pump top fin as shown.
sdd20
09-001-114_c
1. Alignmarkwithtopfin
NOTE: Cover c an only be installed in one position
as screw holes are not located symmetrically.
4. Secure cover with NEW self-locking screws.
NOTE:
Push cover against pump housing while
alte
rnately tightening screws. Make sure O-rings
are p
ositioned correctly and they are not damaged
when
pushing the cover.
TIGHTENING TORQUE
Cover screw
7.5 N•m ± 0.5 N•m
(66 lbf•in ±4lbf•in)
IMPELLER
Removing the Impeller
NOTE: If impeller s haft is to be disassembled,
loosen the impeller shaft nut prior to removing
the i mpeller.
1. Remove jet pump housing. Refer to
JET PUMP
HOUSING
in this subsection.
2. Remove impeller cover. Refer to
IMPELLER
COVER
in this subsection.
3. Remove impeller boot by turning it clockwise
(LH threads).
F19J06A
1
TYPICAL
1. Unscrew clockwise
4. Mount the flat sides of impeller shaft in a vise.
smr2009-006-005_a
TYPICAL
1. Flat side
5. Unscrew the impeller c ounterclockwise using
the required tool.
