Section 06 ST EE RING AND PROPULSION
Subsection 03 (JET PUMP)

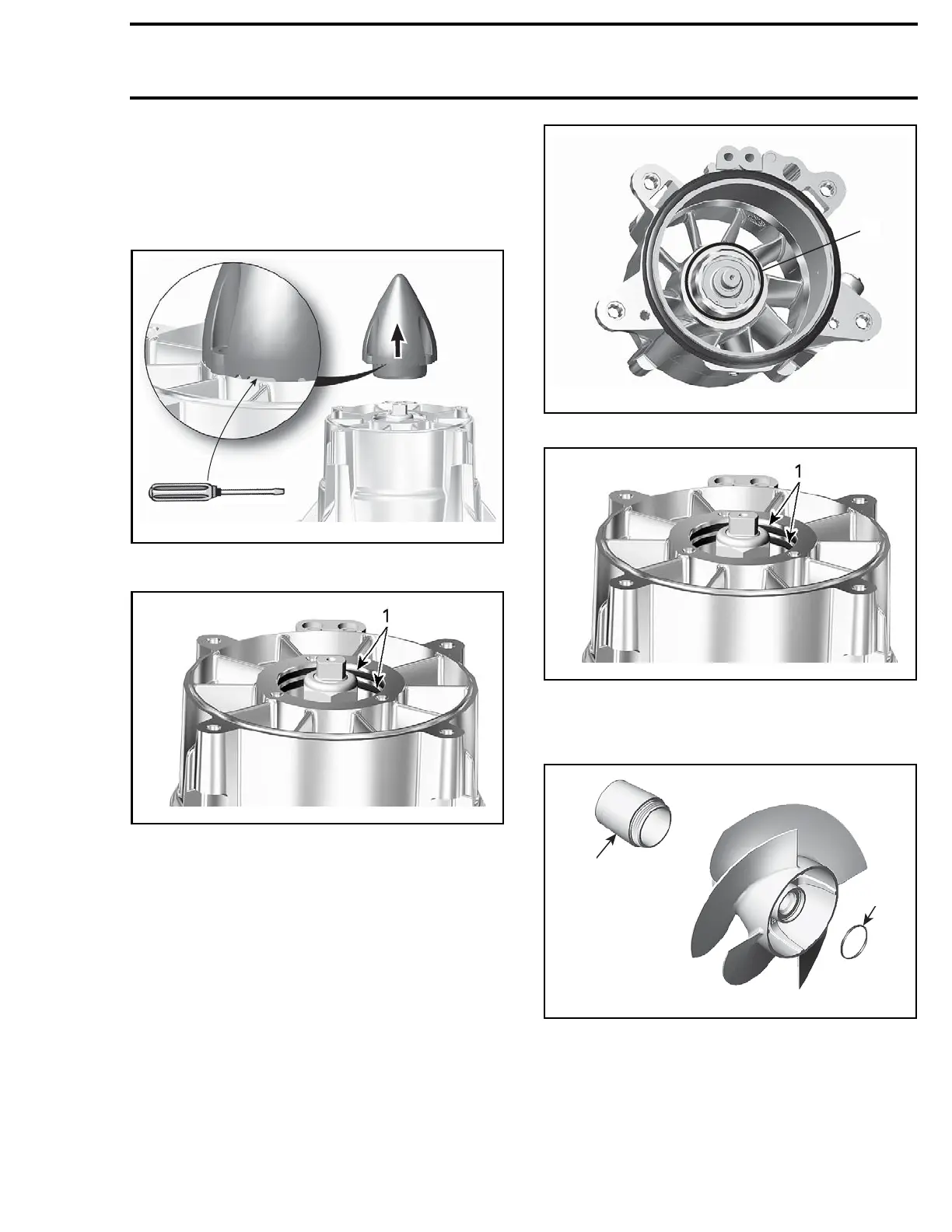

3. Using a fiber hammer, gently tap impeller c over
to help release it from the jet pump housing.
4. Use a flat screwdriver in the slots provided as
pry points to remove it from the jet pump hous-
ing.
smr2016-037-011_a
5. Remove b
oth cover O-rings.
smr2016-037-012_a
1. Cover O-rings
Inspecting the Impeller Cover
Check for presence of water in cover and bearing
area. If water is found, replace seals on impeller
side. Also replace O-rings and/or impeller cover.
1
smr2016-037-013_a
1. Seal on impeller side
smr2016-037-012_a
1. Cover O-rings
Check impeller boot and O-rings condition on im-
peller. Replace as required.
1
2
smr2
016-037-014_a
1. Impeller boot
2. Impeller O-ring
Per
form a leak test. Refer to
LEAK TEST
in this
sub
section.
Installing the Impeller Cover
1. App
ly a thin layer of grease in O-ring grooves.
219100963-019 191
