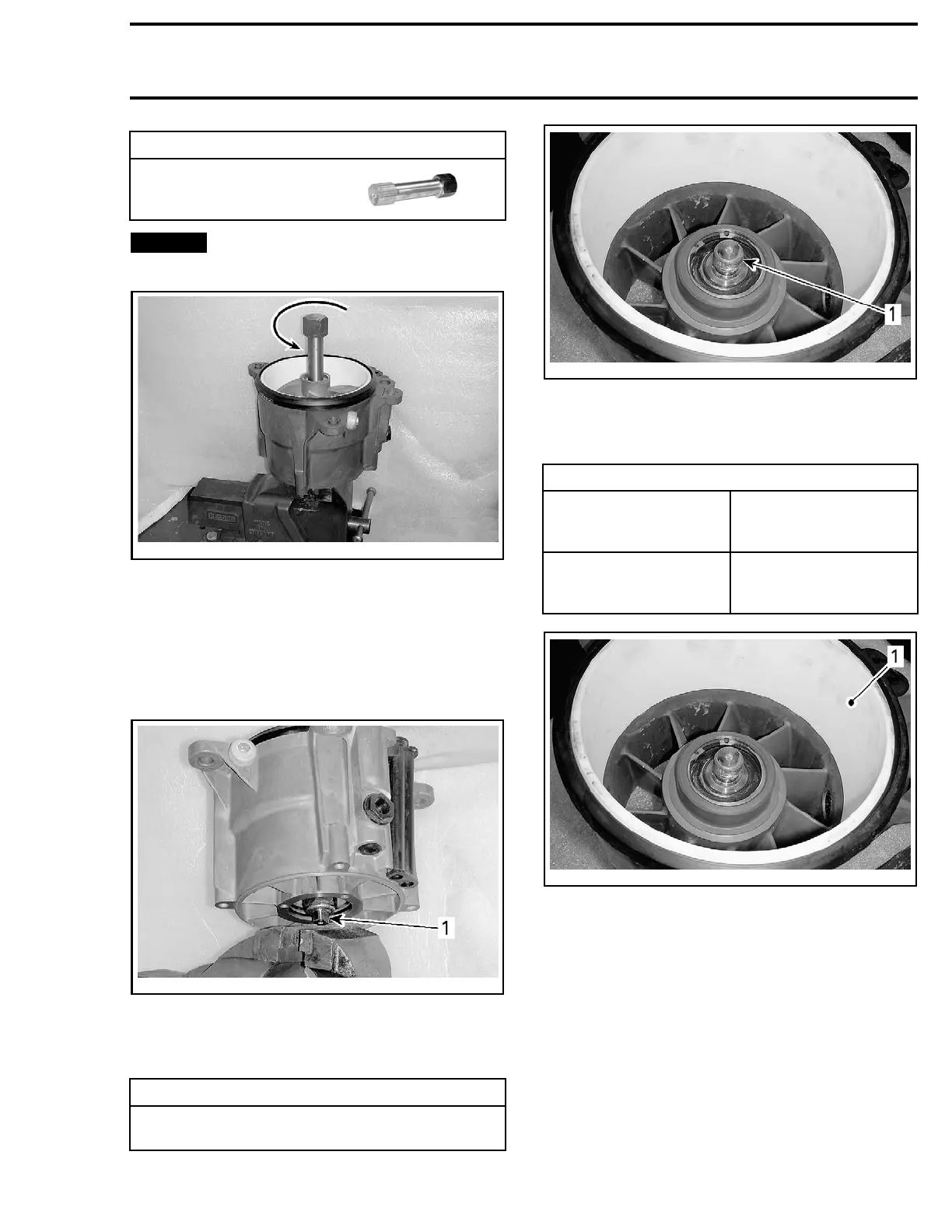

Section 06 ST EE RING AND PROPULSION
Subsection 03 (JET PUMP)
REQUIRED TOOL
IMPELLER
REMOVER/INST
ALLER
(P/N 529 035 956)
NOTICE
Never use an i
mpact wrench to
loosen impel
ler.
smr2009-006-006_b
TYPICAL
6. To pull impeller out of the pump, apply a rotating
movement as you pull on the impeller.
Installing the Impeller
1. Mount the flat sides of the impeller shaft in a
vise.
smr2009-006-005_a
TYPICAL
1. Flat
side
2. Apply antiseize lubricant on threads of impeller
shaft.
SERVICE PRODUCT
LOCTITE 767 (ANTI-SEIZE LUBRICANT)
(P/N 293 800 070)
smr2009-006-002_b
TYPICAL
1. Antiseize lubricant
3. Apply Lubricant and anti-corrosive on the wear
ring surface.
SERVICE PR
ODUCTS
Scandinav
ia
LUBRICANT AND
ANTI-CORR
OSIVE (EUR)
(P/N 779224)
All other countries
LUBRICANT
AND
ANTI-CORROSIVE
(P/N 779168)
smr2009-006-002_c
TYPICA
L
1. Spray XPS lube on this surface
4. Start screwing the impeller on its shaft.
219100963-019 193
